LZZW Series Miniature Metal Tube Variable Area Rotameter

The flowmeter operates on the float measuring principle. The measuring section consists of a metal cone in which a float can move freely up and down. The mudium flows through the flowmeter from bottom to top.

The variable area flowmeters are suitable for measuring gases, vapors and liquids with specialty of solid, steady and reliable. The flowmeter are available as inlet or outlet pressure regulator. It also select install 1 or 2 limit switches.

Product Description

Horizontal Connection

Vertical Connection Horizontal Connection with Limit Switch



Description Code

The description code consists of the following elements*:

①F10 without valve and vertical connection

    F12 with valve and horizontal connection

②RR1 Material 304

    RL Material316L

③K1 One upper limit switch

    K2 One lower limit switch

    K12 Two limit switches

* Positions which are not needed are omitted (no blank positions).


Technical data

Measuring Ranges

 Water (20℃) 0.3~ 100 L/h

 Air (20℃ 101325Pa) 5~3400 L/h

Measuring Span

 10:1

Accuracy

 4.0

Maximum Pressure

 2.5 MPa

Medium Temperature

 -80~+150℃

Ambient Temperature

 -25~ +65℃

Connection Type

 1/4"NPTF

Limit Switch

 1 or 2

Protection Category

 IP67

■Flow Table

Cones

Water (20L/h)

Air (20101325Pa L/h)

Maximum Pressure Loss (kPa)

K01

5〜50

1.2

K02

0.3 3

10 〜100

1.4

K03

0.5 5

15 〜150

1.5

K04

110

40〜400

1.8

K05

2.5 〜25

80〜800

3.5

K06

440

125 〜1250

6.5

K07

660

2002000

13.0

K08

8〜80

250〜2500

23.5

K09

10 〜100

340 〜3400

40.0



■Dimensions

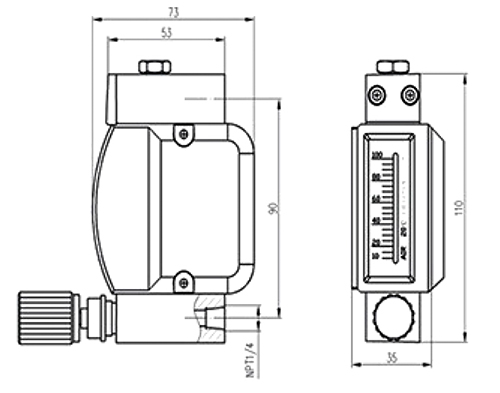

LZZW- F12(Horizontal Connection)

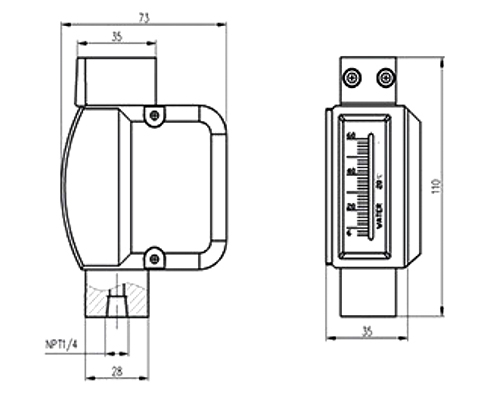

LZZW-F10(Vertical Connection)

■Materials of main parts

Parts

Standard

Special

Seating

304

316L or on request

Cone and Float

304

316L or on request

Indicator Housing

Aluminum Casting
