LZM-6T Medical Oxygen Flow Meter for Concentrator

LZM-6T O2 Oxygen Flowmeter for concentrator. This Flow Meters is mainly used for measuring and controlling the flow of oxygen in oxygen concentrator

Product Description

Quick Details

Place of Origin

Zhejiang China

Float

Agate ball

Connection

Tube or screw thread

Model NO.

LZM-6T O2

Fitting

Brass or SS or POM

Body

Acrylic

Medium

Oxygen. air

Customized Support

OEM, ODM, OBM

Max Temp.

60℃

Accuracy

±5%

Brand Name

ZYIA

Sealing Material

Fluorin rubber or EPDM



Introduce

LZM serial flow meter,which is made of Acrylic ,is used to measure the single-phase

Non-pulsating flux of liquid or gas.It is featured in beautiful look,low weight and durability.

LZM-6T O2  Oxygen Flow meter for concentrator.This Flow Meters is mainly used for measuring

and controlling the flow of oxygen in oxygen concentrator



Product Features

1) Low installation costs with easy mounting .

2) Long operation life with durable construction.

3) Precision molding enables high repeatability.

4) Green back on the flow tube allows for better visibility of the float increasing reading accuracy .

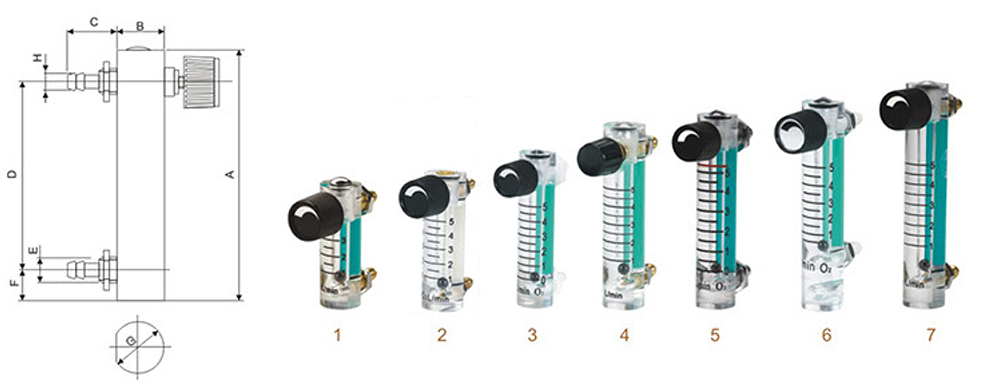

■Technical Parameters Of LZM-6T O2 Series Flow Meter

Model
No.
Range
(L/min)
Connection
Type
Accuracy
Size ( mm )
A
B
c
D
E
F
G
H
LZM-6T O2

1

1-3

Tube

±5%

60

20

21 or 19

40

M10X1 or 9/16-18

8

22

8

2

1-5

70

20

50

7

22

7

3

0-5

0-9

0-10

93

20

70

10

22

8

4

1-5

0-6

96

20

70

13

22

8

5

0-5 1-5

0.1-1

2-10

0.5-10

0.5-14

4-25

0-1000cc/min

106

20

80

13

22

8

6

2.5

0.5-10

2-10

108

20

70

25

22

8

7

0-5

1-5

2-10

0.5-14

115.5

20

90

13

22

8



■The material of LZM-6T2O Series Flow Meter

With valve

Valve

Fitting

Float

O-ring

T-With

O-No

√1. Brass

  2. SS

√ 1. Brass

   2. Brass chromeplate

3. SS

4. POM plastic

√1. Agate ball

   2. SS ball

√ 1. Fluorinrubber

    2. Butyl
