LZM-4T、6T、8T Acrylic with Control Valve Gas Panel Type Flow Meter

The LZM series flowmeter is a new type of flowmeter mainly composed of organic glass, used to measure single-phase non pulsating flow of liquids or gases. Its characteristics are beautiful appearance, high transparency, intuitive reading, light weight, easy installation, not easy to break, and long service life.

Product Description

Quick Details

Place of Origin

Zhejiang China

Float

SS316 Agate ball

Connection

Direct φ6 Hose Female Thread

Model NO.

LZM-4T 6T 8T

Fitting

1/4'' female

1/8'' female

Direct φ6

Body

Acrylic

Medium

Gas, Air, Water

Customized Support

OEM, ODM, OBM

Diameter

DN4mm,6mm,8mm

Accuracy

±4%

Brand Name

ZYIA

Valve

Brass Chromeplate

Working Pressure

≤ 1 Mpa

Max Temp.

60℃

O-ring

Silicon rubber



■Introduce

LZM--4T 6T 8T series flowmeters consists of two series of flowmeters suitable for both gas and liquid applications with advanced features at a low cost. There are front mounted metering valves. This scale compact flowmeter ideal for measuring small volume air and easy to read. It features bezel type mounting that can be quickly installed from the front of the instrument panel. It can be connected with hose or metal pipe.



■Product Features

1) Low installation costs with easy mounting .

2) Long operation life with durable construction.

3) Precision molding enables high repeatability.

4) White back on the flow tube allows for better visibility of the float increasing reading accuracy .

5) Side printed scale graduations allows for instantaneous flow reading saving time.

6) Compact bodies require minimal panel space freeing valuable space.

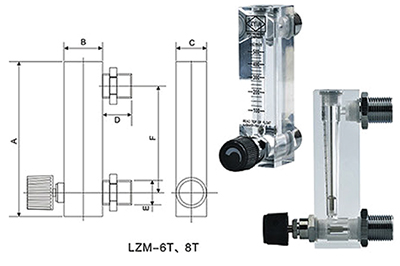

Outline Dimension (with regulator)

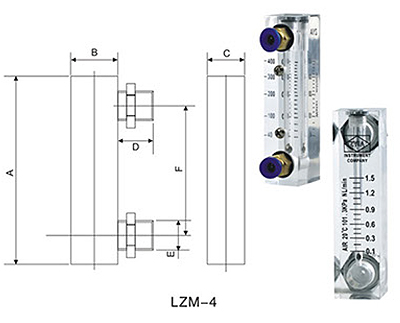

Outline Dimension (without regulator)

■Technical Parameters of LZM-4T、6T、8T Series Flow Meter

Model

Range

Screw

Thread

Accuracy

Size(mm)

Ml/min(Liquid)

L/min(Gas)

A

B

C

D

E

F

LZM-4T

6-60
8-80
30-120
40-400

0.05-0.5
0.25-2.5
1-5

0.1-1
0.6-6
1-10

0.2-2
1-4
1-12

Direct Ф6

±4%

94

27

21

14

14

70

LZM-6T

6-60







(F) 1/4"BSP

102

30

25

20

M18x1.5

77

10-70GPH

0.1-0.8

0.1-1.5

0.1-1

16-160

0.3-3

0.4-4

0.5-8

25-250

1-5

1-12

2-10

80-400

2-20

3-15

3-30

100-500

4-20

5-25

6-30

100-600

10-60

10-70

10-100

200-600

0.05-0.25m3/h

100-1000

0.04-0.4 m3/h

LZM-8T

2.5-25LPH

0.16-1.6m3/h

110

25

25

20

M18x1.5

80

5-45LPH

0.1-1 m3/h

6-60LPH

0.2-2 m3/h



■The material of LZM-4T、6T、8T Series Flow Meter

With Valve

Valve

Fitting

Float

O-ring

T-With

O-No

√1. Brass

  2. SS

   1. ABS

   2. PP

   3. PVC

   4. Brass

√5. Brass chromeplate

   6.SS

√1. SS

  2. Acrylic

  3. Agata ball

  4. PTFE

√ 1. Silicon rubber

   2. Fluorin rubber

   3. Butyl

Note: Mark with √,the material of the Flow Meter is the General Configuration.

The outline size of LZM-4T、6T、8T  Series Flow Meter

Model

Size(mm)

A

B

C

D

E

F

LZM-4T

94

27

21

14

14

70

LZM-6T

102

30

25

20

M18*1.5

77

LZM-8T

110

25

25

20

M18*1.5

80
