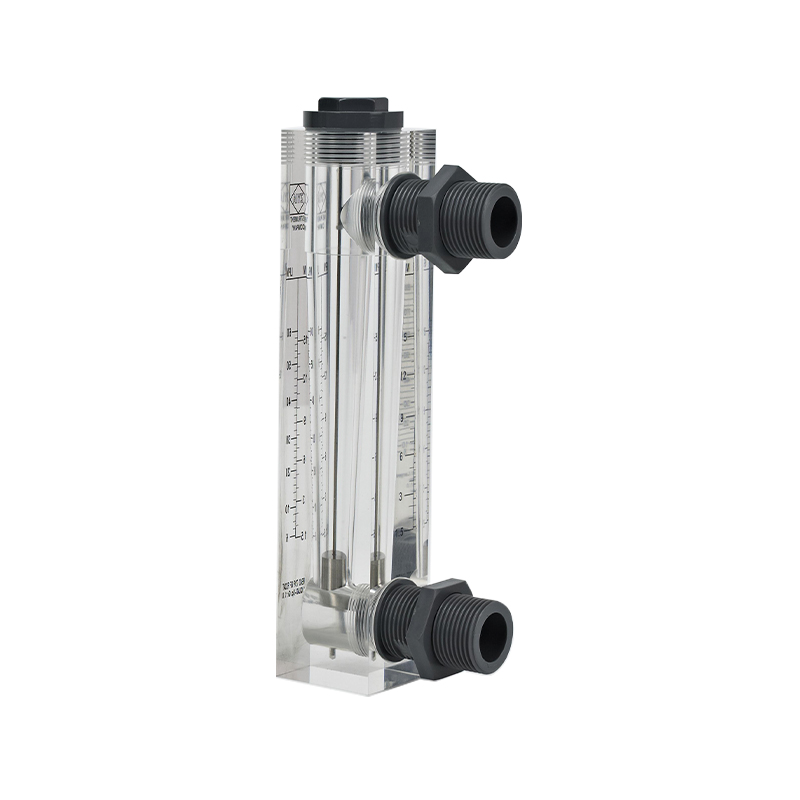

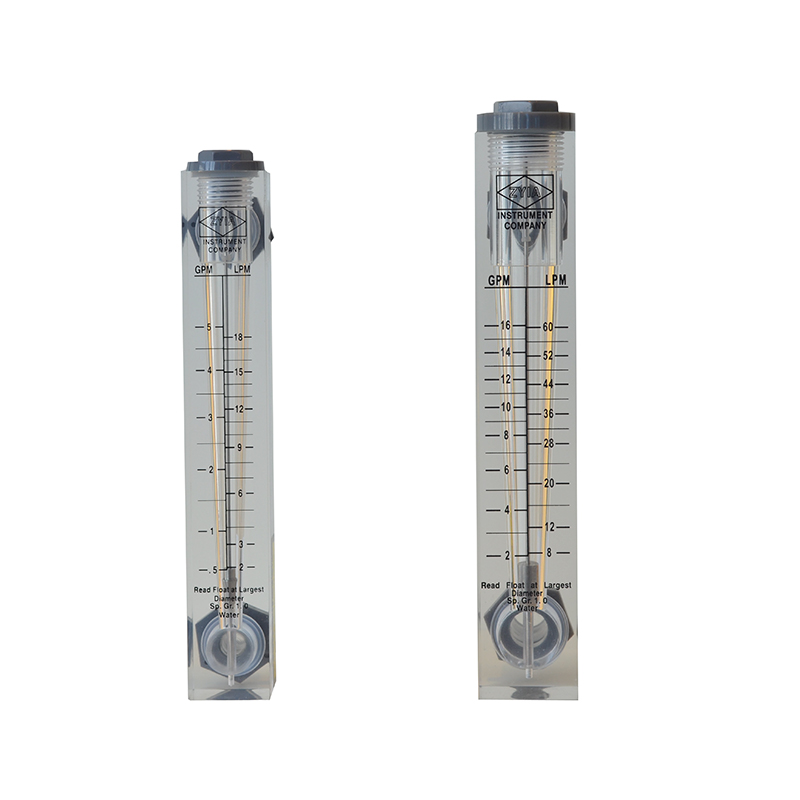

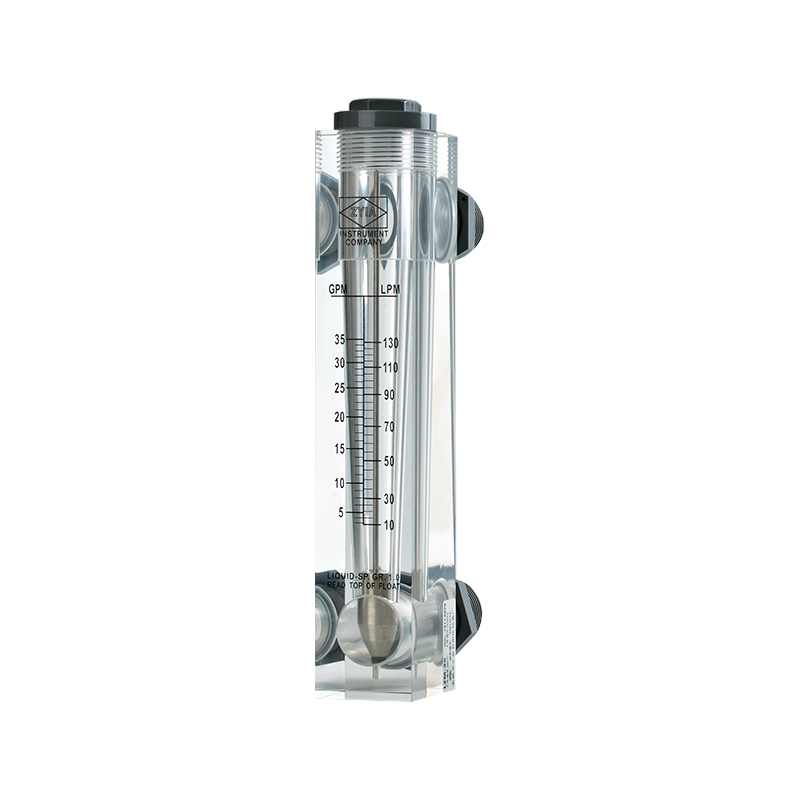

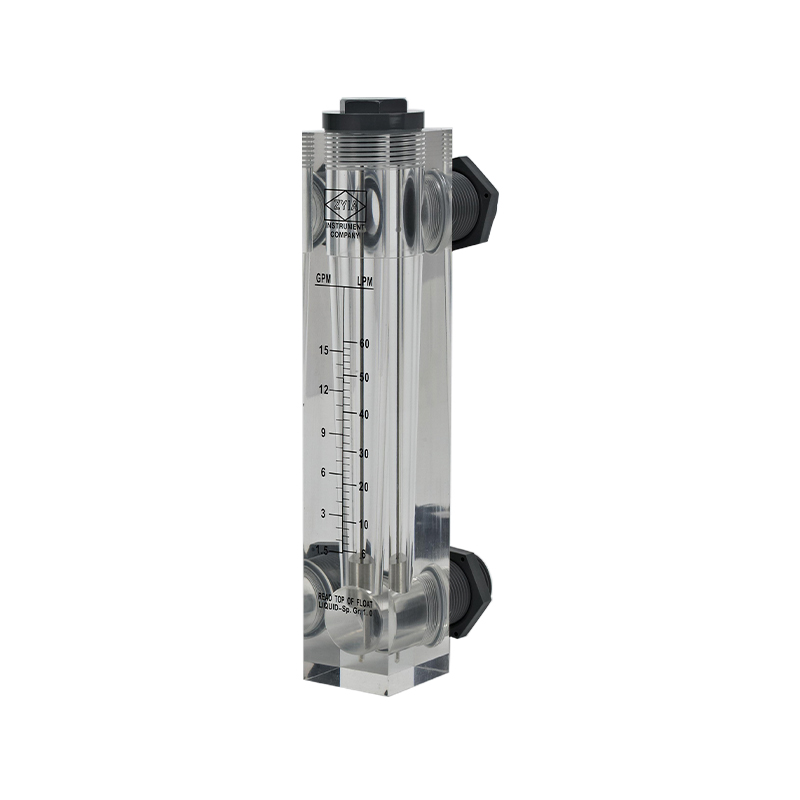

LZM-J Series Acrylic Flow Meter for Liquids or Gases

The LZM series flowmeter is a new type of flowmeter mainly composed of organic glass, used to measure single-phase non pulsating flow of liquids or gases. Its characteristics are beautiful appearance, high transparency, intuitive reading, light weight, easy installation, not easy to break, and long service life.

Product Description

Quick Details

Place of Origin

Zhejiang China

Float

SS316

Connection

Male Thread

Model NO.

LZM-J Series

Fitting

3/4'' male NPT/BSP

1/2'' male NPT/BSP

1'' male NPT/BSP

Body

Acrylic

Medium

Gas, Air, Water

Customized Support

OEM, ODM, OBM

Diameter

DN15mm,20mm, 25mm

Accuracy

±4%

Brand Name

ZYIA

Fitting

ABS

Working Pressure

≤ 1 Mpa

Max Temp.

60℃

O-ring

Silicon rubber



Introduce

LZM--J series flowmeter has lengthen,which is installed on the panel,the customer will fix it by hexagonal nut the fitting.

The measure range of LZM Series is the same.



Product Features

1)Clear scale,transparent display,clear value.

2)High accuracy adjustable button.Wear resistant,high quality stainless steel valve body,easy to use,convenient.

3)Threading connection.

4)Easy installation,easy operation(customized materials available).

■Technical Parameters of LZM-J Series Panel Type Flow Meter

Model

Range

Screw

Thread

Accuracy

Size ( mm )

GPM(Liquid)

LPM(Liquid)

Nm3/h(Gas)

A

B

c

D

E

G

H

I

LZM-15J

0.1-1

0.5-4

1-10   1.6-16

2.5-25   4-40

(M)1/2“NPT
(M)1/2“BSP

±4%

216

32

206

37

33

1/2“

165

30

0.2-2

0.8-8

0.3-3

1-11

0.5-5

2-18

1-7

2-28

1.5-9

400-2000LPH

LZM-20J

2-10

8-40

2.5-25   6-60

16-60   16-160

(M)3/4“NPT
(M) 3/4“BSP

233

39

220

44

49

3/4“

165

32

2-16

8-60

2-20

8-80

LZM-25J

1.5-15

6-60

20-200

25 -250

(M)1“NPT
(M)1“BSP

253

44

240

50

48

1“

175

40

3-13

10-50

4-24

10-100

5-35

10-130

5-45

20-170



■The material of the LZM-series Flow Meter

Fitting

Float

O-ring

   1. ABS

   2. PP

√3. PVC

   4. Brass

   5. Brass chromeplate

   6. SS

√1. SS

   2. Agata ball

   3. PTFE

√1. Silicon rubber

   2. Fluorin rubber

   3. Butyl

Note: Mark with √, the material of the Flow Meter is the General Configuration.

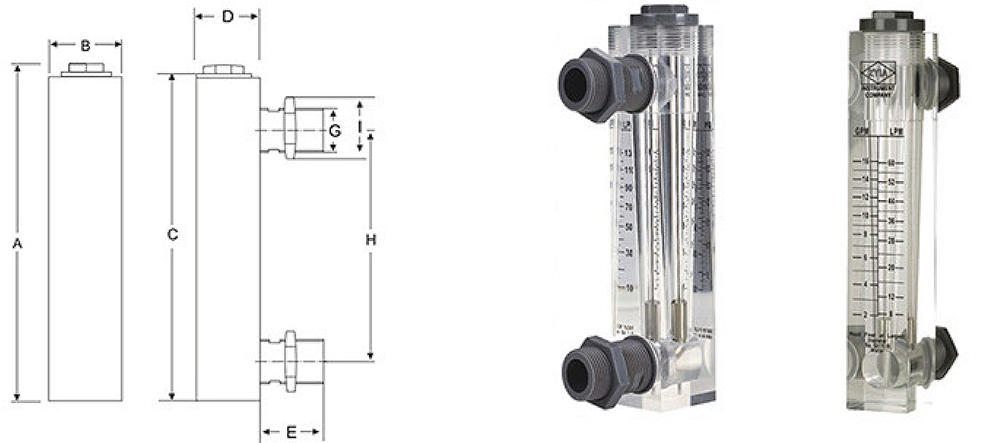

The outline size of LZM - J  Series Flow Meter

Model

Size(mm)

A

B

C

D

E

G

H

I

LZM-15J

216

32

206

37

33

1/2”

165

30

LZM-20J

233

39

220

44

49

3/4”

165

32

LZM-25J

253

44

240

50

48

1”

175

40
