Quick Details
Place of Origin |
Zhejiang China |
Flout |
SS316 Agate bal |
Thread |
1/4” BSP |
Model NO. |
AFM-6T |
Fitting |
Female |
Tube |
Durable acrylic |
Medium |
Gas, air, water chemical medium |
Customized Support |
OEM, ODM, OBM |
Diameter |
DN6MM |
Accuracy |
±4% |
Brand Name |
ZYIA |
Valve |
Brass |
Working Pressure |
≤1 Mpa |
Type |
Variable Area Air&Gas Flow meters, Variable Area Water |
O-ring |
Silicon rubber |
Introduce

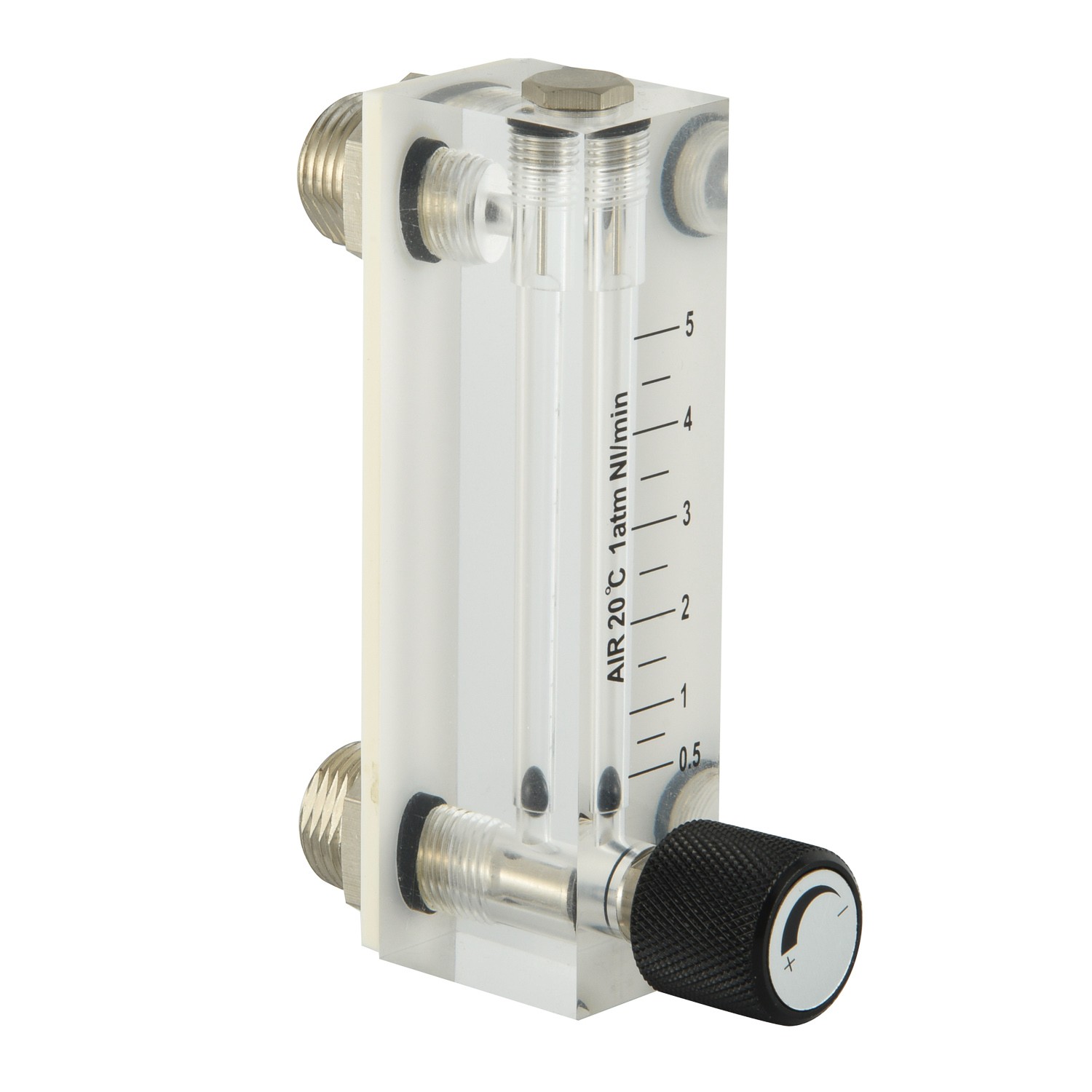

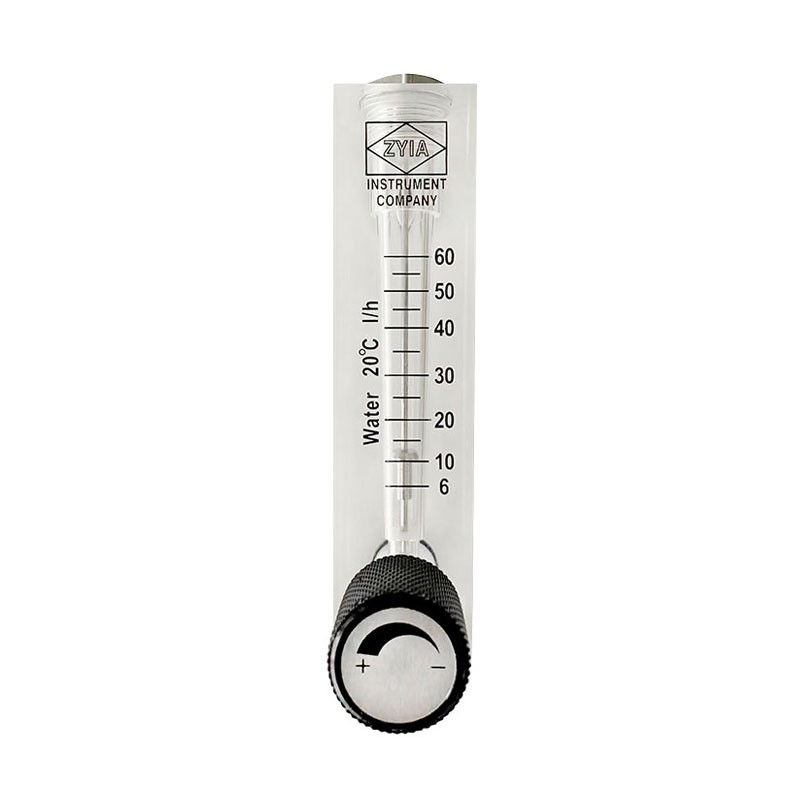

AFM-6T series flowmeters consist of two series of flowmeters suitable for both gas and liquid applications with advanced features at a low cost. There
are front-mounted metering valves. This scale compact flowmeter is ideal for measuring small-volume air and is easy to read. It features bezel-type mounting
that can be quickly installed from the front of the instrument panel. It can be connected with a hose or metal pipe.
Product Features:
1) Low installation costs with easy mounting.
2) Long operation life with durable construction.
3) Precision molding enables high repeatability.
4) White back on the flow tube allows for better visibility of the flout increasing reading accuracy.
5) Compact bodies require minimal panel space freeing valuable space.
Model |
Size(mm) |
||||||||
A |
B |
C |
D |
E |
F |
||||
AFM-6T |
102 |
33 |
25 |
47 |
105.5 |
77 |
Model |
Range |
Screw Thread |
Accuracy |
||||||
Liquid (ML/Min) |
Gas (L/Min) |
||||||||
AFM-6T |
6-60 16-160 25-250 80-400 100-500 100-600 200-800 100-1000 2-20l/h 4-40l/h 6-60l/h 10-100l/h 10-70GPH 0.1-1GPM |
0.1-0.8 0.1-1.5 0.1-1 0.3-3 0.4-4 0.5-8 1-5 1-12 2-10 2-20 3-15 3-30 4-20 5-25 6-30 10-60 10-70 10-100 0.05-0.25m3/h0.04-0.4m3/h 1-10SCFH/0.5-5LPM 2-20SCFH/1-10LPM 4-40SCFH/2-20LPM 8-80SCFH/4-40LPM 10-100SCFH/5-50LPM 20-200SCFH/10-100LPM |
(F)1/4" BSP (F)1/4"BSPT |
±4% |
