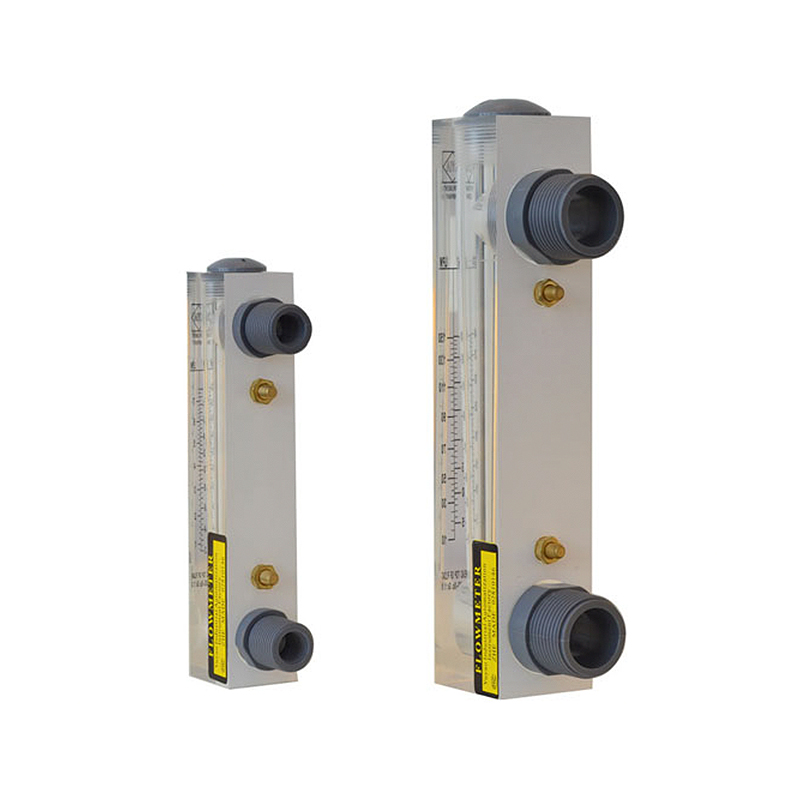

LZM Series Small Flow RO Water Flow Meter

The LZM series flowmeter is a new type of flowmeter mainly composed of organic glass, used to measure single-phase non pulsating flow of liquids or gases. Its characteristics are beautiful appearance, high transparency, intuitive reading, light weight, easy installation, not easy to break, and long service life.

Product Description

Quick Details

Place of Origin

Zhejiang China

Float

SS316

Connection

Male Thread  Female Thread

Model NO.

LZM-Z Series

Fitting

1/4'' male

1/2'' male

1'' male

Body

Acrylic

Medium

Gas, Air, Water

Customized Support

OEM, ODM, OBM

Diameter

DN15mm,25mm

Accuracy

±4%

Brand Name

ZYIA

Fitting

ABS

Working Pressure

≤ 1 Mpa

Max Temp.

60℃

O-ring

Silicon rubber



Introduce

LZM--Z series flowmeter is suitable for both gas and liquid, it featured in beautiful look. With semicircle fittings and white colored type, and there are two screws can easily installed on panel.



Product Features

1) White back on the flow tube allows for better visibility of the float increasing reading accuracy .

2) Long operation life with durable construction.

3) OEM logo print,customize size and ranges

4) Calibrated for any kinds of gas



■Technical Para meters of LZM-Z Series Flow Meter

Model

Range

Screw

Thread

Accuracy

Size ( mm )

GPM(Liquid)

LPM(Liquid)

Nm3/h(Gas)

A

B

c

D

E

F

G

H

LZM-15ZA



15-150LPH

0.1-1   0.16-1.6

0.3-3   0.4-4

(M)1/2” BSPT
(F) 1/4” BSPT

±4%

157

32

150

35

25

60

25

110

LZM-15Z



10-100LPH

16-160LPH

25-250LPH

0.04-0.4   0.1-1

0.16-1.6   0.3-3

0.25-2.5   0.4-4

0.6-6   0.8-8

1-10   1.6-16

1.8-18   2-20

2.5-25   3-30

4-40

(M) 1/2” BSPT
(F) 1/4” BSPT

175

32

168

35

25

76

25

127

0.03-0.35

0.1-1.4

0.05-0.5

0.2-1.8

0.1-1

0.5-4

0.15-1.5

0.6-6

0.2-2

1-7

0.3-3

1-11

0.5-5

2-18

LZM-25Z

1-10

5-35

2.5-15   2.5-25

4-40   6-60

10-100   20-100

16-160   25-250

30-300   35-350

(M) 1” BSPT

234

45

226

46

33

100

37

160

1-15

5-50

2-14

10-50

2-20

10-70

5-35

10-130

5-40

10-150

5-45

10-170



0.3-2.1 m3/h

 0.6-3 m3/h

0.6-4.2 m3/h



■The material of LZM-Z Series Flow Meter

Fitting

Float

O-ring

   1. ABS

   2. PP

√3. PVC

4. Brass

5. Brass chromeplate

6. SS

√1. SS

√1. Silicon rubber

   2. Fluorin rubber

   3. Butyl

Note: Mark with √, the material of the Flow Meter is the General Configuration.

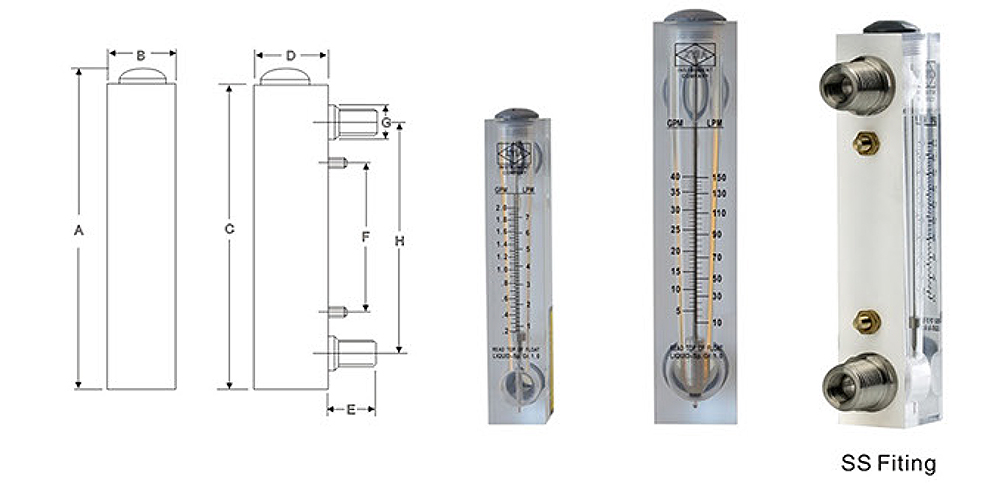

The outline size of LZM - Z  Series Flow Meter



Model

Size(mm)

A

B

C

D

E

F

G

H

LZM-15ZA

157

32

150

35

25

60

25

110

LZM-15Z

175

32

168

35

25

76

25

127

LZM-25Z

234

45

226

46

33

100

37

160
