Remote 4-20mA Stainless Steel Milk Flow Meter-Yuyao Kingtai Instrument Co.,LTD.

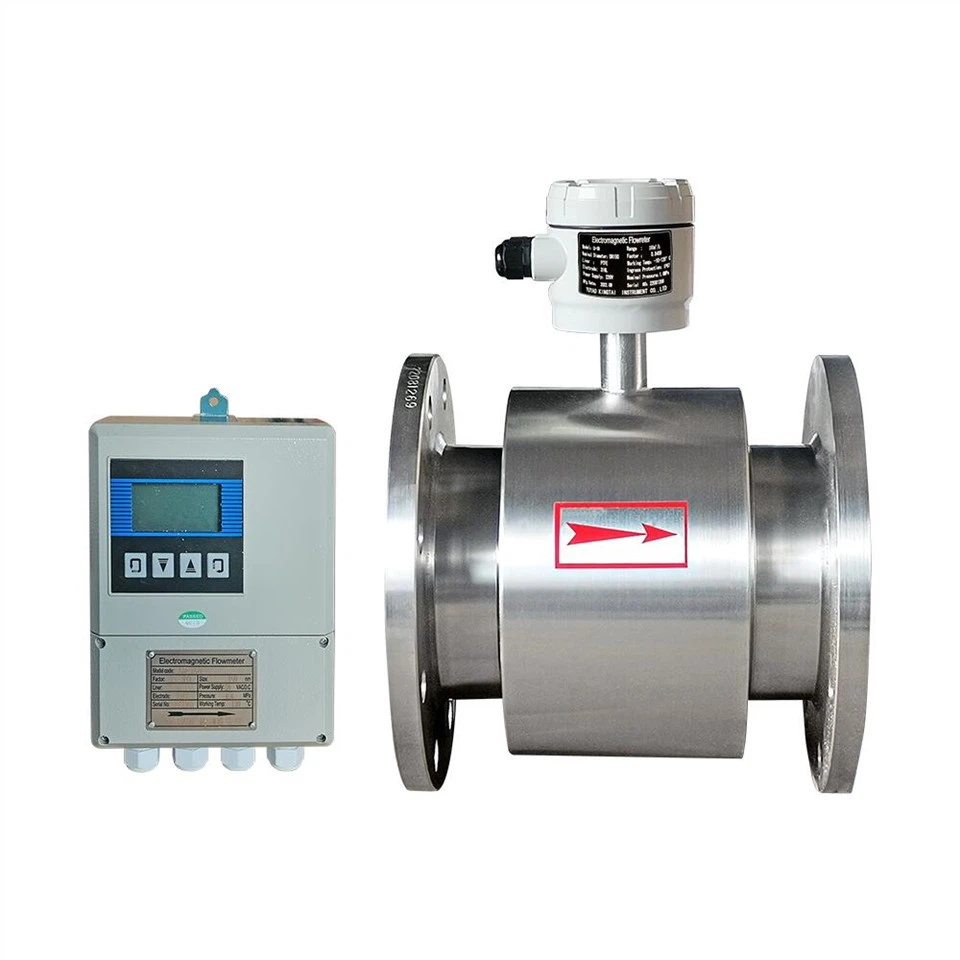

Electromagnetic flowmeter is only applicable to measure the flow of conductive liquid, which is wide used in water supply, sewage water measuring, industry chemical measuring etc. The remote type is with high IP protection class and can be installed in different locations for the transmitter and converter. Output signal can pulse,4-20mA or with RS485 communication.

■Flow Selection Table

Caliber(mm)	Minimum Flow Options (m³/h)	Common choice of full scale flow range options (m³/h)
10	0.10	0.4,0.5,0.6,0.8,1.0,1.2,1.6,2.0,2.5
15	0.20	1.0,1.2,1.6,2.0,2.5,3.0,4.0.5,0.60
20	0.35	2.0,2.5,3.0,4.0,5.0,6.0,8.0,10.0,12.0
25	0.55	3.0,4.0,5.0,6,0.8,0.10,0.12,0.14.0,16.0
32	1.0	5.0,6.0,8.0.,10.0,12,16,20,25
40	1.5	8.0,10.0,12,16,20,25,30,40
50	2.5	12,16,20,25,30,40,50,60,70
65	4.0	20,25,30,40,50,60,80,100,120
80	5.5	25,30,40,50,60,80,100,120,160
100	8.5	40,50,60,80,100,120,160,200,250
125	14	60,80,100,120,160,200,250,300,400,500,600
150	20	100,120,160,200,250,300,400,500,600
200	35	160,200,250,300,400,500,600,800,1000
250	55	200,250,300,400,500,600,800,1000,1200,1600
300	80	300,400,500,600,800,1000,1200,1600,2000,2500
350	105	400,500,600,800,1000,1200,1600,2000,2500,3000
400	135	500,600,800,1000,1200,1600,2000,2500,3000,4000
450	175	600,800,1000,1200,1600,2000,2500,3000,4000,5000
500	215	800,1000,1200,1600,2000,2500,3000,4000,5000,6000
600	305	1000,1200,1600,2000,2500,3000,4000,5000,6000,1000
700	415	1200,1600,2000,2500,3000,4000,5000,6000,10000,12000
800	545	1600,2000,2500,3000,4000,5000,6000,10000,12000,16000
900	690	2000,2500,3000,4000,5000,6000,10000,12000,16000,20000
1000	850	2500,3000,4000,5000,6000,10000,12000,16000,20000,25000
1200	1250	6000,10000,20000,30000,40000,50000
1400	1700	8000,10000,20000,30000,40000,50000
1600	2500	10000,20000,30000,40000,50000,65000
1800	3000	15000,20000,30000,40000,50000,60000,70000,80000
2000	3500	20000,40000,60000,80000,100000
2200	4000	20000,40000,60000,80000,100000,120000

■Dimension (See diagram and drawing below)

Diameter(mm)	A	D	DO	n-Ф
10	200	90	60	4X14
15	200	95	65	4X14
20	200	105	75	4X14
25	200	115	85	4X14
32	200	140	100	4X18
40	200	150	110	4X18
50	200	165	125	4X18
65	250	175	145	8X18
80	250	200	160	8X18
100	250	220	180	8X18
125	250	250	210	8X18
150	300	285	240	8X22
200	350	340	295	8X22
250	400	395	350	12X22
300	460	445	400	12X22
350	460	505	460	16X26
400	600	565	515	16X26
450	600	615	565	20X26
500	600	670	620	20X26
600	600	780	725	20X30
700	600	895	840	20X30
800	800	1015	950	24X33
900	900	1115	1050	24X33
1000	1000	1230	1160	28X33
1200	1200	1405	1340	28x36
1400	1400	1630	1560	32X36
1600	1600	1830	1760	36X36
1800	1800	2045	1970	36X36
2000	2000	2265	2180	48X42
2200	2200	2405	2315	52X45

■Location of installation

In order to enable a reliable flow meter, Pls note the following installation requirements:
1. As far as possible to avoid ferromagnetic objects and equipment with strong magnetic fields(big electric machine, big transformer) is protect of the magnetic field sensor.
2. lt should be installed in the ventilation in the dry, avoid moist and stagnant water.
3. lt should be avoided solarization and rain, To avoid environment temperature higher than 60℃ and humidity more than 95%
4. Flow meter should be enough space around for easy installation and Maintenance.
5. Flow meter must be installed at the outlet of the pump. valve should be installed at downstream of the flow meter.

China International Medical Equipment Fair

06 Mar, 2025

China International Medical Equipment Fair Time: 2025.4.08-11 Location: National Exhibition and Convention Center (Shanghai) Booth number: 8.1F18 Yuyao Kingtai Instrument Co., Ltd. specializes in ...

Aouatech Amsterdam The World's Largest Exhibition On Water

06 Mar, 2025

World's Leading Trade Exhibition For Process, Drinking & Wastewater Time: 11-14 MAR 2025 Location: Amsterdam Booth number: 01.622 Yuyao Kingtai Instrument Co., Ltd. specializes in the product...

Invitation to the 9th Guangdong International Water Treatment Technology and Equipment Exhibition

28 Feb, 2025

Time: March 5-7, 2025 Location: Poly World Trade Center, Guangzhou Booth number: 1H2018 Yuyao Kingtai Instrument Co., Ltd. specializes in the production of industrial automation instruments, the m...

Wide range of flow measurement applications

06 Feb, 2023

Flow measurement is widely used in various fields of industrial and agricultural production, national defense construction, scientific research, foreign trade, and people's lives. In the petroleum ind...

How to read the flow reading of the glass rotameter?

06 Feb, 2023

Eyes are flush. Read the scale on the upper plane of the rotor, starting from the 0 scale direction. The data read on the glass rotameter is the instantaneous flow, either the volume flow or the mass ...

Functions and characteristics of glass rotameter how to select glass rotameter

06 Feb, 2023

Glass is often used in occasions with certain requirements for light and color, such as optical instruments and various artistic decorations, because it has light transmission and reflection, and is e...

Briefly introduce the measurement objects of glass rotameter

06 Feb, 2023

The main measuring elements of the glass rotor flowmeter are a vertically installed lower small and upper large conical glass tube and a flout that can move up and down. Generally speaking, in flow me...

Diameter	DN10mm-DN2200mm
Electrode	316L, Hc, Ti, Ta, Pt
Liner	Rubber, PTFE, PFA
Medium	Conductivity liquids
Medium conductivity	≥5μ s/cm
Accuracy	±0.5%RS
Working temperature	-25°C~150°C
Working pressure	1.0MPa
Connection standard	ANSI150, DIN JIS 10K
Output	4-20mA/frequency/pulse
Power supply	85~265VAC (50HZ or 60HZ) /24VDC
Installation type	Compact, remote
Protection	IP68

Excitation	Low-frequency square-wave exciting exciting frequency 1/16 power frequency,1/20 power frequency, 1/25 power frequency, High - frequency square-wave exciting exciting frequency 1/2 power frequency for grouting liquid measure; Exciting current can be selected for 125mAa 187.5mAa 250mAa 500mA
Digital communication port and protocol	MODBUS interface: format of RTU, RS485 HART interface: designed by the standard of HART, if you choose our handheld unit, you can display the measured value online, and set the parameters.
Low Flow Cutoff	0 to 599.99%
Damping	1-64

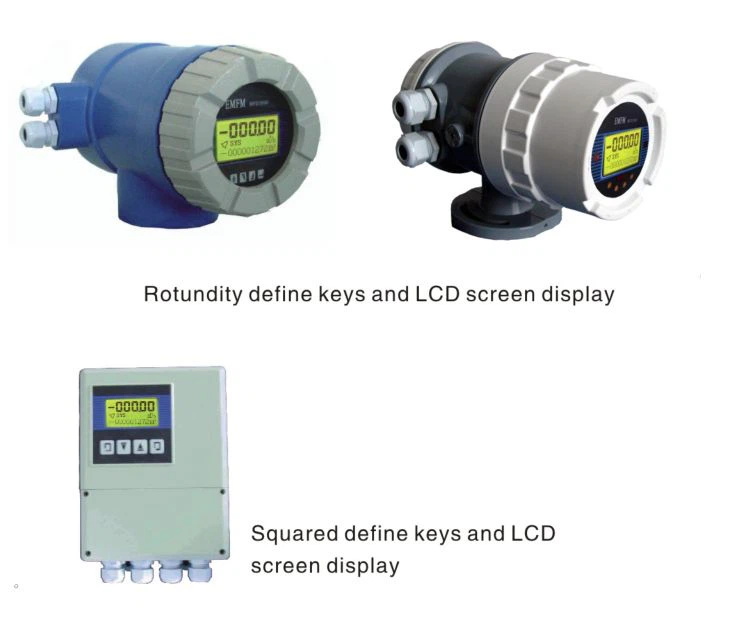

L Mag 4Keys and display
Self Diagnosis	The following trouble can be addressed correctly; FQH - Flow high limit alarm; FQL - Flow low limit alarm; GP - Flow empty pipe alarm; SYS - System exciting alarm
Measuring Range	0 to15m/s
Velocity	0.5mm/s
Repeatability	+/-0.1% of reading
Current output	4-20Ma(Isolated)
Load	Max.750Ω
Basic Errors	0.1% ±10μA
Pulse output	Output by field-effect transistors, the highest subjected voltage is 36VDC maximum of output current is 250mA.
Pulse Rate	Frequency range:15000Hz; Pulse output range:0-100pulse/s(When higher than upper limit, pulse will lose); Pulse output value:0.001-1.000m3/cp 0.001-1.000Ltr/cp
Pulse output width	50ms
Alarm output	Alarm output junction ALMH - upper limit; ALML - lower limit; Alarm output drive:output by Darlington pipe, the highest subjected voltage is 36VDC maximum of output current is 250mA
Cable Entry	2-M20*1.5, 1/2NPT (Option)
Protection Class	IP65, IP67(Option), IP68(Battery power supply)
Ambient Temperature	-10 to +65 ℃
Power Supply	80-250Vac, 45-63 Hz(single-phase AC), 24Vdc (20VDC-36VDC),Battery
Power Consumption	< 20W (After connecting the sensor)
