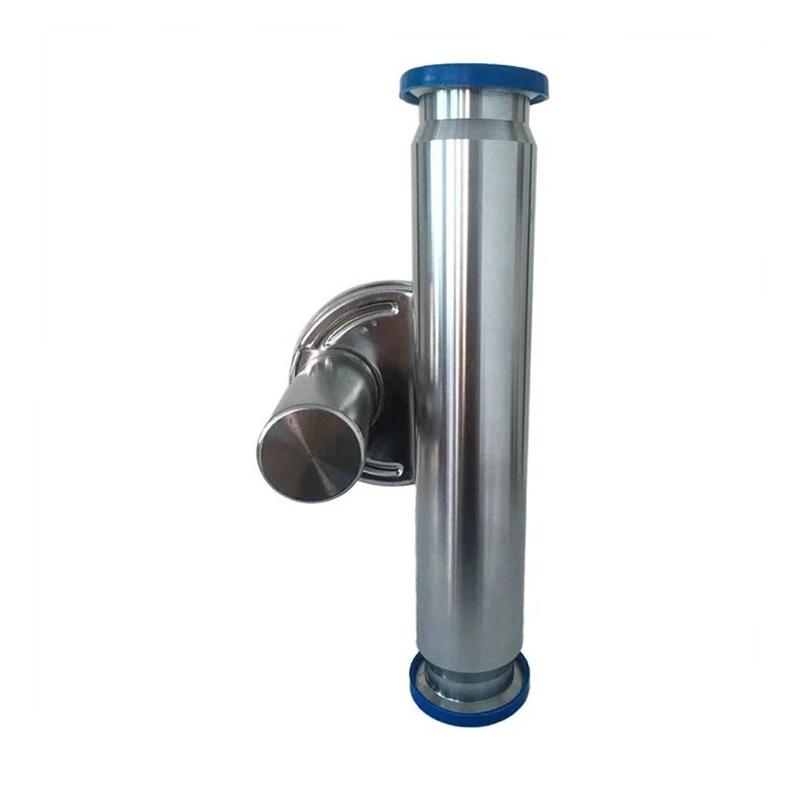

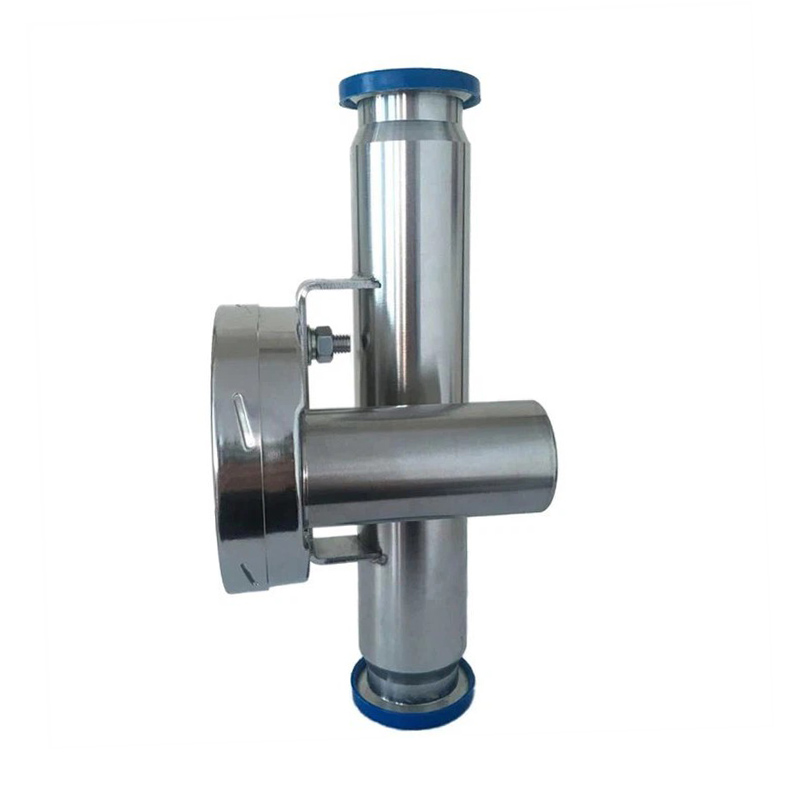

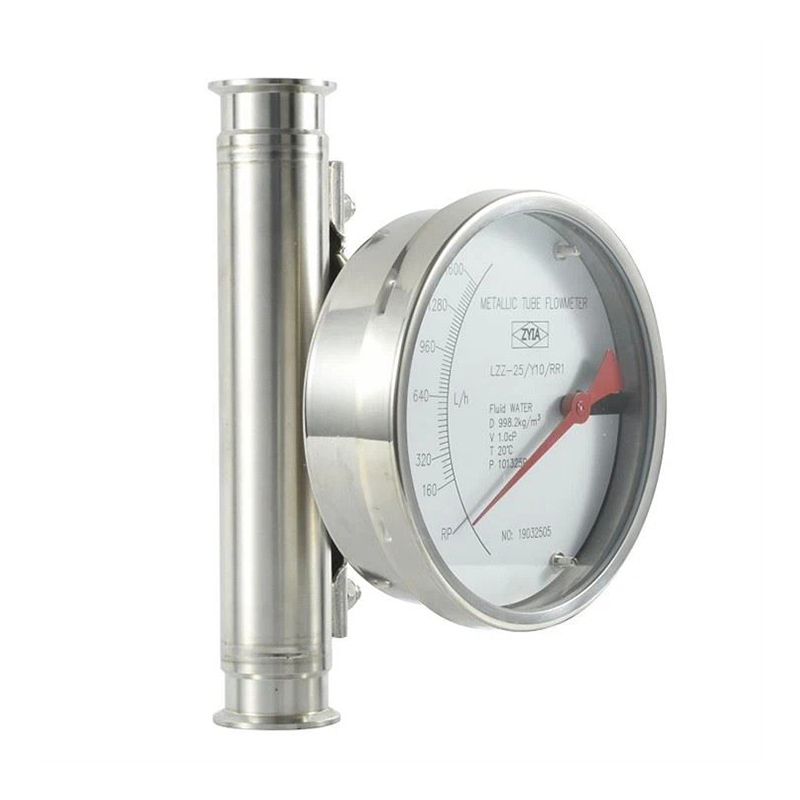

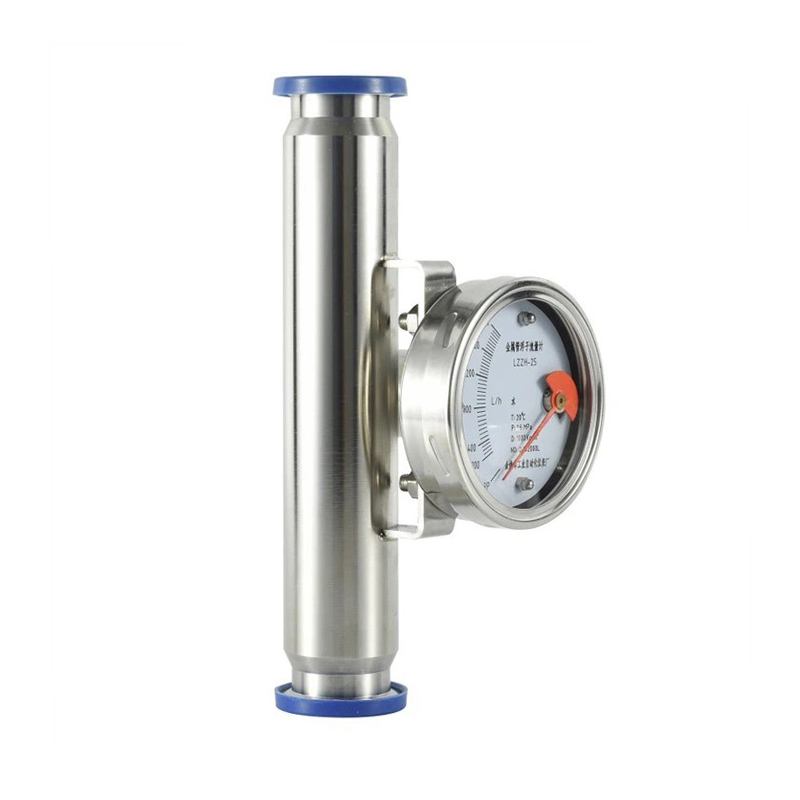

High Temperature Flow Meter

LZ series variable-area flow meter with metallic tube has the characteristics of simplicity, reliability wide application field, high precision and easy installation.

Product Description

■Quick Details

Place of Origin

Zhejiang China

Pressure

4.0mpa

Flange

ANSI150lbs or JIN10K or DIN

Model NO.

LZ Series

Max Temp.

250℃

Application

Waste water, agriculture, food and so on

Medium

Water or gas or milk or oil

Customized Support

OEM, ODM, OBM

Material

Stainless steel 304 or Stainless steel 316

Accuracy

±1.5%

Brand Name

ZYIA

Sample

Available

■Introduce

LZ series variable-area flow meter with metallic tube has the characteristics of simplicity, reliability wide application field, high precision and easy installation. Compared variable-area flow meter with glass tube flow meter, this series has the characteristics of high pressure safe, high temperature safe, easy reading etc.

It is widely applicable in petrol, chemical, power supply, pharmacy, food, water treatment industry etc.

■Features

1. Wide range, 10:1

2. Low pressure loss, compared with turbine flowmeters and vortex flowmeter, the pressure loss is less and the measurement is more accurate

3. Magnetic coupling, the use of a new type of magnetic coupling structure, coupled with a solid and stable all-meter structure, makes the signal transmission more stable.

■Main Technical Parameters

Measure Range

Water(20℃)(2.5-10000)L/h

Range Ratio

10:1

Accuracy Grade

±1.5%,±2.5%

Fluid Working Pressure

DN15-DN50: 4.0Mpa
DN80-DN150: 1.6Mpa

Working Pressure of Coating

1.6Mpa

Fluid Working Temperature

-80℃-+200℃(PTFE≤+85℃
(For Model PTFE ≤+85℃)

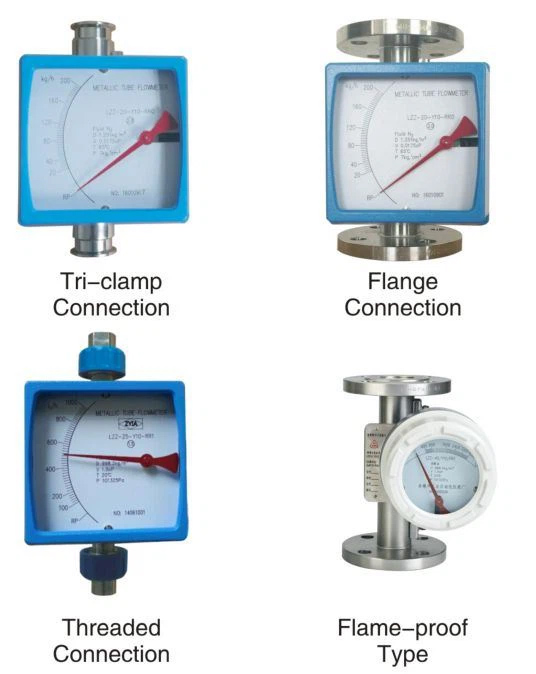

Connection Type

(Flange connection, Threaded connection or Tri-clamp connection flange refer to standard GB/T9119; ANSI 150lbs, 300lbs; HG20592-20635; Other standard flange can be made to the user requirement.)

Environment Temperature

-25℃-+55℃

Medium Viscidity

DN15≤5mPa.S;
DN25-DN100≤250m Pa.S

Electricity Singal Output

Output Signal: (4-20mA)

Linear Accuracy: 1%

Temperature Influence: 0.5%/10℃

Power Supply: (13-30)VDC

Power Supply Consume: ≤250mW

Restrict Alarm

Power Supply: ≤24(±10%)VDC

Power Loss: ≤3W

Working Temperature: -25℃-+60℃

Explosion-Proof Gr

EXIbIICT5

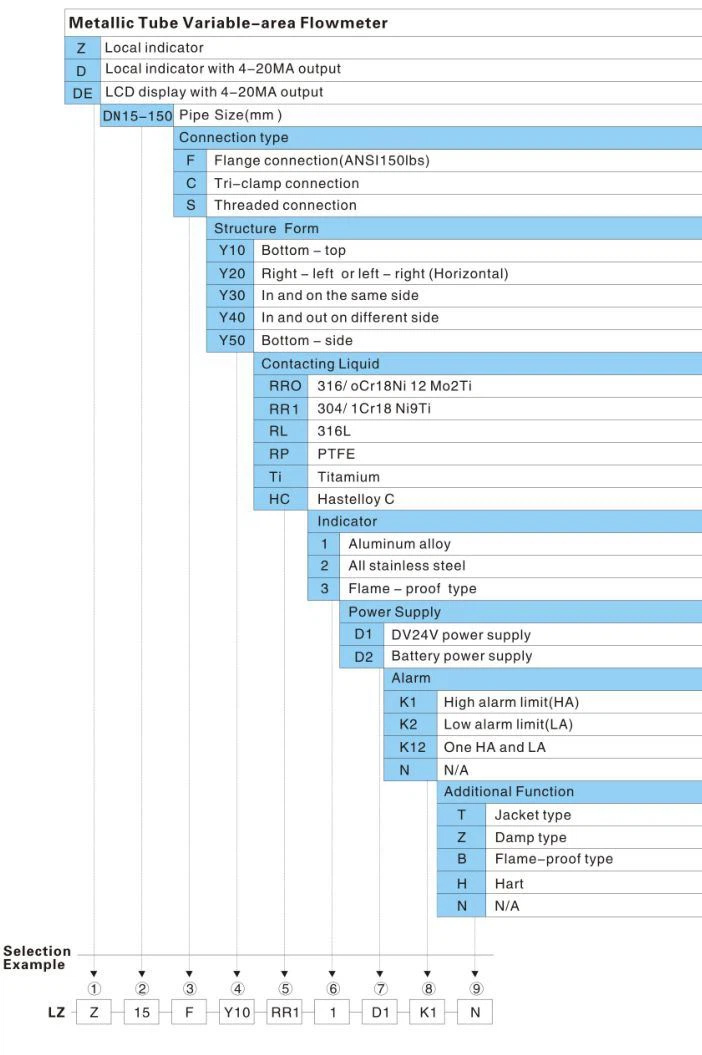

■LZ Series Model Selection
