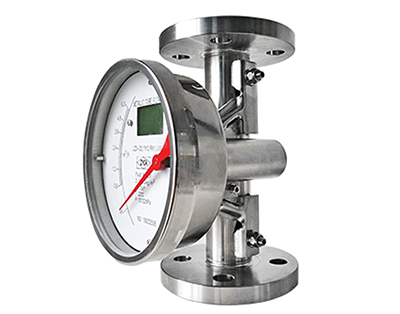

LZ Series High Temperature Chemical Sanitary Stainless Water Flow Meter

General:

LZ series variable-area flowmeter with metallic measuring tube has the characteristics of simplicity, reliability, wide application field, high precision and easy installation. Compared variable-area flowmeter with glass tube flow meter, this series has the characteristics of high pressure safe, high temperature safe, easy reading etc.

It is widely applicable in petrol, chemical, power supply, pharmacy, food, water treatment industry etc.



Product Description

Connection Type

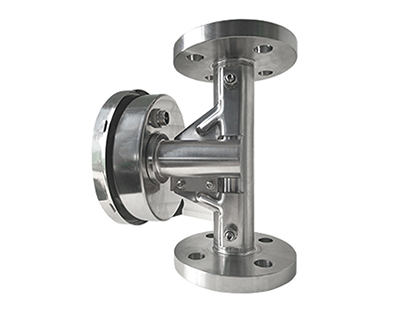

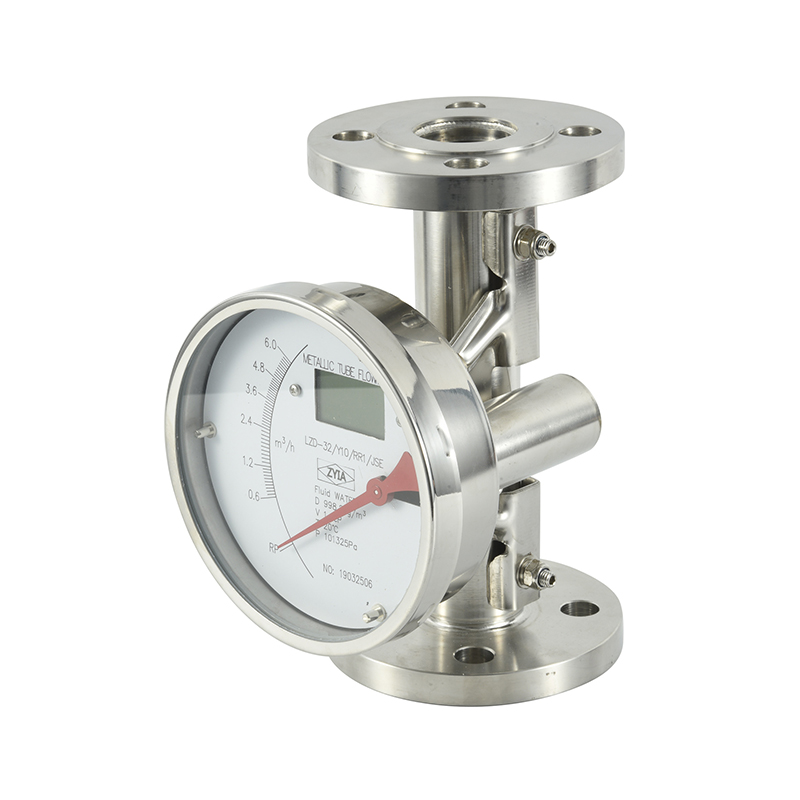

Flange Connection

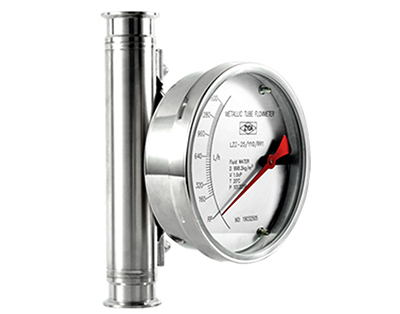

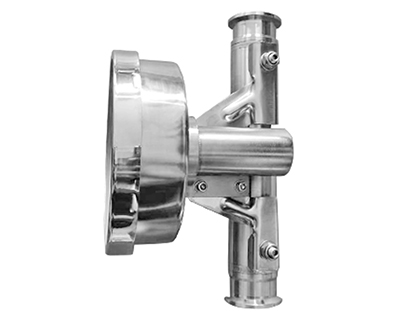

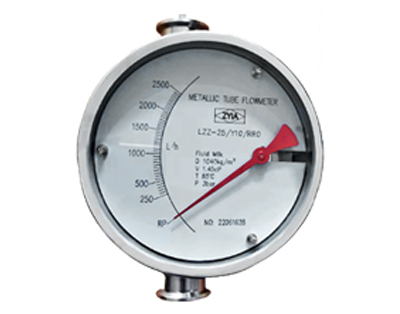

Tri-Clamp Connection

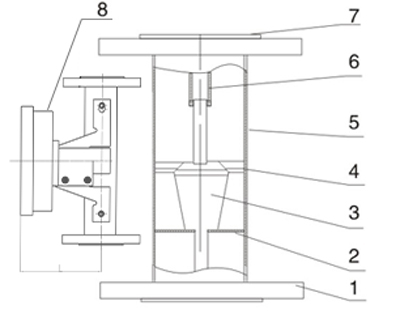

Construction

1. Flange Connection

2. Guider

3. Float

4. Measuring Tube

5. Tube Body

6. Stopper

7. Spring Collar

8.  Indicator

Main Technical Parameters

Measure Range

Water (20℃)(2.5-10000) L/h

Air (20℃, 1.101325MPa)(0.07-750) m3/h

Range Ratio

10:1

Accuracy Grade

±1.5%  ±2.5%

Fluid Working Pressure

DN15-DN50: 4.0MPa

DN80-DN150: 1.6MPa

Working Pressure of Coating

1.6MPa

Fluid Working Temperature

-80℃-+200℃(PTFE≤+85℃)(For Model PTFE≤+85℃)

Connection Type

(Flange connection, Threaded connection or Tri-clamp connection flange refer to standard GB/T9119; ANSI 150lbs、300lbs; HG20592-20635; Other standard flange can be made to the user requirement.)

Environment Temperature

-25℃-+55℃

Medium Viscidity

DN15≤5mPa.S;

DN25-DN100≤250mPa.S

Electricity Singal Output

Output Signal: ( 4-20mA )

Linear Accuracy: 1%

Temperature Influence: 0.5%/10℃

Power Supply : (13-30 ) V DC

Power Supply Consume: ≤250mW

Restrict Alarm

Power Supply: 24 ( ±10%) VDC

Power Loss: ≤3W

Working Temperature: -25℃-+60℃

Explosion-proof Gr

EXIbllCT5

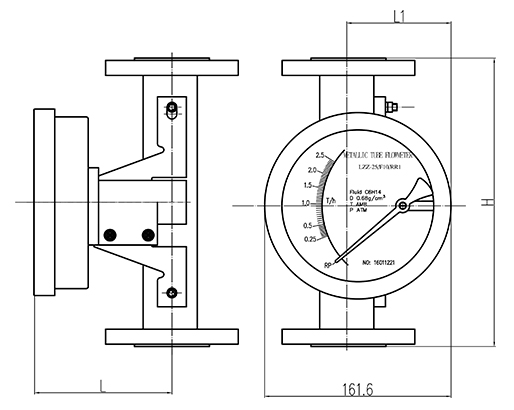

LZ-Outline and installing demension(Flange Connection)

DN

H

L

L1

15

250

120

80

20

250

120

80

25

250

120

90

32

250

120

91

40

250

120

91

50

250

120

104

65

250

120

104

80

250

120

121

100

250

120

133

125

250

120

133

150

300

120

141

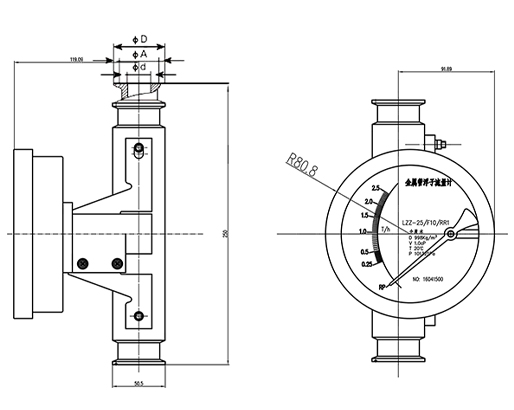

LZ-Outline and installing demension(Tri-Clamp Connection)

DN

H

D

A

d

15

250

34

27.5

22

20

250

50.5

43.5

37

25

250

50.5

43.5

37

32

250

50.5

43.5

37

40

250

50.5

43.5

37

50

250

64

56.5

50

65

250

77.5

70.5

58

65

250

91

83.5

67

80

250

106

97

80

100

250

119

110

90

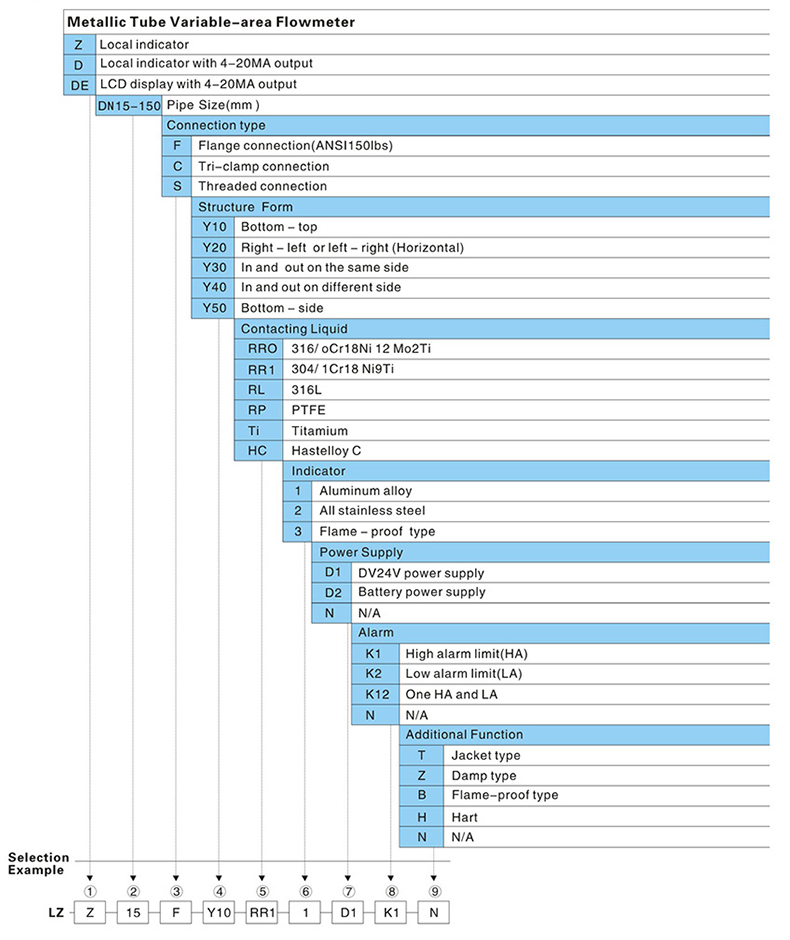

Model Selection

■Measuring Range

Diameter

(mm)

Water ( L/h)

20℃ 101325Pa

Air ( m3/h )

20℃ 101325Pa.abs

Maximum Pressure Loss ( Kpa )

Accuracy

Working

Pressure

RRO RR1 RL

PTFE

RRO RR1 RL

RRO RR1 RL

PTFE

15

1.6-16



0.05-0.5

6.5



±1.5%

≤4.0Mpa

2.5-25



0.07-0.7

6.5



4-40

2.5-25

0.12-1.2

6.5

5.5

6-60

4-40

0.18-1.8

6.6

5.5

10-100

6-60

0.3-3

6.6

5.6

16-160

10-100

0.4-4.0

6.8

5.8

25-250

16-160

0.7-7.0

7.2

6.1

40-400

25-250

1.0-10

8.6

6.1

60-600

40-400

1.5-15

11.1

7.3

80-800

60-600

2.5-25

11.1

7.3

100-1000

80-800

3.0-30

11.1

7.3

20

40-400

40-400

0.75-7.5

8.6

6.1

60-600

60-600

1.2-12

11.1

7.3

100-1000

100-1000

1.8-18

11.1

7.3

25

40-400

40-400

1-10

6.5

5.9

60-600

50-500

1.5-15

6.5

6.2

80-800

60-600

2.5-25

7.0

7.0

100-1000

80-800

4-40

7.0

5.9

160-1600

100-1000

5-50

8.0

6.0

250-2500

160-1600

6-60

10.8

6.8

400-4000

250-2500

8-80

15.8

9.2

500-5000

400-4000

10-100

16.2

11.0

600-6000

500-5000

15-150

16.5

12.0

32

160-1600

160-1600

3.0-30

8.0

6.0

250-2500

250-2500

5.0-50

10.8

6.8

400-4000

400-4000

7.5-75

15.8

9.2

600-8000

600-6000



16.5

12.0

40

400-4000

400-4000

3.0-30

8.0

6.5

600-6000

600-6000

5.0-50

11

6.8

1000-10000

1000-10000

7.5-75

16.2

9.4

50

600-6000

400-4000

18-180

8.0

6.5

1000-10000

600-6000

25-250

11.0

6.8

1600-16000

1000-10000

40-400

16.2

9.4

2000-20000

1600-16000

50-500

17.0

14.5

2500-25000

2000-20000

60-600

19.0

16.5

65

1200-12000

1200-12000

18-180

8.2

6.9

≤1.6Mpa

1600-16000

1600-16000

30-300

8.2

6.9

2500-25000

2500-25000

37-370

15.5

11.9

80

1600-16000

1000-10000

50-500

8.2

6.9

2500-25000

1600-16000

60-600

15.5

11.9

4000-40000

2000-20000

100-1000

20.0

16.1

5000-50000

2500-25000

150-1500

25.0

18.1

100

4000-40000

2000-20000

100-1000

8.4

8.1

5000-50000

2500-25000

150-1500

11.2

9.1

6000-60000

4000-40000

180-1800

20.0

16.5

8000-80000

5000-50000

240-2400

25.4

22.2

10000-100000

8000-80000

300-3000

32

29.2

125

10000-100000

8000-80000

300-3000

42

38.5

25000-125000

10000-100000



45

42

150

12500-125000

10000-100000



45

42

15000-150000

12500-125000



60

58

Note:1.To ensure flowmeter working stability, it should be assured that the working pressure is not less than double of max loss of pressure when the flowmeter used to measure liquid; when you measure medium is air, it should be assured that the working pressure is not less than five times max loss of pressure:2.Above measuring range is for reference only, you can select other measuring ranges according to range ratio 10:1:3.Flowmeler can be specially made for you as per medium density viscosity, temperature pressure and other parameters you supply.
