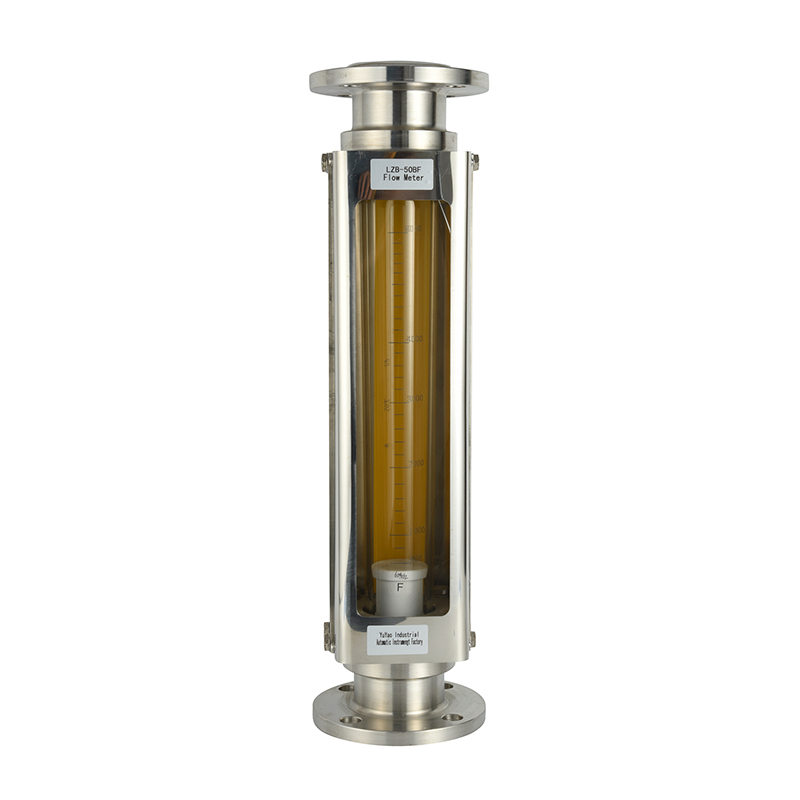

LZB-B/BF Series Glass Tube Chemical Rotameter

The material of the corrosion-resistant data industrial rotameter parts that contact the medium are as follows: the glass tube is made of high boron silicon glass, the float and are covered with PTPE, and the seal ring is F46 ring. For the corrosion-resistant data industrial rotameter whose diameter is less than 10mm, the material of the base is stainless steel and the seal material is fluorine rubber.

Product Description

■Quick Details

Place of Origin

Zhejiang China

Working Pressure

≤0.6 Mpa

Connection

Flange

Model NO.

LZB - Series

Max Temp.

60℃

Tube material

Glass

Medium

Water, Liquid Air, Gas

Customized Support

OEM, ODM, OBM

Size

Φ15-φ100

Accuracy

±1.5%

Brand Name

ZYIA

Sample

Available



Introduce

The material of the corrosion-resistant data industrial rotameter parts that contact the medium are as follows: the glass tube is made of high boron silicon glass, the float and leader are covered with PTPE, and the seal ring is F46 ring. For the corrosion-resistant data industrial rotameter whose diameter is less than 10mm, the material of the base is stainless steel and the seal material is fluorine rubber.


Product Features

1) Clear indication glass flange flow meter
2) Easy installation of glass flange flow meter
3) Low cost

Technical Parameters of LZB-B Series Glass Rotameter

Model

LZB-15B

LZB-25B

LZB-40B

LZB-50B

LZB-80B

LZB-100B

LZB-100B

Diameter(mm)

Φ15

Φ25

Φ40

Φ50

Φ80

Φ100

Φ100

Range

Liquid

L/h

*6-60

40-400

160-1600

*160-1600

1-10m3/h

5-25m3/h

*20-90m3h

*8-80

60-600

*180-1800

400-4000

1.6-16m3/h

*6-35m3/h

*20-100m3/h

16-160

100-1000

250-2500

600-6000

*2-20m3/h

8-40m3/h

*30-100m3/h

25-250

*160-1600

*300-3000

*800-8000

*3-25m3/h

*12-60m3/h

*50-120m3/h

40-400



*400-4000

*1-10m3/h

*8-40m3/h

*16-80m3/h







*1-5m3/h

*4-16m3/h











*1.5-6m3/h









Gas

m3/h

0.25-2.5

*0.8-8

4-40

*6-60

50-250

*60-200

*300-1500

0.4-4

1-10

*5-50

10-100

80-400

*80-400

 *300*1600

0.6-6

1.6-16

6-60

16-160

*750-7500l/min

*100-500

*400-2000

*0.8-8

2.5-25

*7-70

*20-200

*60-600

120-600

*500-2500

*1-10

*3-30

*8-80

*30-300



200-1000





*4-40

*10-100

*50-250













*80-400







Accuracy(±%)

2.5

1.5

1.5

1.5

1.5

1.5

1.5

Pressure(MPa)

≤0.6

≤0.6

≤0.6

≤0.6

≤0.6

≤0.4

≤0.4

Range with * represents a customer-tailored special range.


■Technical Parameters of LZB -BF Series Glass Rotameter

Model

LZB-15BF

LZB-25BF

LZB-40BF

LZB-50BF

LZB-80BF

LZB-100BF

Diameter(mm)

Φ15

Φ25

Φ40

Φ50

Φ80

Φ100

Range

Liquid

L/h

16-160

40-400

160-1600

400-4000

1-10m3/h

5-25m3/h

25-250

60-600

250-2500

600-6000

1.6-16m3/h

8-40m3/h

40-400

100-1000









Gas

m3/h

0.25-2.5

1-10

4-40

10-100

50-250

120-600

0.4-4

1.6-16

6-60

16-160

80-400

200-1000

0.6-6

2.5-25









Accuracy(±%)

4

2.5

2.5

2.5

2.5

2.5

Pressure(MPa)

≤0.6

≤0.6

≤0.6

≤0.6

≤0.4

≤0.4

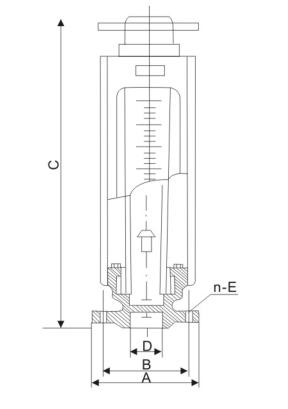

■The Drawing and Installation Dimensions of LZB - (Ind. Model F.S.B)

Model

Dimensions(mm)

A

B

C

D

N-E

LZB-15

Φ95

Φ65

470±2.5

Φ15

4-Φ14

LZB-25

Φ115

Φ85

470±2.5

Φ25

4-Φ14

LZB-40

Φ145

Φ110

570±3

Φ40

4-Φ18

LZB-50

Φ160

Φ125

570±3

Φ50

4-Φ18

LZB-80

Φ185

Φ150

660±3.5

Φ80

4-Φ18

LZB-100

Φ205

Φ170

660±3.5

Φ100

4-Φ18

Note:Made LZB-15 no leader
