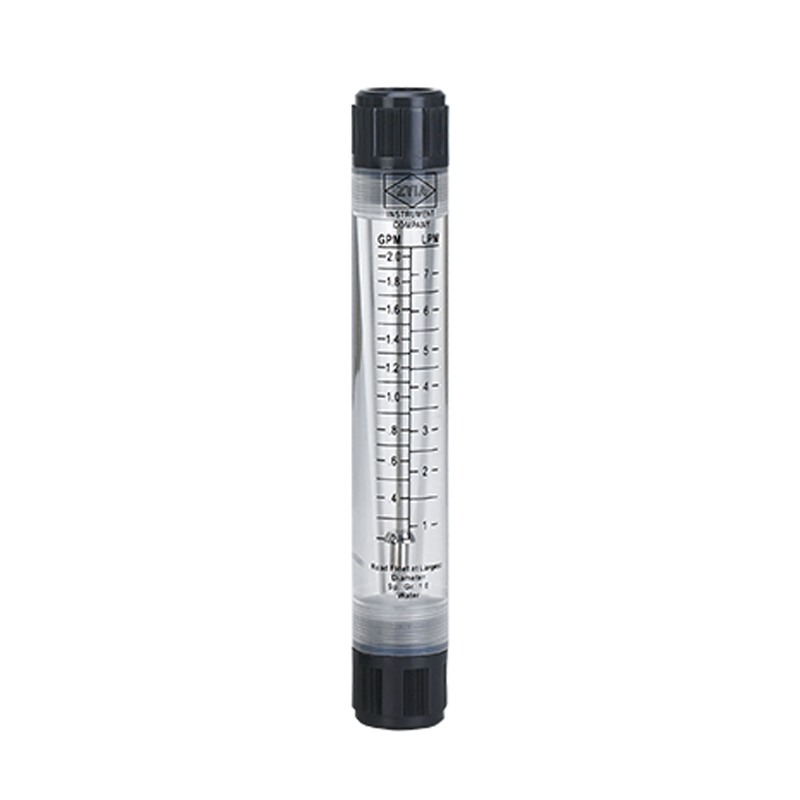

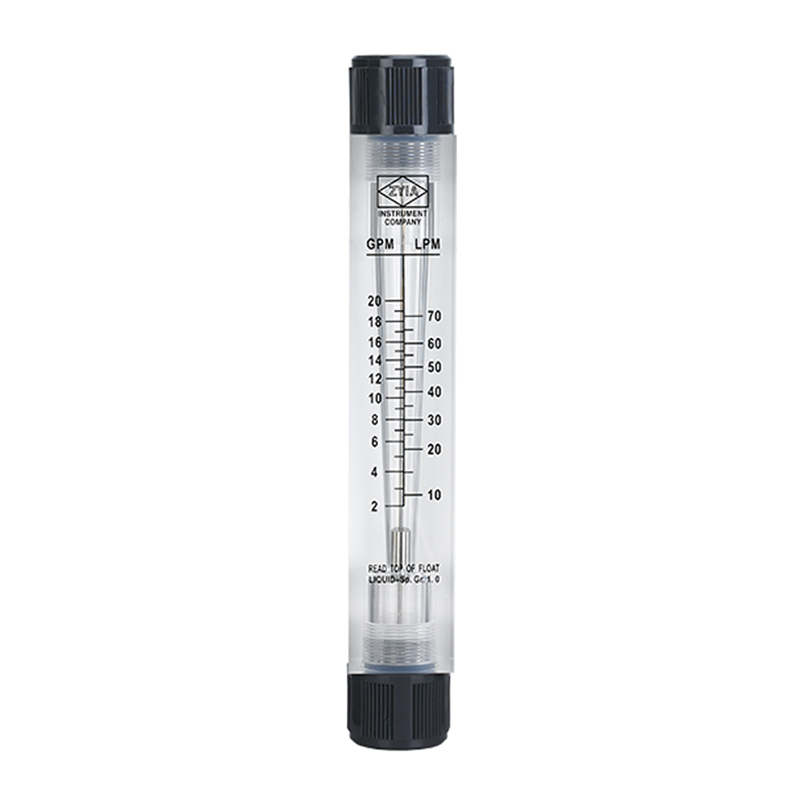

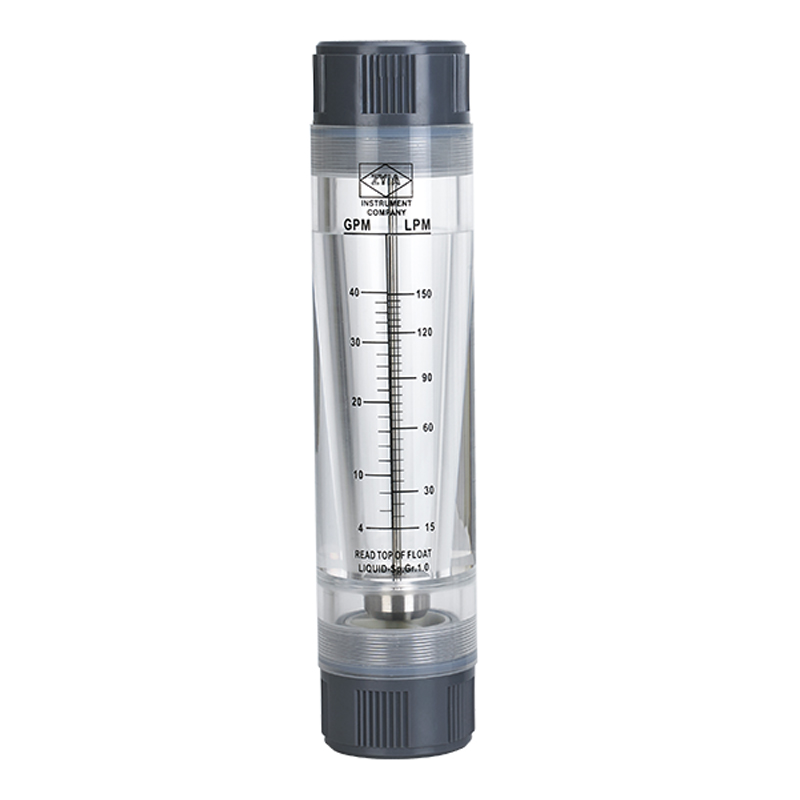

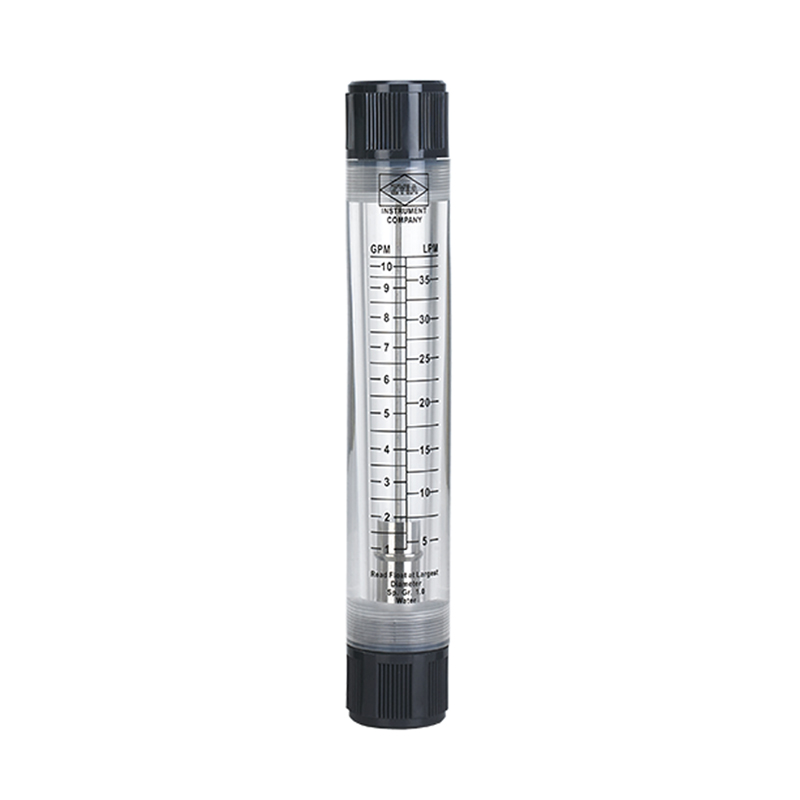

LZM-GB Series Water Tube Flow Meter

Introduce:

LZM-GB real value in general purpose rotameters. LZM-GB in-ine flow meter also named Acrylic tube rotameter, acrylic tube flowmeter, PVC Connection.



Product Description

Product Features

1.Tough machined acrylic meter body, highly polished to a clear finish.

2.Direct reading permanent scale.

3.White back reflector for easy reading.

4.316 stainless steel rod guided floats.5.Acceptable in direct sunlight applications.

Place of Origin

Zhejiang China

Float

SS316

Connection

Female Thread

Model NO.

LZM -GB Series

Fitting

1/2" BSPT

1" BSPT

1 1/2" BSPT

Body

Acrylic

Medium

Gas, Air, Water, Liquid

Customized Support

OEM, ODM, OBM

Diameter

DN15mm-DN40

Accuracy

±4%

Brand Name

ZYIA

Fitting

ABS

Working Pressure

≤1 Mpa

Max Temp.

60℃

O-ring

Silicon rubber

■Technical Parameter of L ZM - GB Series Flow Meter

Model

Range

Screw Thread

Accuracy

GPM(Liquid)

LPM(Liquid)

Nm3/h(Gas)

LZM-15GB

0.1-1

0.5-4

1.6-16

(F) 1/2" BSPT

±4%

0.2-2

1-7

2.5-25

0.5-5

2-18

4-40

LZM-25GB

LZM-25GBF

1-10

5-35

6-60

(F) 1" BSP

2-16

4-60

7-70

2-20

10-70

10-100

LZM-40GB

LZM-40GBF

4-40

15-150



(F) 1 1/2" BSP

6-60

20-240

8-80

30-300

10-100

50-350

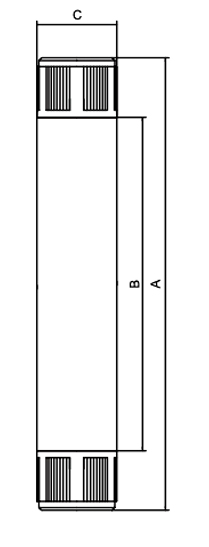

■The outline size of LZM - GB Series Flow Meter

Model

Size

A

B

C

LZM-15G

210

160

φ32

LZM-25GB

278

211

φ45

LZM-25GBF

295

228

45*45

LZM-40GB

300

230

φ68

LZM-40GBF

300

230

68*68

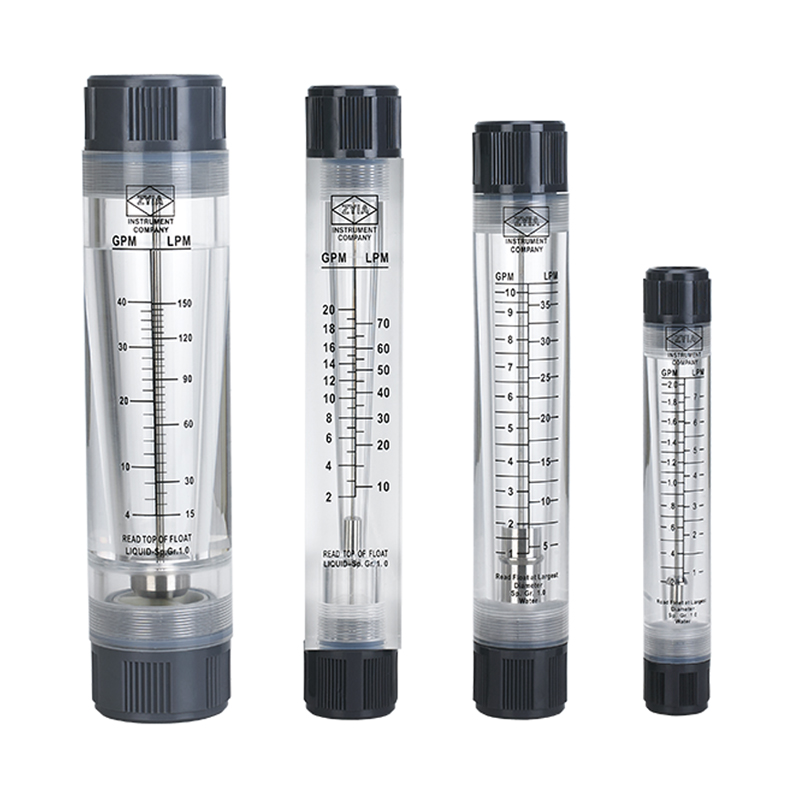

Note: For buyer's convenience, we designed two constructions for this series of flowmeters. one is circular, and the other one is quadrate, their measure range is same, LZM-GB Circular tube type flowmeter LZM-GBF Quadrate tube type flowmeter.
