LZM Variable Area Liquid Flow Meter

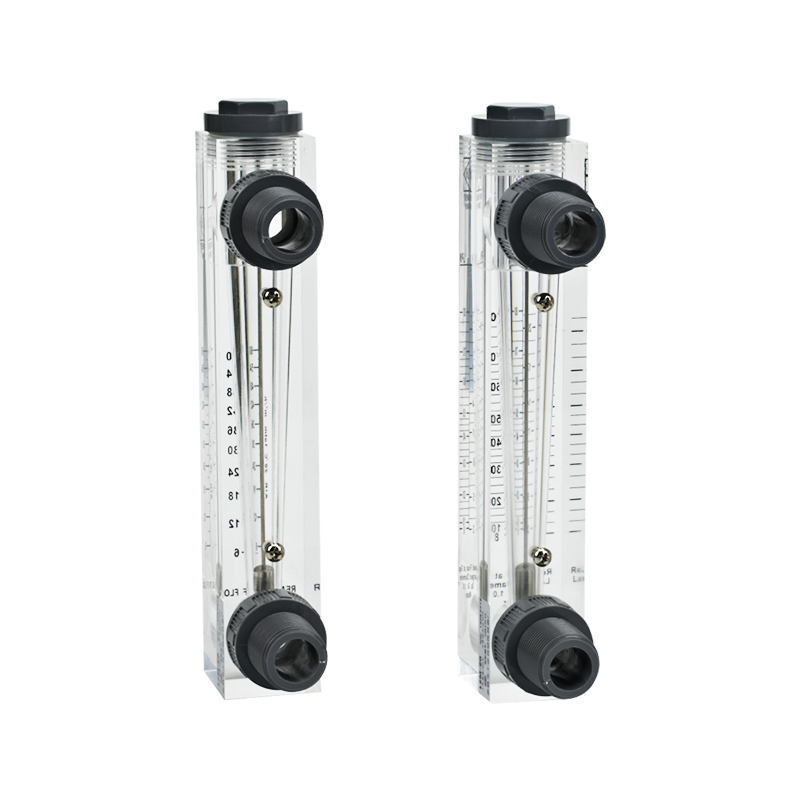

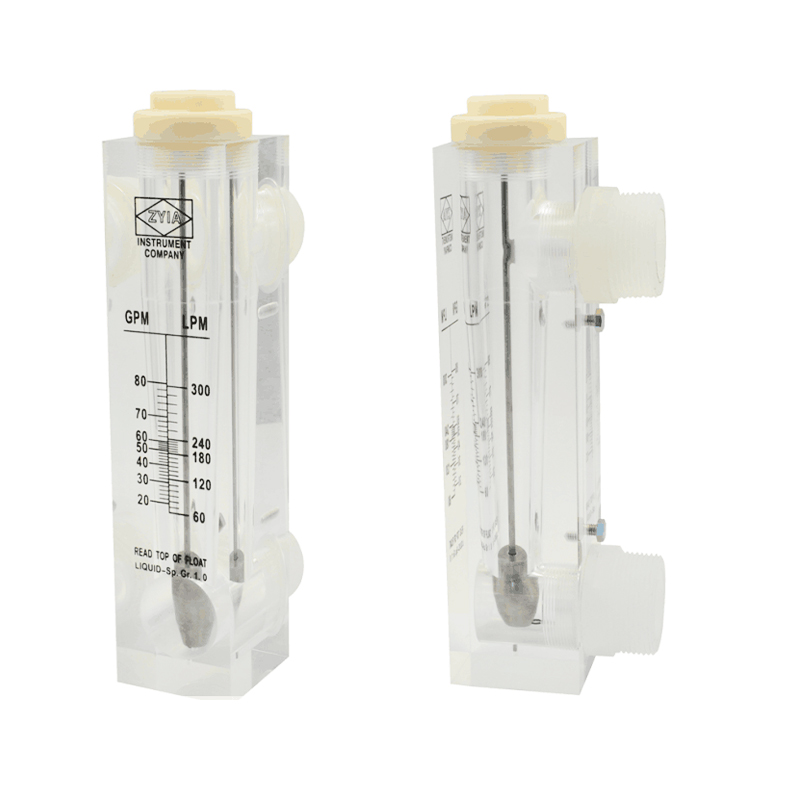

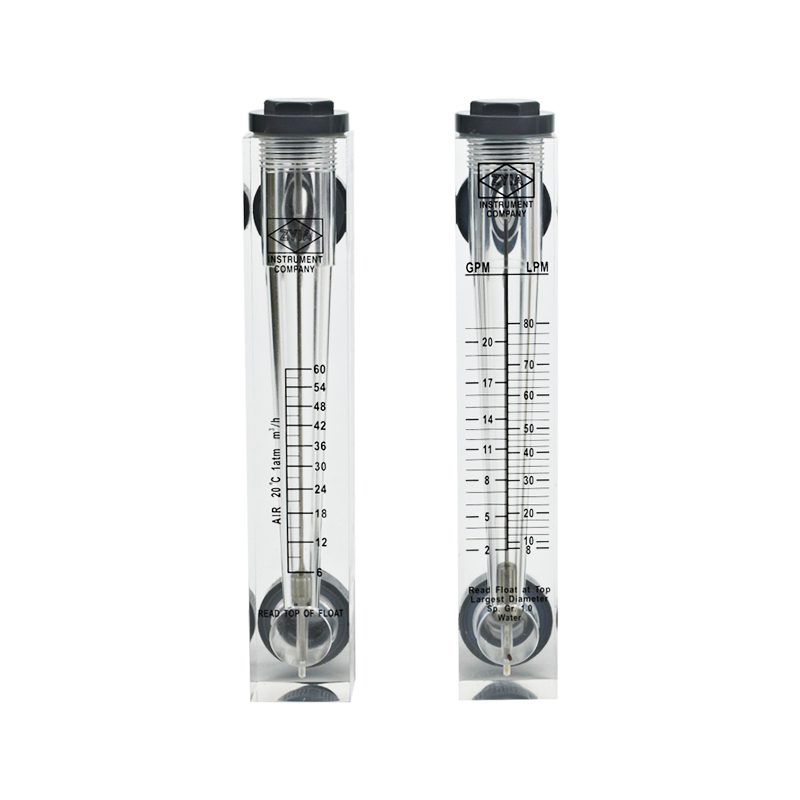

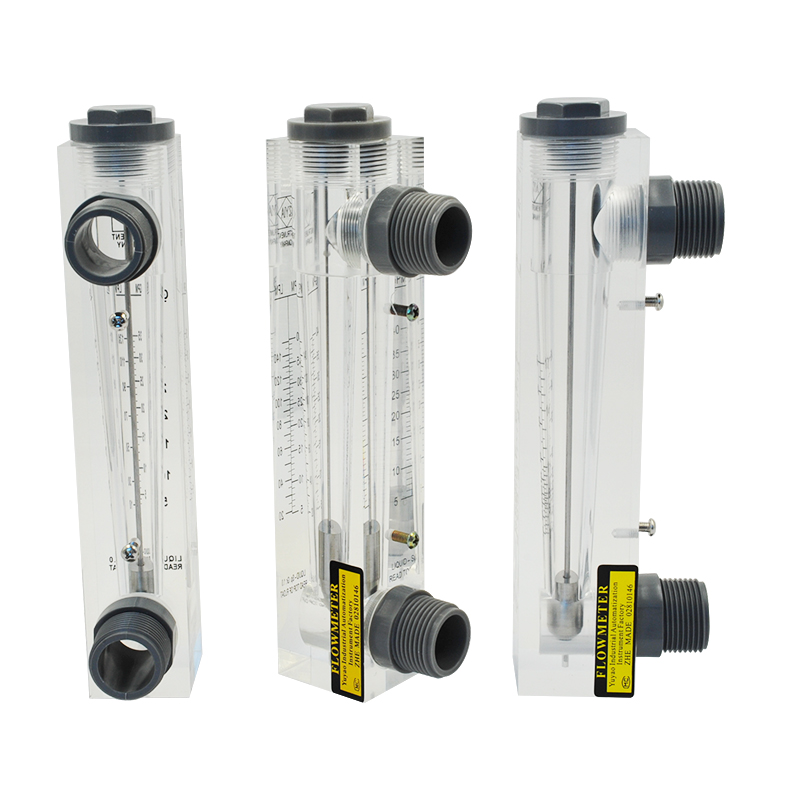

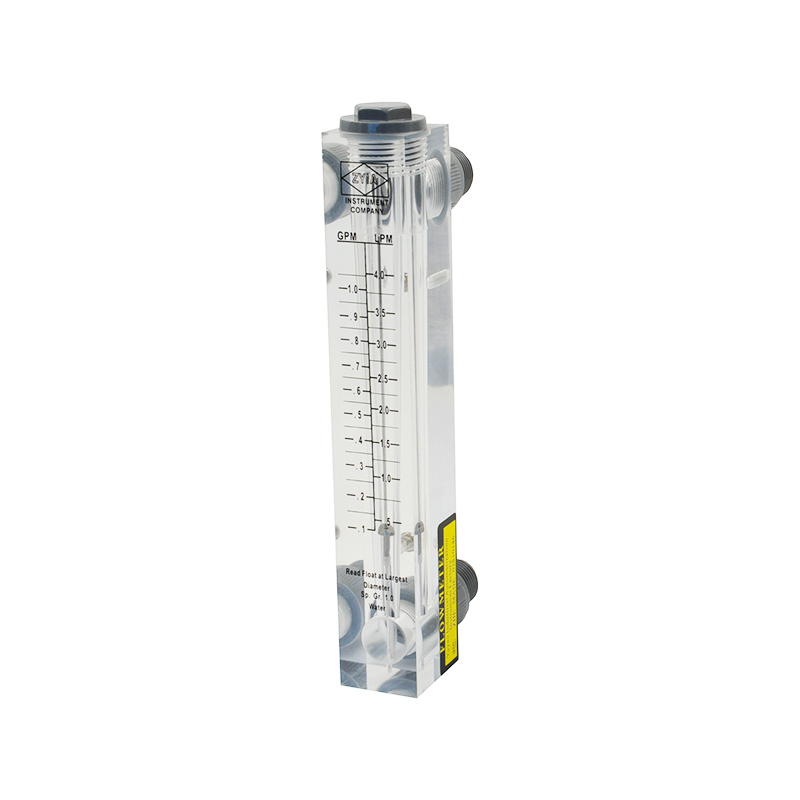

The LZM series flowmeter is a new type of flowmeter mainly composed of organic glass, used to measure single-phase non pulsating flow of liquids or gases. Its characteristics are beautiful appearance, high transparency, intuitive reading, light weight, easy installation, not easy to break, and long service life.

Product Description

Quick Details

Place of Origin

Zhejiang China

Float

SS316

Connection

Male Thread Female Thread

Model NO.

LZM - Series

Fitting

3/4'' male

1/2'' male

1'' male

1 1/2 '' male

Body

Acrylic

Medium

Gas, Air, Water

Customized Support

OEM, ODM, OBM

Diameter

DN15mm, 20mm, 25mm, 40mm

Accuracy

±4%

Brand Name

ZYIA

Fitting

ABS

Working Pressure

≤ 1 Mpa

Max Temp.

60℃

O-ring

Silicon rubber



Introduce

LZM - series flowmeter is suitable for both gas and liquid, it featured in beautiful look. With semicircle fittings and white colored type, and there are two screws can easily installed on panel.



Product Features

1) Torque evenly and wear resistance

2) Durable and long service,adopt high quality material

3) High definition scale,convenient and accurate reading

■Technical Parameters of LZM-Series Panel Type Flow Meter

Model

Range

Screw

Thread

Accuracy

Size ( mm )

GPM(Liquid)

LPM(Liquid)

Nm3/h(Gas)

A

B

c

D

E

F

G

H

LZM-15

0.1-1

0.5-4

1-10
1.6-16

2.5-25
4-40

(M) 1/2” BSPT

±4%

216

32

206

37

36

100

28

165

0.2-2

0.8-8

0.3-3

1-11

0.5-5

2-18

1-7

2-28

1.5-9

400-2000LPH

LZM-20

2-10

8-40

2.5-25
6-60

16-80
16-160

(M) 3/4” BSPT

233

39

220

44

42

100

37

165

2-16

8-60

2-20

8-80

LZM-25

1.5-15

6-60

20-200
25-250

(M) 1” BSPT

253

44

240

50

31

100

37

175

3-13

10-50

4-24

10-100

5-35

10-130

5-45

20-170

LZM-40

10-45

40-170



(M) 11/2” BSPT

265

62

250

62

33

100

52

170

15-50

60-200

10-60

60-240

20-70

80-260

20-80

80-300



■The material of the LZM-series Flow Meter

Fitting

Float

O-ring

   1. ABS

   2. PP

√3. PVC

   4. Brass

   5. Brass chromeplate

   6. SS

√1. SS

   2. Agata ball

   3. PTFE

√1. Silicon rubber

   2. Fluorin rubber

   3. Butyl

Note: Mark with √, the material of the Flow Meter is the General Configuration.

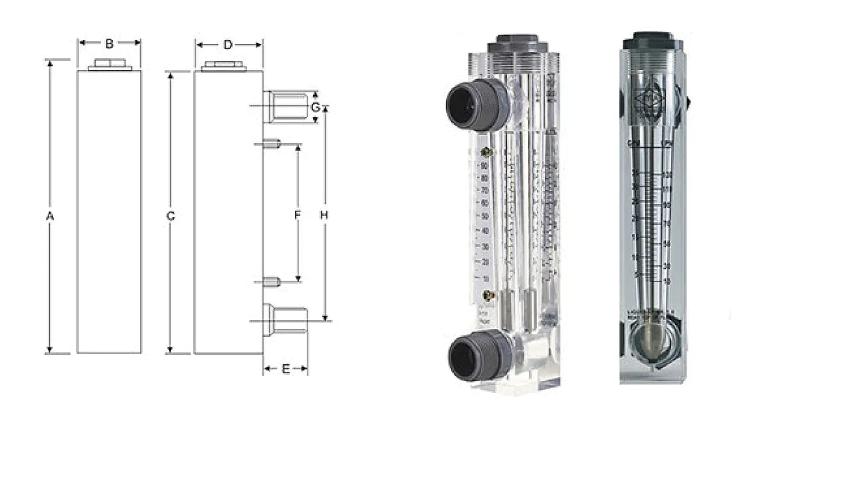

The outline size of LZM - Series Flow Meter

Model

Size(mm)

A

B

C

D

E

F

G

H

LZM-15

216

32

206

37

36

100

28

165

LZM-20

233

39

220

44

42

100

37

165

LZM-25

253

44

240

50

31

100

37

175

LZM-40

265

62

250

62

33

100

52

170
