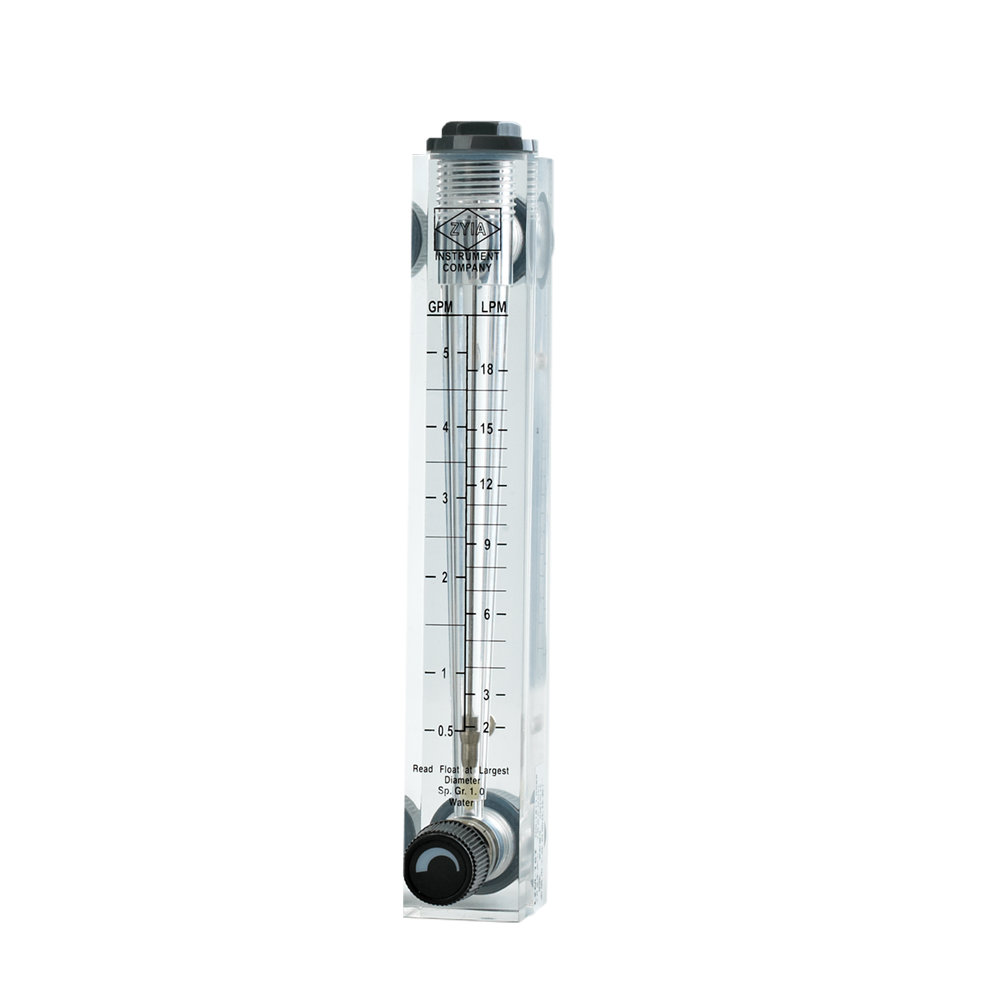

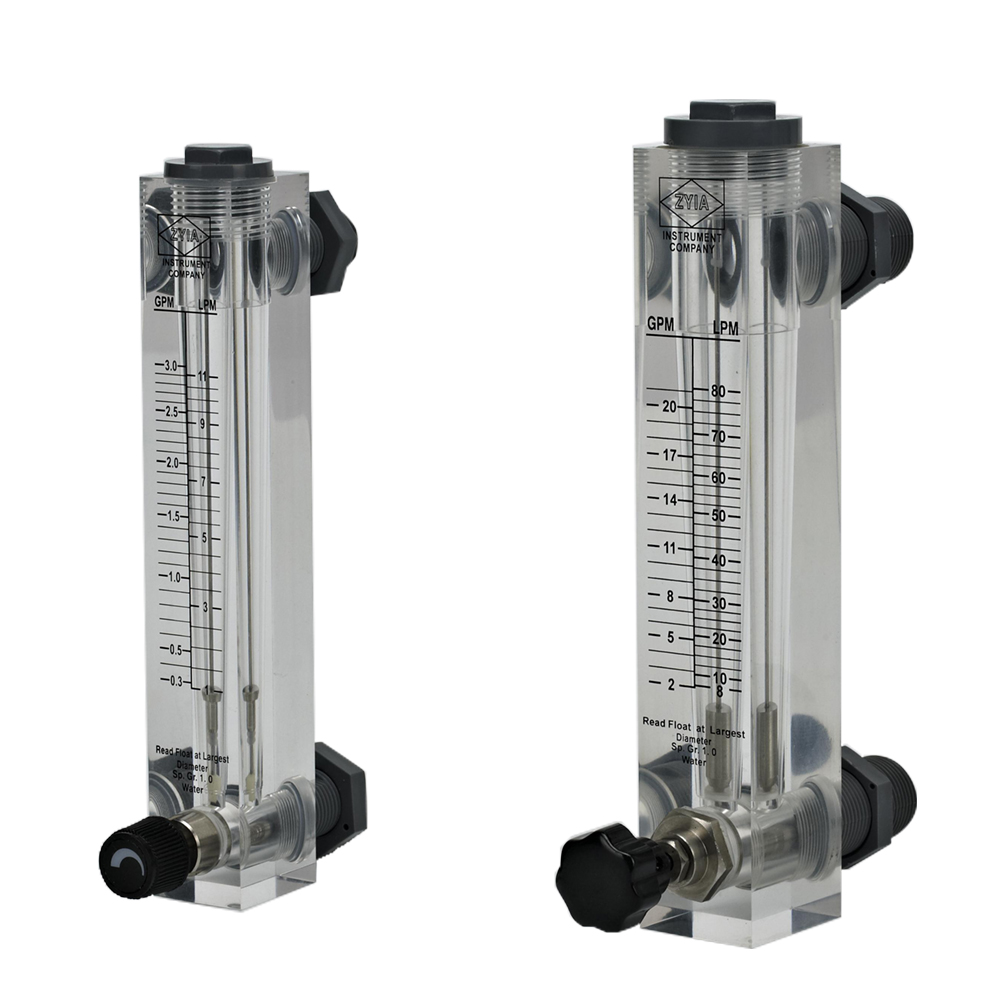

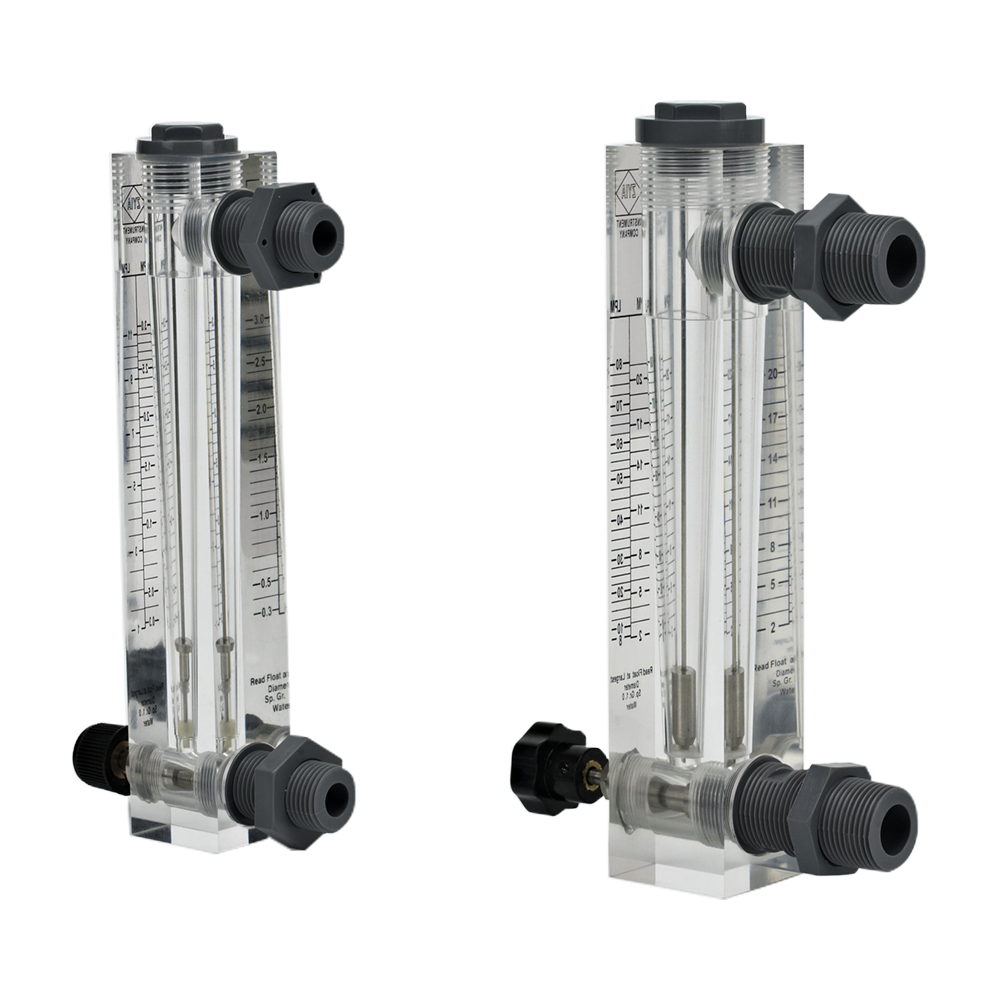

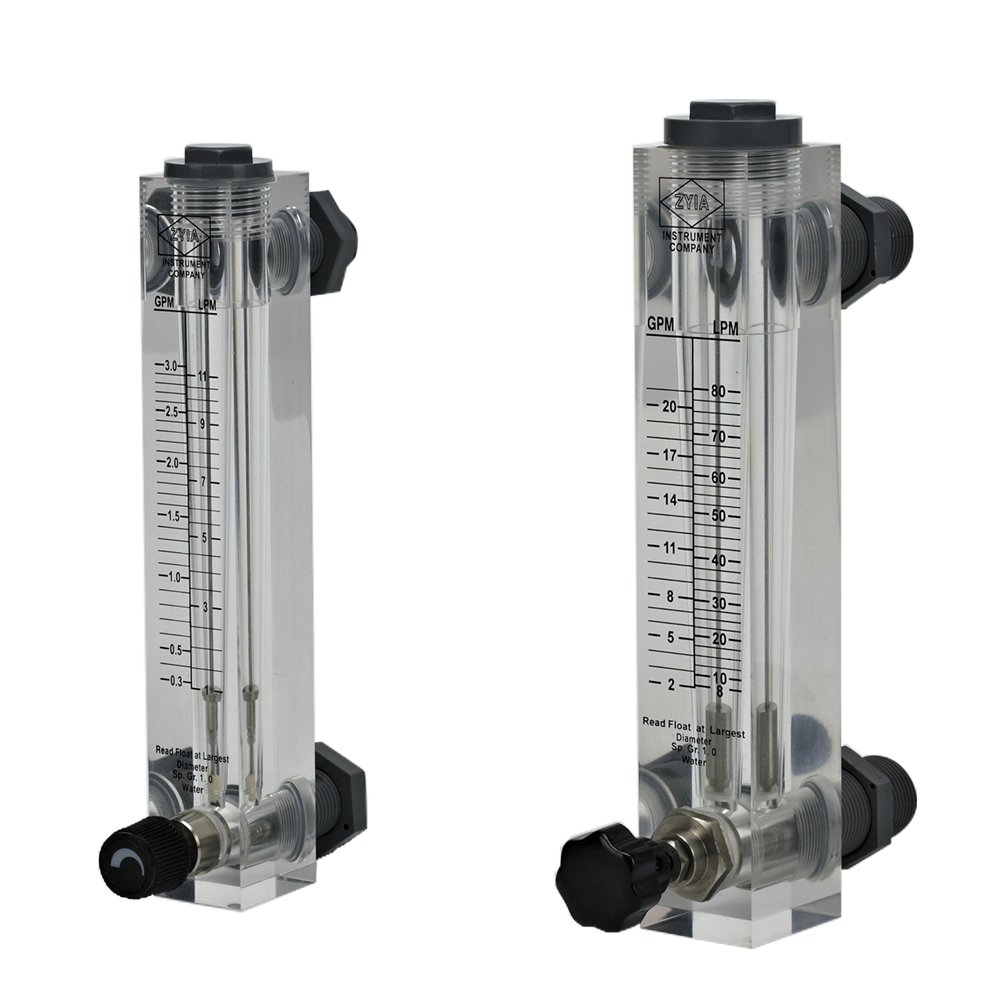

■Technical Parameters of LZM—JT Series Panel Type Flow Meter
Model |
Range |
Screw Thread |
Accuracy |

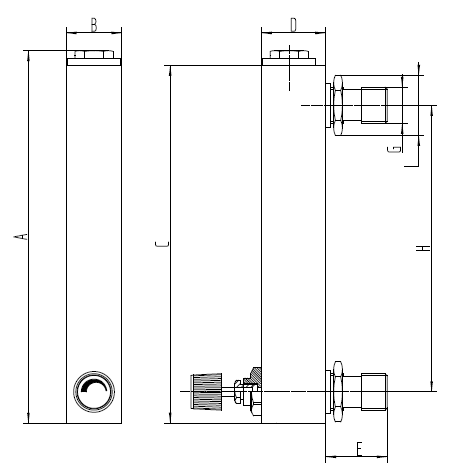

Size(mm) |
|||||||||
GPM (Liquid) |
LPM Liquid |
Nm'/h(Gas) |
A |
B |
C |
D |
E |
F |
G |
H |
|||
LZM-15JT |
0.1-1 |
0.5-4 |
1-10 2.5-25 |
(M)1/2"NPT (M)1/2"BSP |
±4% |
216 |
32 |
206 |
37 |
33 |
1/2” |
165 |
30 |
0.2-2 |
0.8-8 |
||||||||||||
0.3-3 |
1-11 |
||||||||||||
0.5-5 |
2-18 |
||||||||||||
1-7 |
2-28 |
||||||||||||
1.5-9 |
400-2000LPH |
||||||||||||
LZM-20JT |
2-10 |
8-40 |
2.5-25 16-80 |
(M)3/4"NPT (M)3/4"BSP |
233 |
39 |
220 |
44 |
49 |
3/4” |
165 |
32 |
|
2-16 |
8-60 |
||||||||||||
2-20 |
8-80 |
||||||||||||
LZM-25JT |
1.5-15 |
6-60 |
20-200 25-250 |
(M)1"NPT (M)1"BSP |
253 |
44 |
240 |
50 |
48 |
1" |
175 |
40 |
|
3-13 |
10-50 |
||||||||||||
4-24 |
10-100 |
||||||||||||
5-35 |
10-130 |
||||||||||||
5-45 |
20-170 |
