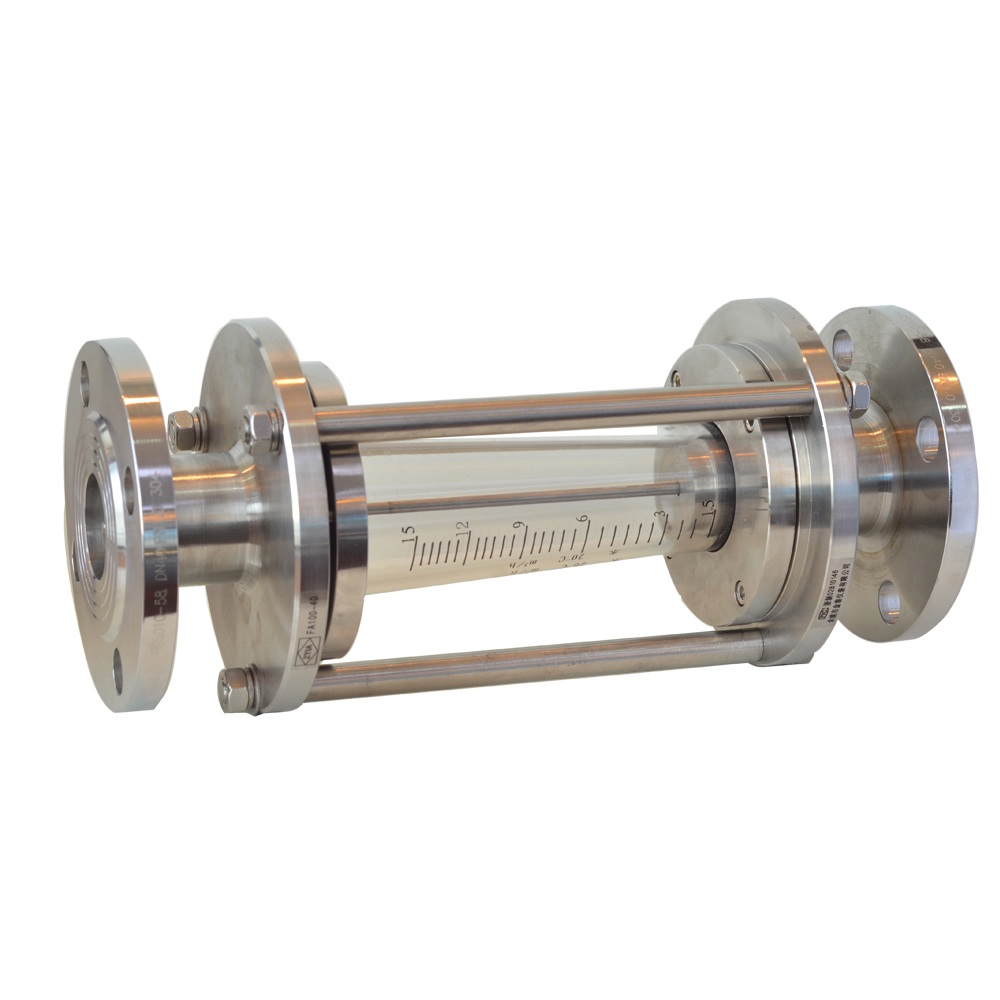

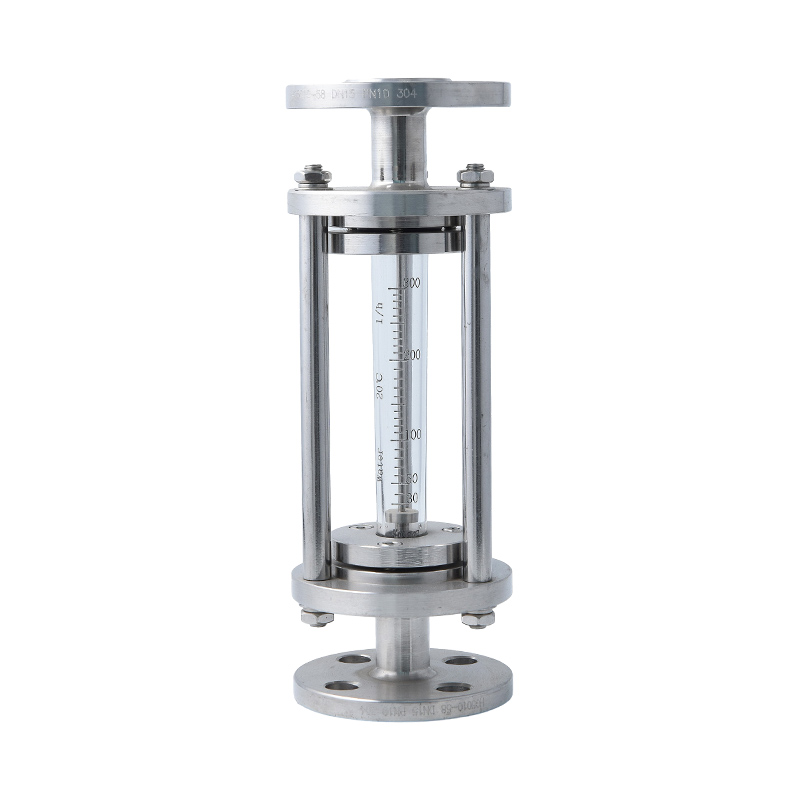

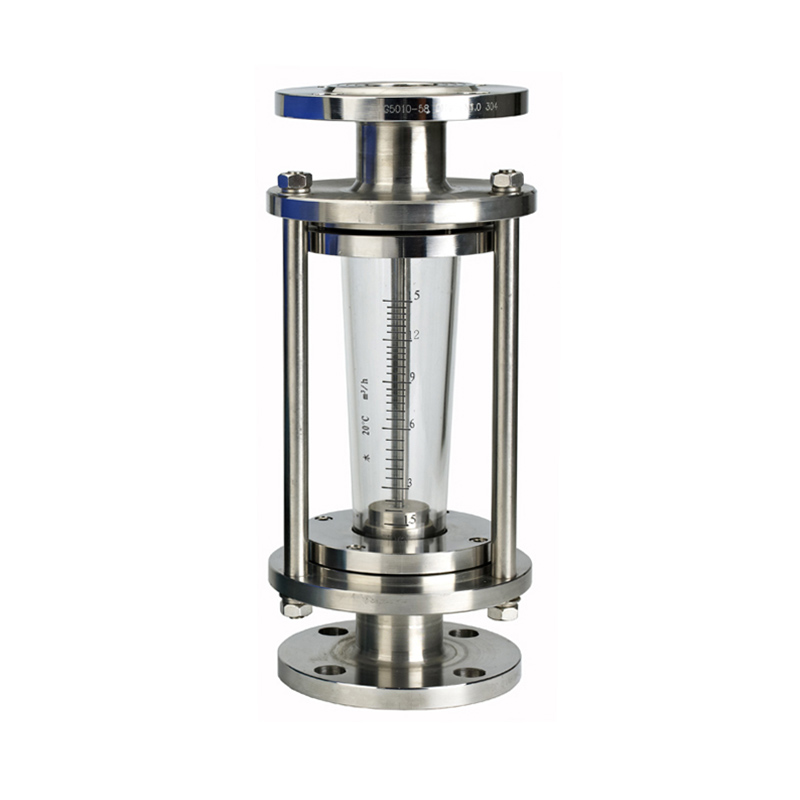

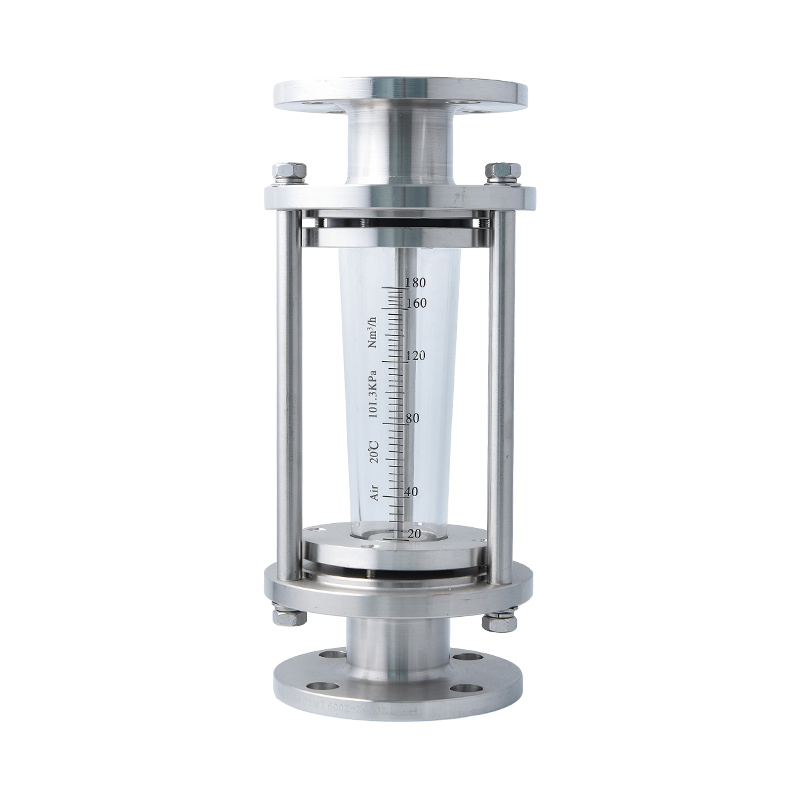

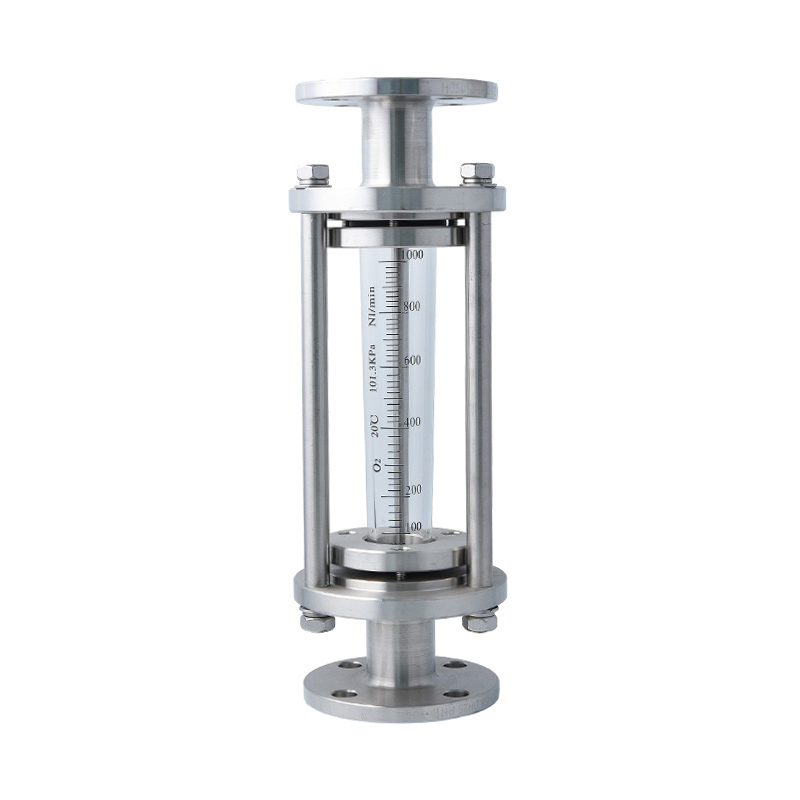

LZB-FA100 Glass Rotator Flowmeter is highly sensitive and works in a wide range with low-pressure loss,
LZB-FA100 Glass Rotator Flowmeter is highly sensitive and works in a wide range with low-pressure loss,
■Quick Details
Place of Origin |
Zhejiang |
Working Pressure |
≤1.0 Mpa |
Connection |
Flange |
Model NO. |
LZB - FA100 |
Max Temp. |
120℃ |
Diameter |
DN15-DN100mm |
Medium |
Water, Liquid Air, Gas |
Customized Support |
OEM, ODM, OBM |
Flout |
SS304 |
Accuracy |
±3% |
Brand Name |
ZYIA |
Sample |
Available |
■Introduce
LZB-FA100 Glass Rotator Flowmeter is highly sensitive and works in a wide range with low-pressure loss, besides other advantages e.g. easy to operate etc. It is usually used for low-pressure, high-temperature sheer liquid or gases without suspending particles and has been widely employed in various industries e.g. petroleum, chemicals, electronics, environmental protection, power supply and medicine etc.
Working Temperature |
SS304≤ 120℃ |
Accuracy |
± 3% F.S |
Range Rate |
10:1 |
■Product Features
1)Milk flow meter for variable area
2)High quality, Hot-sell, Factory price
3)The installation is easy and the milk flow meter is adjustable
■Main Technical Parameters
Diameter(mm) |
Range |
Working Pressure(Mpa) |
|
Water (l/h) |
Air (NL/min) |
||
15 |
30-300 60-600 80-800 |
10-100 20-200 25-250 |
≤0.8 |
20 |
90-900 120-1200 180-1800 |
20-200 30-300 50-500 |
|
25 |
180-1800 300-3000 480-4800 |
50-500 100-1000 150-1500 |
|
32 |
480-4800 600-6000 720-7200 |
200-2000 250-2500 300-3000 |
≤0.6 |
40 |
1-10m3/h 1.2-12m3/h 1.5-15m3/h |
18-180Nm3/h 20-200Nm3/h 25-250Nm3/h |
|
50 |
1.2-12m3/h 1.5-15m3/h 1.8-18m3/h |
20-200Nm3/h 25-250Nm3/h 30-300Nm3/h |
|
65 |
1.8-18m3/h 3-30m3/h 4-40m3/h |
25-250Nm3/h 35-350Nm3/h 40-400Nm3/h |
≤0.4 |
80 |
4-40m3/h 5-50m3/h 6-60m3/h |
40-400Nm3/h 50-500Nm3/h 60-600Nm3/h |
|
100 |
6-60m3/h 7-70m3/h 10-100m3/h |
60-600Nm3/h 70-700Nm3/h 90-900Nm3/h |

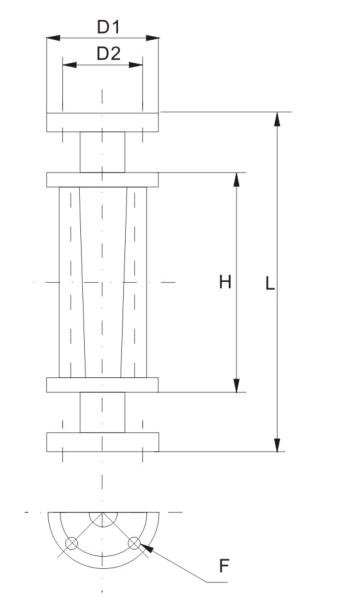

■LZB-FA100 Outline and Installation Dimensions(mm)
Model |
FA100-15 |
FA100-20 |
FA100-25 |
FA100-32 |
FA100-40 |
FA100-50 |
FA100-65 |
FA100-80 |
FA100-100 |
L |
260 |
340 |
340 |
340 |
340 |
340 |
390 |
390 |
410 |
H(Glass tube length) |
150 |
200 |
200 |
200 |
200 |
200 |
250 |
250 |
250 |
D1 |
95 |
105 |
115 |
135 |
145 |
160 |
180 |
185 |
205 |
D2 |
65 |
75 |
85 |
100 |
110 |
125 |
145 |
150 |
170 |
F |
4-φ14 |
4-φ14 |
4-φ14 |
4-φ18 |
4-φ18 |
4-φ18 |
4-φ18 |
4-φ18 |
4-φ18 |
