LZB-VA/SA/FA10 Series Flow Meter with Different Connection

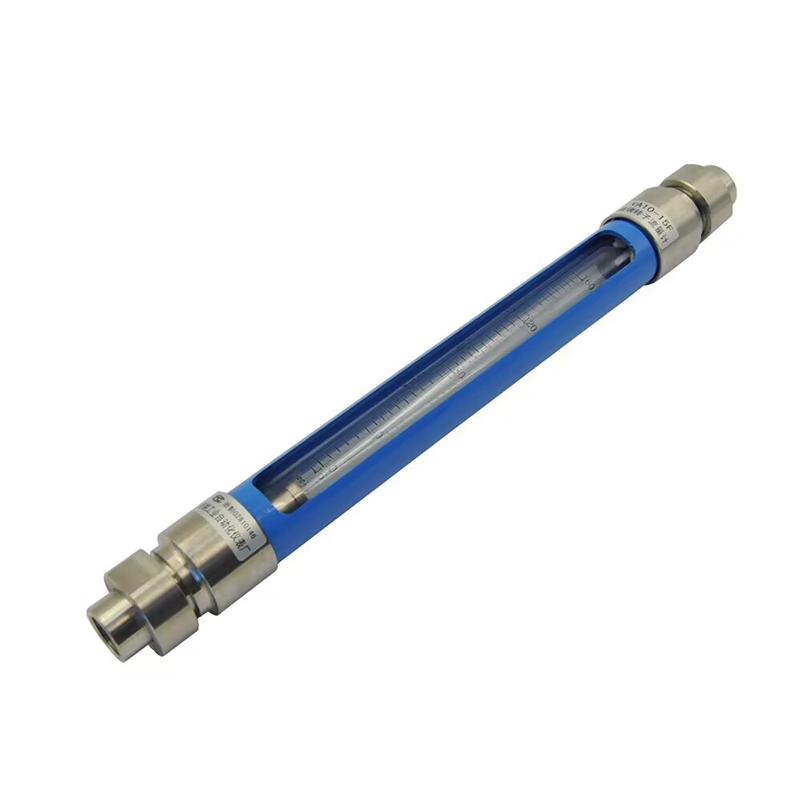

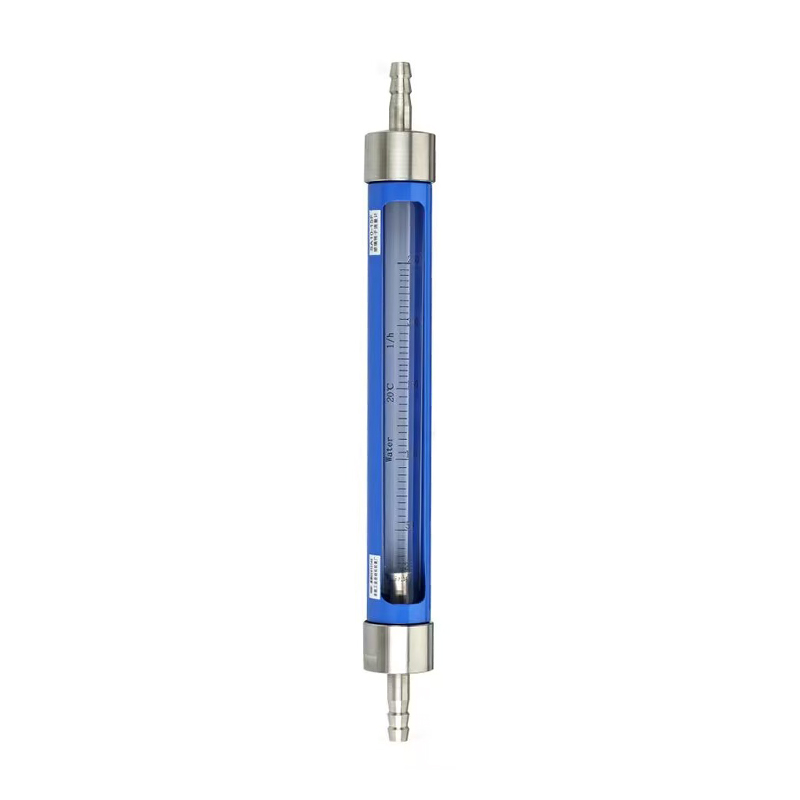

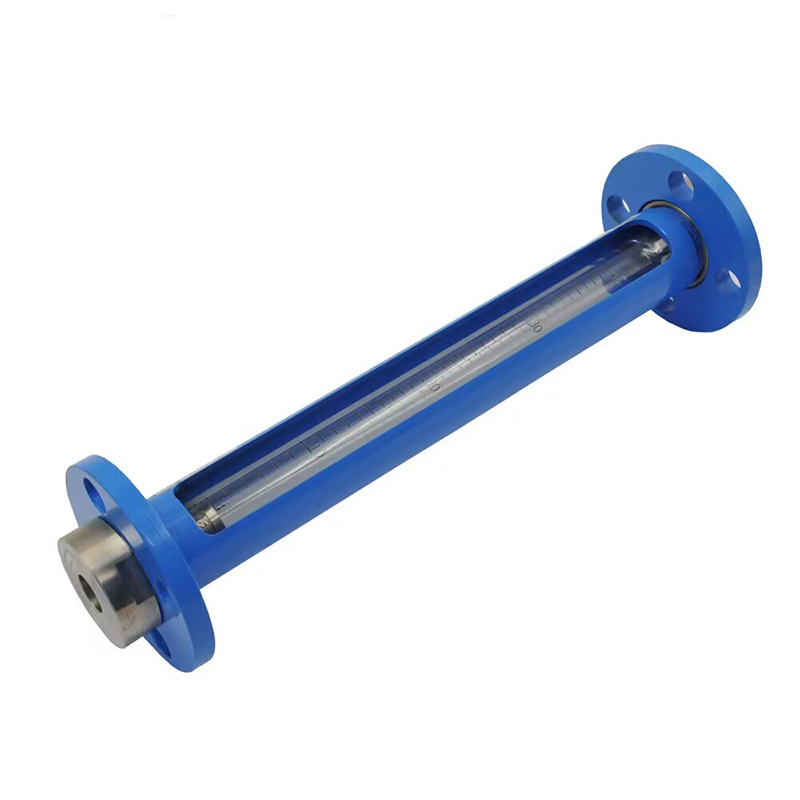

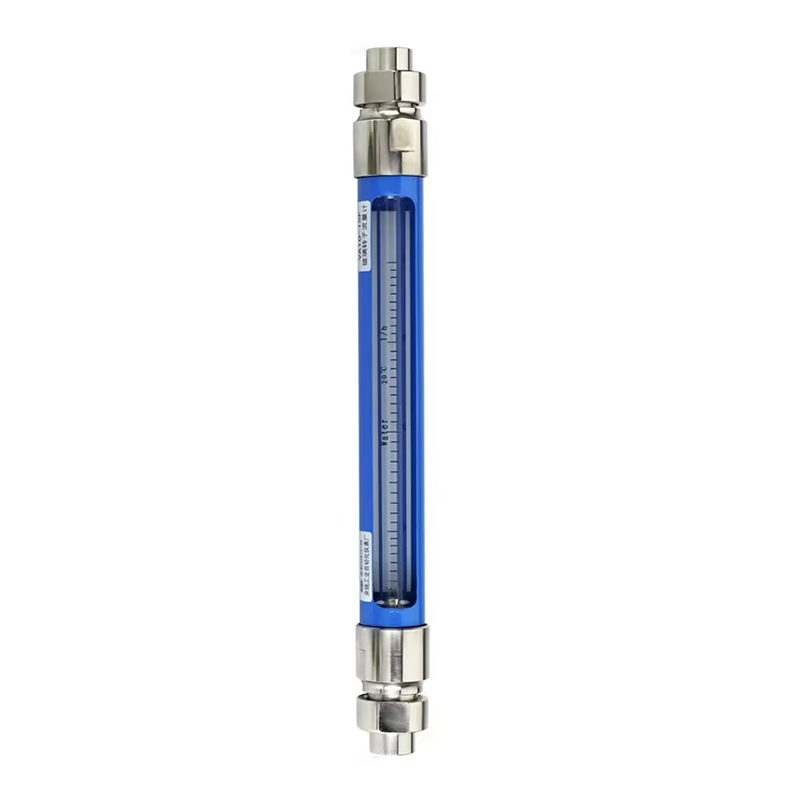

This is a highly accurate glass rotameter with diversified joints and various options of scalings from to percentage.VA10 is a threaded connection.SA10 is a hose connection, and FA10 is a movable flange connection.

Product Description

■Quick Details

Place of Origin

Zhejiang China

Working Pressure

≤1.0 Mpa

Connection

Screw thread or flange or hose

Model NO.

LZB - VA/SA/FA10

Max Temp.

120℃

Application

Water treatment or air treatment

Medium

Water, Liquid, Air, Gas

Customized Support

OEM, ODM, OBM

Float

SS304

Accuracy

±1.5%

Brand Name

ZYIA

Sample

Available



■Introduce

This is a highly accurate glass rotameter with diversified joints and various options of scalings from to percentage.

VA10 is a threaded connection, SA10 is a hose connection, and FA10 is a movable flange connection.



■Product Features

1) High quality, Hot-sell, Factory price

2) The installation is easy and higher measure accuracy, diversified connections


■Main Technical Parameters

Model

Diameter (mm)

Range

Accuracy (±%)

Working Temperature

Working Pressure

Water 20℃ (L/h)

Air101325Pa20℃(m3/h)

VA10-15

SA10-15

FA10-15

15

4-40    6.3-63

10-100    12-120

16-160    20-200

25-250    30-300

36-360    40-400

46-460    63-630

65-650    75-750

0.12-1.2    0.2-2

0.3-3    0.4-4

0.5-5    0.6-6

0.8-8    0.9-9

1.2-12    2-20

1.5

+20~+60℃

+20℃~+120℃

≤1.0MPa

VA10-25

SA10-25

FA10-25

25

40-400    50-500

63-630    80-800

100-1000    120-1200

160-1600    200-2000

250-2500    300-3000

1.6-16    2-20

2.5-25    3-30

4-40    5-50

6-60

VA10-40

SA10-40

FA10-40

40

160-1600    200-2000

250-2500    300-3000

400-4000    500-5000

5-50    6-60

8-80    9-90

12-120

≤0.9MPa

VA10-50

SA10-50

FA10-50

50

250-2500    300-3000

400-4000    500-5000

630-6300    800-8000

1000-10000    1500-15000

4000-16000

10-100 12-120

16-160 20-200

30-300

≤0.7MPa

Note: Model with “F”: Corrosion-resistant model,e.g VA10-15F


■VA10 Outline Dimensions

Diameter(mm)

Display window

Size a*b

VA10 Threaded Connection

L1

C

Thread

15

26*230

408

53

1/2” BSP

25

414

75

1” BSP

40

40*230

428

92

1 1/2” BSP

50

50*230

431

116

2” BSP

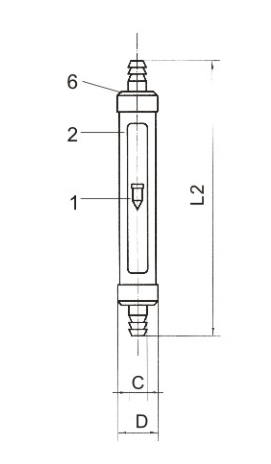

■SA10 Outline Dimensions

Diameter(mm)

Display window

Size a*b

SA10 Threaded Connection

L1

C

D

15

26*230

400

Φ13.5

Φ44

25

 450

Φ27

Φ65

40

40*230

Φ44

Φ80

50

50*230

Φ53

Φ103

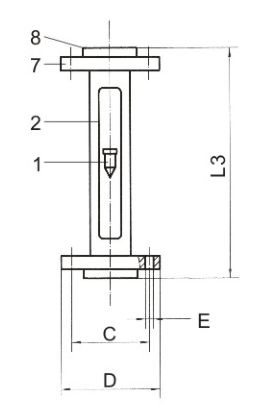

■FA10 Outline Dimensions

Diameter(mm)

Display window

Size a*b

FA10 Threaded Connection

L3

C

D

E

15

26*230

 320

Φ65

Φ95

4-φ14

25

Φ85

Φ115

40

40*230

Φ110

Φ145

4-φ18

50

50*230

Φ125

Φ165




■Material of 10 Series

No.

Material

No.

Material

1

SS304  SS316

5

SS304,45#

2

45#

6

SS304 ,AL

3

AL or SS304

7

SS304,45#

4

45# or SS304

8

AL, SS304
