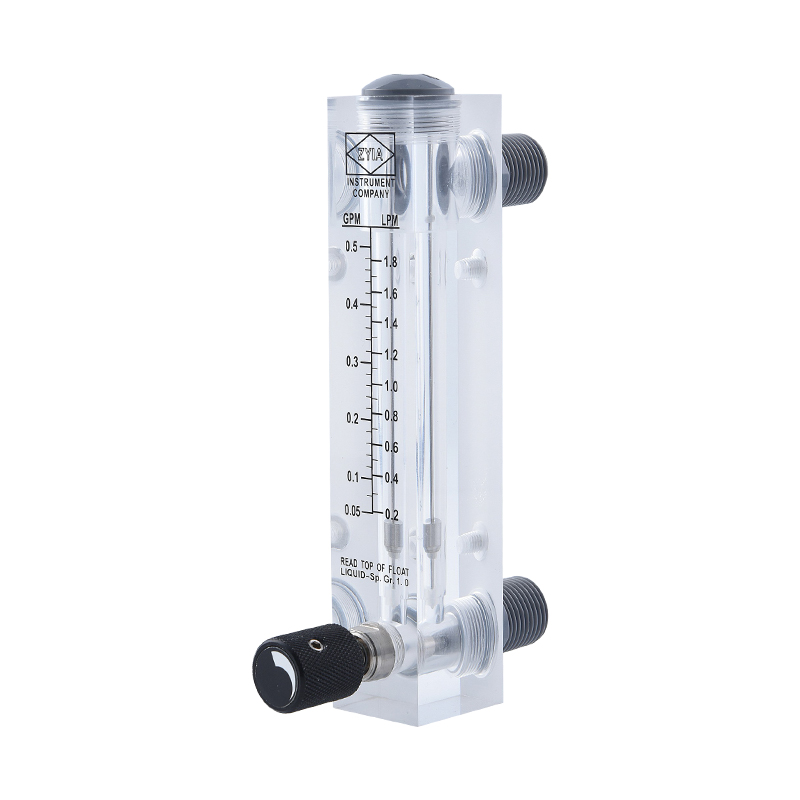

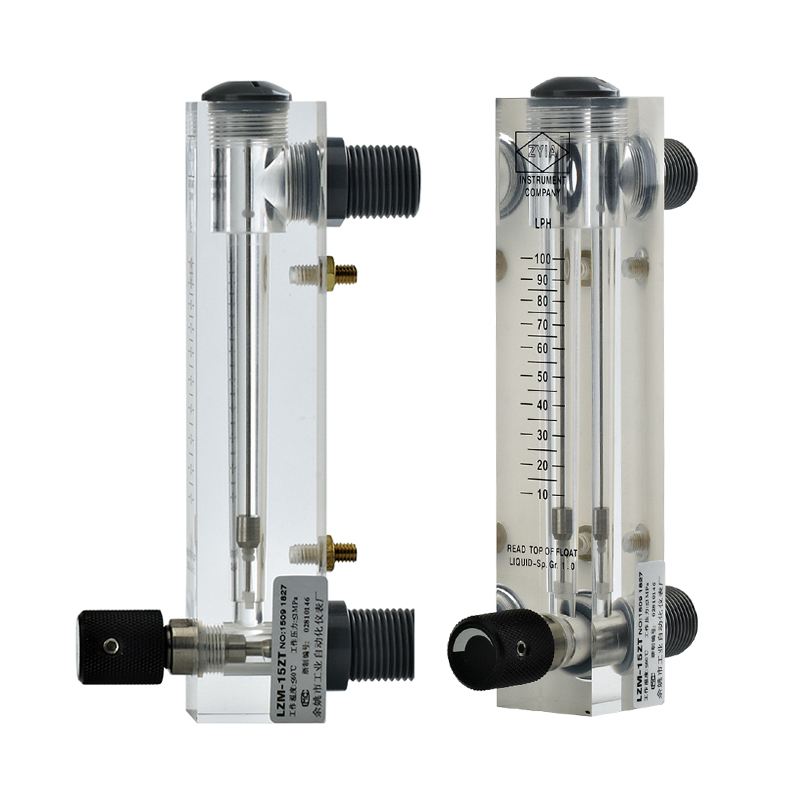

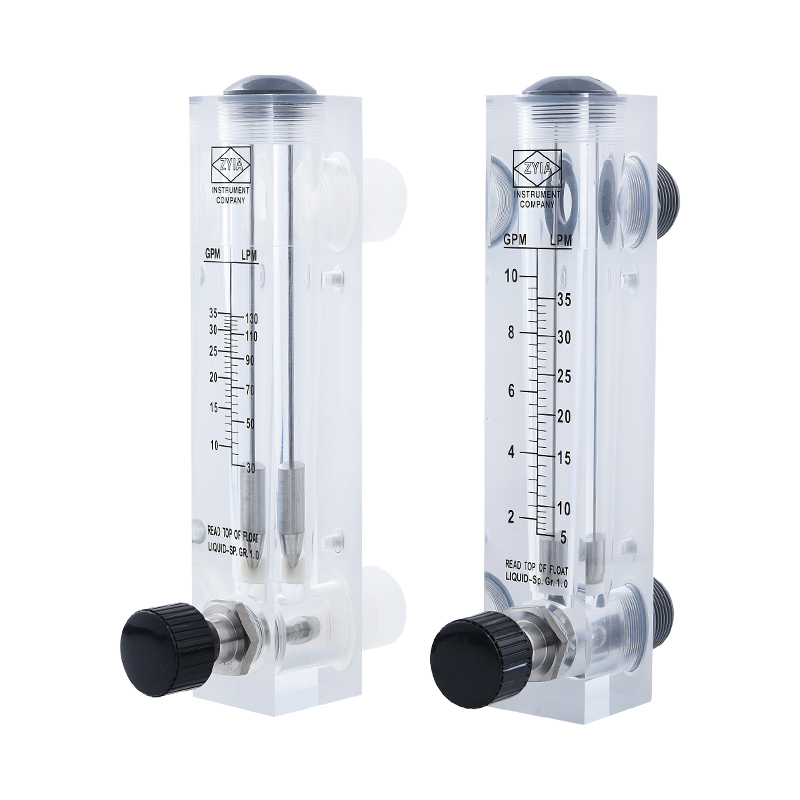

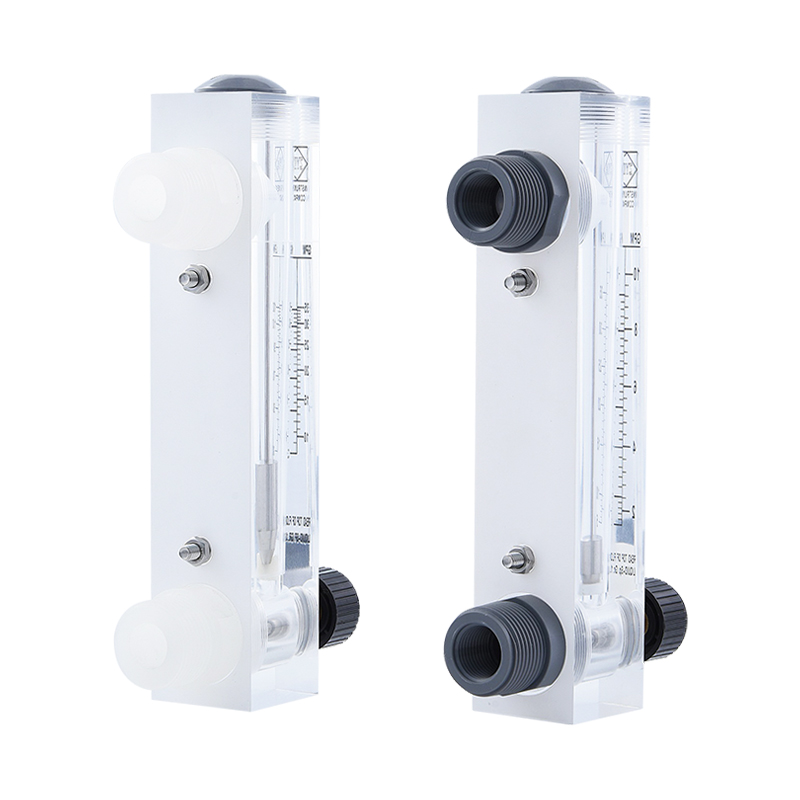

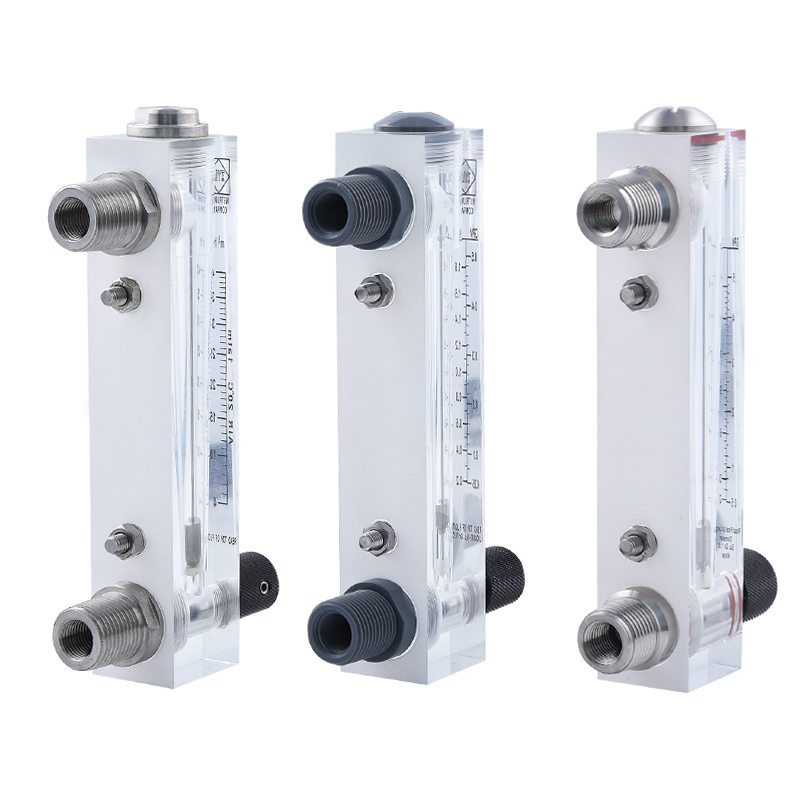

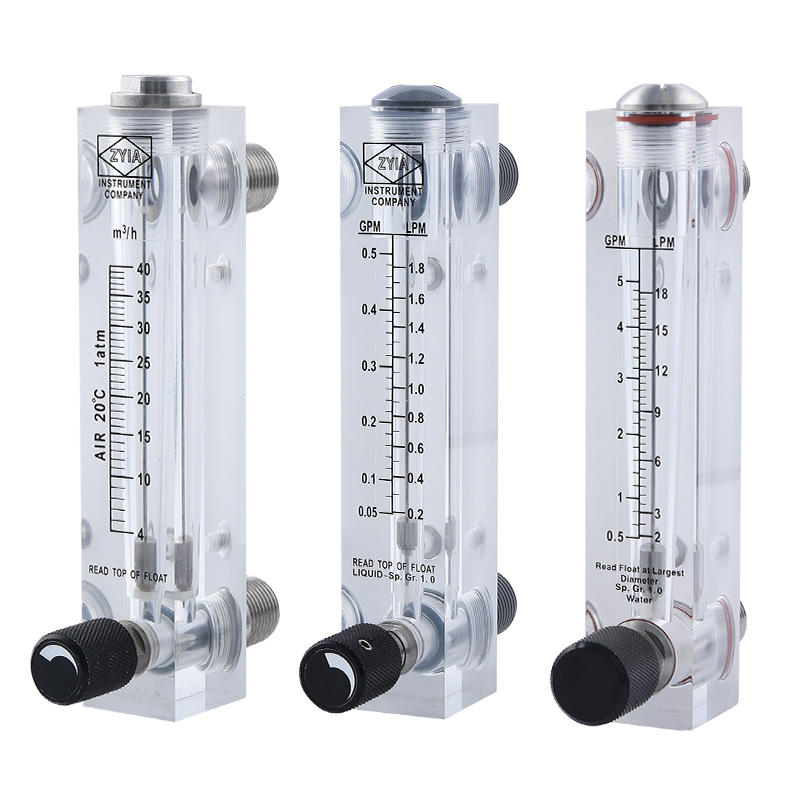

LZM-ZT Series Low Cost Adjustable Flow Meter

The LZM series flowmeter is a new type of flowmeter mainly composed of organic glass, used to measure single-phase non pulsating flow of liquids or gases. Its characteristics are beautiful appearance, high transparency, intuitive reading, light weight, easy installation, not easy to break, and long service life.

Product Description

Quick Details

Place of Origin

Zhejiang China

Float

SS316

Connection

Male Thread

Female Thread

Model NO.

LZM -ZT Series

Fitting

1/4'' female

1/2'' male

1'' male

Body

Acrylic

Medium

Gas, Air, Water

Customized Support

OEM, ODM, OBM

Diameter

DN15mm,25mm

Accuracy

±4%

Brand Name

ZYIA

Fitting

ABS

Working Pressure

≤ 1 Mpa

Max Temp.

60℃

O-ring

Silicon rubber



Introduce

LZM - ZT Series is fitting for measuring and adjusting small flow rate, it has compact configuration .A specially designed fitting permit easy to read.



■Product Features

1) Optional flow control needle-type adjustment valve.

2) Durable and long service,adopt high quality material.

3) High definition scale,convenient and accurate reading.



■Technical Parameters of LZM-ZT Series Flow Meter

Model

Range

Screw

Thread

Accuracy

Size ( mm )

GPM(Liquid)

LPM(Liquid)

Nm3/h(Gas)

A

B

c

D

E

F

G

H

L2M-15ZAT



15-150LPH

0.1-1  0.16-1.6

0.3-3  0.4-4

(M)1/2" BSPT

(F)1/4'" BSPT

±4%

157

32

150

35

25

60

25

110

LZM-15ZT



10-100LPH

0.04-0.4   0.16-1.6

0.1-1  0.25-2.5

0.3-3  0.4-4

0.6-6  0.8-8

1-10  1.6-16

2.5-25  4-40

175

32

168

35

25

76

25

127



16-160LPH



25-250LPH

0.1-1

0.5-4

0.2-2

1-7

0.3-3

1-11

0.5-5

2-18

L2M-25ZT

2-10

5-35

20-100  35-350

40-160  50-250

(M)1" BSPT

234

45

226

46

33

100

37

160

4-14

10-50

6-20

20-70

10-35

30-130

10-40

30-150

15-45

50-170



■The material of the LZM-ZT series Flow Meter

Fitting

Float

O-ring

   1. ABS

   2. PP

√3. PVC

   4. Brass

   5. Brass chromeplate

   6. SS

√1. SS



√1. Silicon rubber

   2. Fluorin rubber

Note: Mark with √, the material of the Flow Meter is the General Configuration.

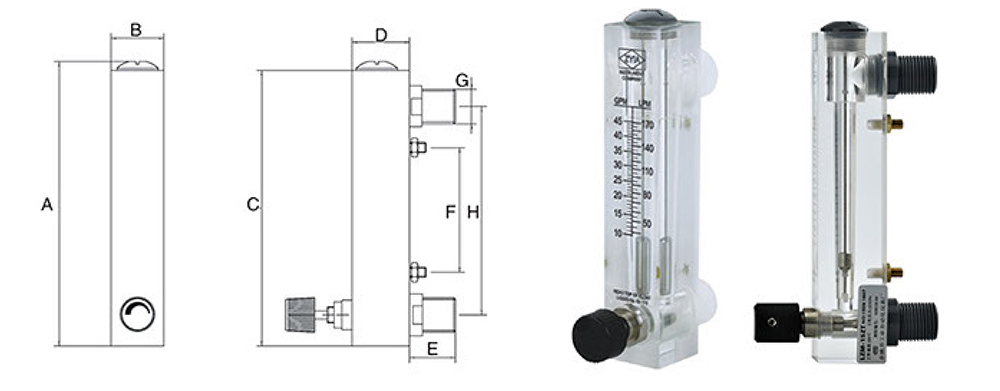

The outline size of LZM -ZT Series Flow Meter

Model

Size(mm)

A

B

C

D

E

F

G

H

LZM-15ZAT

157

32

150

35

25

60

25

110

LZM-15ZT

175

  32

168

35

25

76

25

127

LZM-25ZT

234

45

226

46

33

100

37

160
