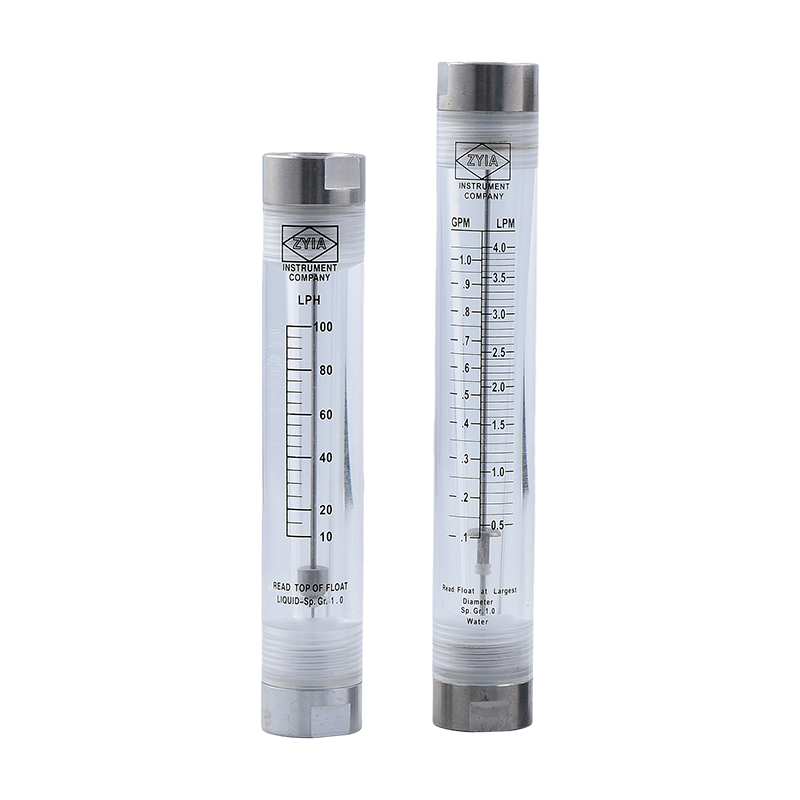

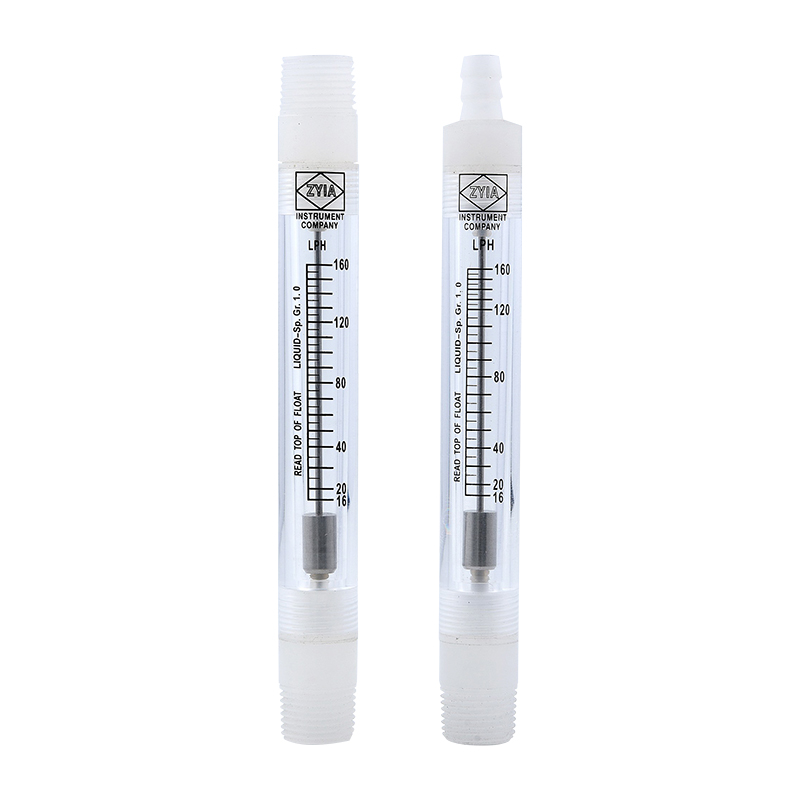

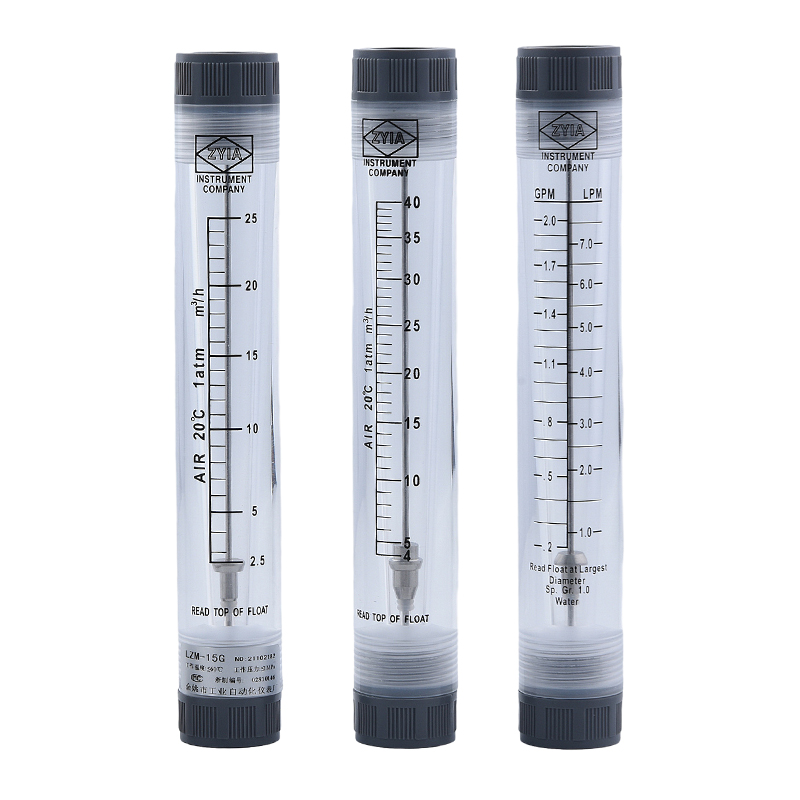

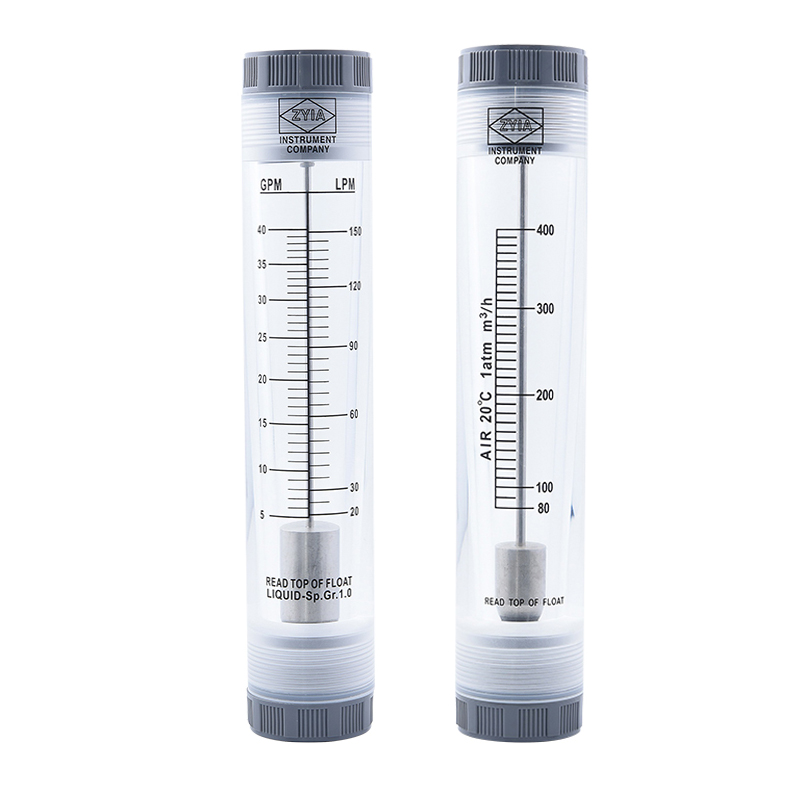

LZM-G Series Inline Tube Type Float Flow Meter

The pipeline flowmeter also belongs to the float flowmeter, and the measuring tube is made of transparent organic glass. It is mainly used for water purification and environmental engineering equipment matching, and can also be used in departments such as chemical, petroleum, light industry, medicine, fertilizer, food, papermaking, and scientific research. It is used for the single-phase non-polarizing flow of liquid in vehicles and is suitable for measuring noncorrosive media. Pipeline flow meters have the characteristics of high transparency, intuitive reading, not easy to break, lightweight, long service life, and convenient installation and connection.

Product Description

Quick Details

Place of Origin

Zhejiang China

Float

SS316

Connection

Male Thread Female Thread

Model NO.

LZM -G Series

Fitting

3/4'' female

1/2'' male

1'' male

Body

Acrylic

Medium

Gas, Air, Water

Customized Support

OEM, ODM, OBM

Diameter

DN15mm-DN75

Accuracy

±4%

Brand Name

ZYIA

Fitting

ABS

Working Pressure

≤ 1 Mpa

Max Temp.

60℃

O-ring

Silicon rubber



Introduce

LZM - G  real value in general purpose rotameters. LZM - G in-line flow meter also named Acrylic tube rotameter, acrylic tube flowmeter. SS or ABS or PVC or PP or Brass Connection.



Product Features

1.Tough machined acrylic meter body, highly polished to a clear finish.

2.Direct reading permanent scale.

3.White back reflector for easy reading.

4.316 stainless steel rod guided floats.

5.Acceptable in direct sunlight applications.

■Technical Parameters of LZM-G Series Tube Type Flow Meter

Model

Range

Screw Thread

Size ( mm )

GPM(Liquid)

LPM(Liquid)

Nm3/h(Gas)

Accuracy

A

B

c

LZM-10G



2.5-25LPH



(M)1/2"BSP

(M)1/2"NPT

±4%

187

130

22

2.45LPH

3.60LPH

10-100LPH

16-160LPH

LZM-15GD



4-40LPH

0.3-3

(F) 1/2" BSP

180

150

32

10-100LPH

LZM-15G

LZM-15GF

0.1-1

0.5-4

0.8-8
1-10

1.6-16
2.5-25

4-40

210

180

32

0.2-2

1-7

0.5-5

1.9-18

1.5-9

400-2000LPH

LZM-20G

LZM-20GF

1-10

4-36

6-60

(F) 3/4"BSP

278

236

45



100-1000LPH

L2M-25G

LZM-25GF

1-10

4-36

6 60
10-100

★15-140
16-160

25-250
35-350

80-400

(F) 1"BSP

265

235

51

1-15

5-60

2-20

10-70

5-30

20-110

5-40

20-150

5-45

20-170

20-60

80-220


■The material of LZM-G series Flow Meter

Fitting

Float

O-ring

   1. ABS

   2. PP

√3. PVC

   4. Brass

   5. Brass chromeplate

   6. SS

√1. SS

   2. Agata ball

   3. PTFE

√1. Silicon rubber

   2. Fluorin rubber

   3. Butyl

Note: Mark with √,the material of the Flow Meter is the General Configuration.

Note: For buyer' s convenience, we design two constructions for this series of flowmeter, one is circular, and the other one is quadrate, their measure range is same, L ZM-G Circular tube type flowmeter LZM-GF Quadrate tube type flowmeter.


The outline size of LZM - G Series Flow Meter

Model

Size(mm)

A

B

C

LZM-10G

187

130

22

LZM-15GD

180

 150

32

LZM-15G

LZM-15GF

210

180

32

LZM-20G

LZM-20GF

278

236

45

LZM-25G

LZM-25GF

265

235

51

Note: For buyer s convenience, we design two constructions for this series of flowmeter, one is circular, and the other one is quadrate, their measure range is same, LZM-G Circular  tube type flowmeter LZM-GF Quadrate tube type flowmeter
