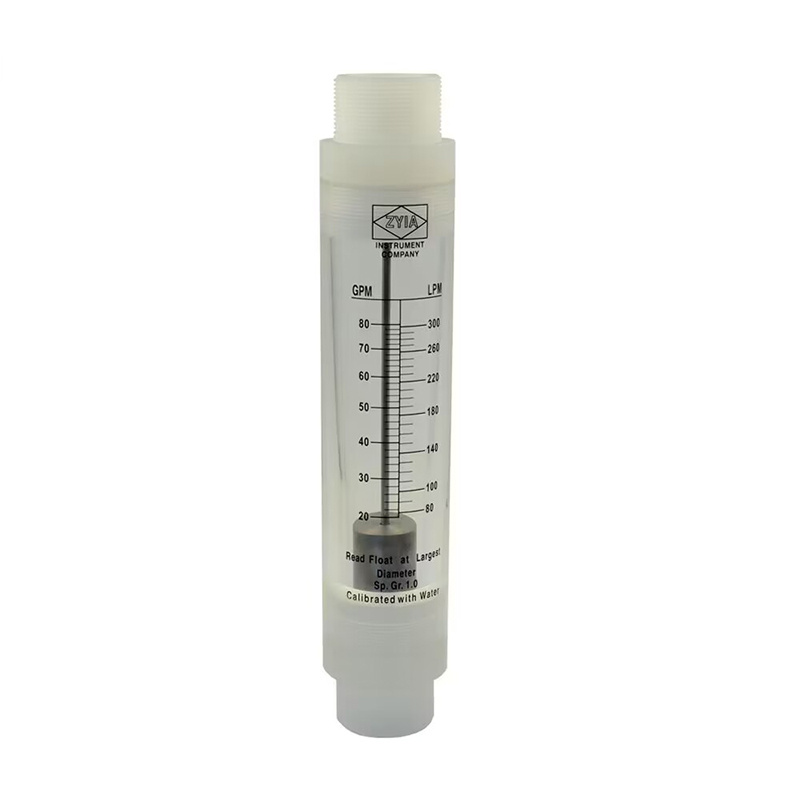

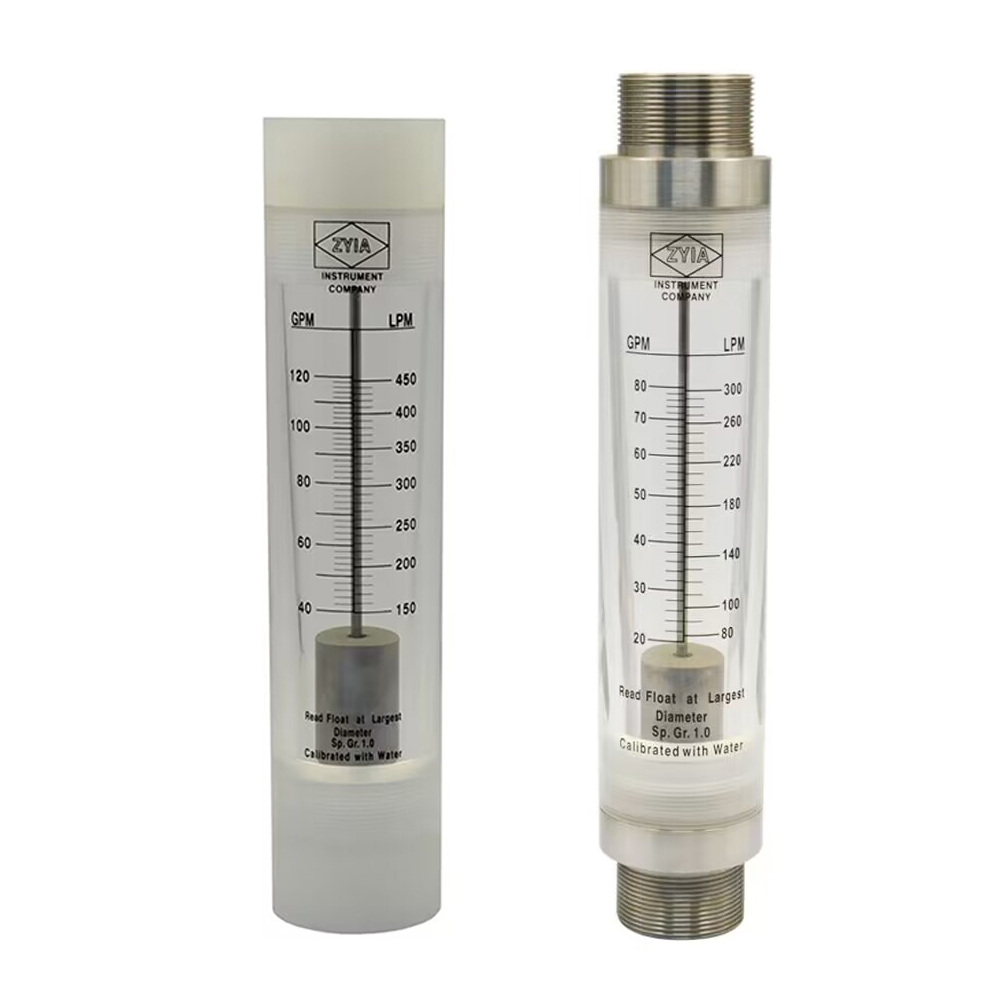

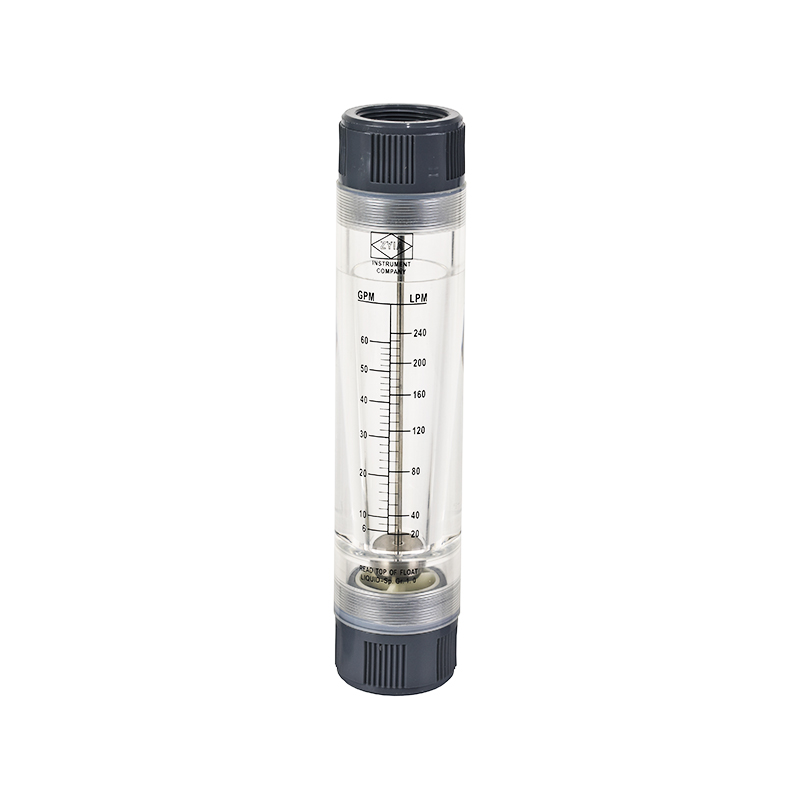

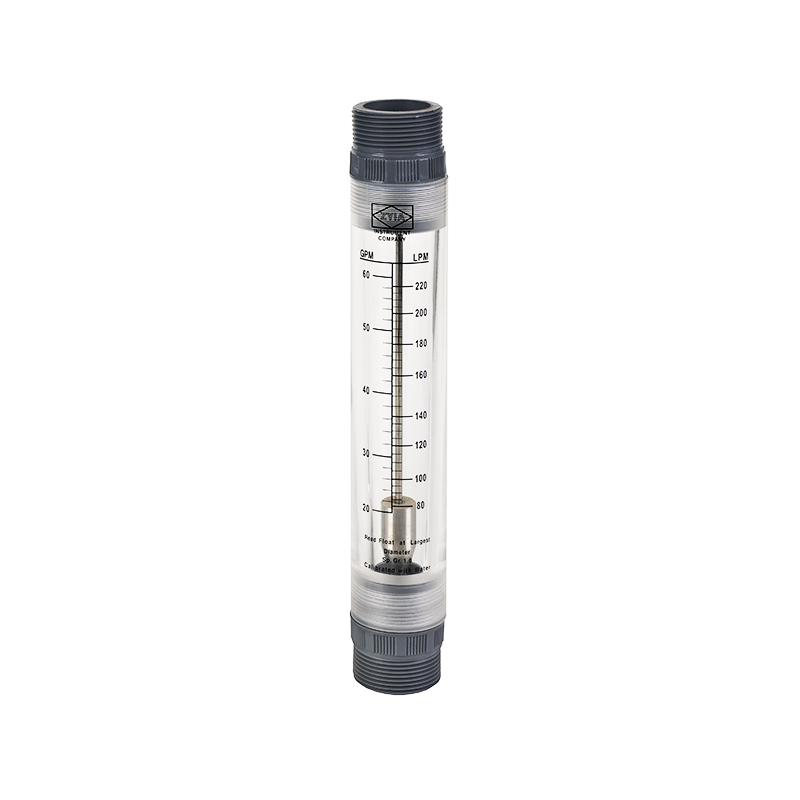

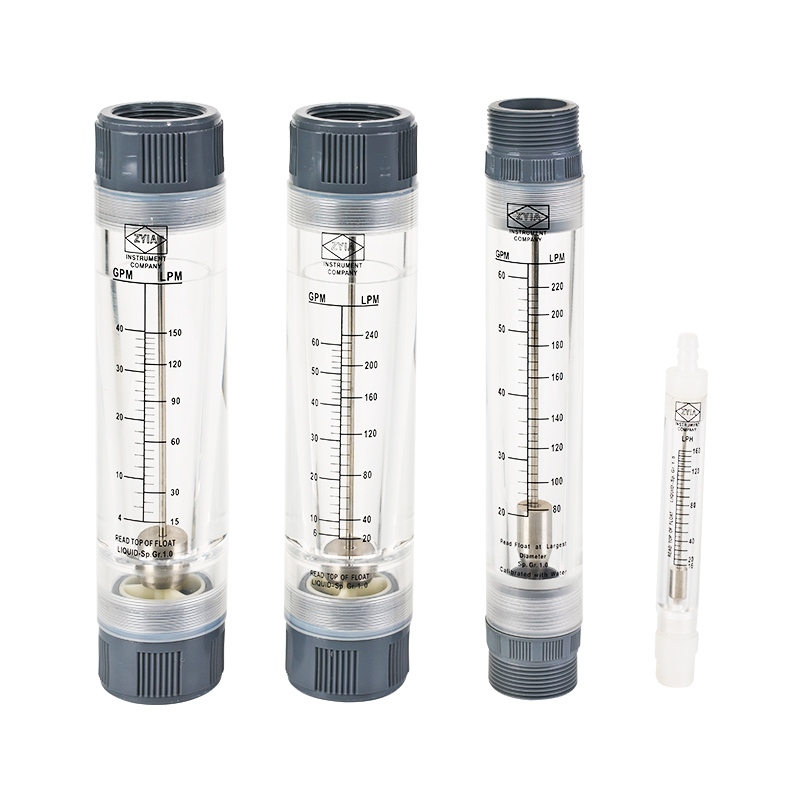

LZM-G Series Mechanical Type Water Flow Meter

The pipeline flowmeter also belongs to the float flowmeter, and the measuring tube is made of transparent organic glass. It is mainly used for water purification and environmental engineering equipment matching, and can also be used in departments such as chemical, petroleum, light industry, medicine, fertilizer, food, papermaking, and scientific research. It is used for the single-phase non-polarizing flow of liquid in vehicles and is suitable for measuring noncorrosive media. Pipeline flow meters have the characteristics of high transparency, intuitive reading, not easy to break, lightweight, long service life, and convenient installation and connection.

Product Description

Quick Details

Place of Origin

Zhejiang China

Float

SS316

Connection

Male Thread Female Thread

Model NO.

LZM -G Series

Fitting

3/4'' female

1/2'' male

1'' male

Body

Acrylic

Medium

Gas, Air, Water

Customized Support

OEM, ODM, OBM

Diameter

DN15mm-DN75

Accuracy

±4%

Brand Name

ZYIA

Fitting

ABS

Working Pressure

≤ 1 Mpa

Max Temp.

60℃

O-ring

Silicon rubber



Introduce

LZM - G  real value in general purpose rotameters. LZM - G in-line flow meter also named Acrylic tube rotameter, acrylic tube flowmeter. SS or ABS or PVC or PP or Brass Connection.



Product Features

1.Tough machined acrylic meter body, highly polished to a clear finish.

2.Direct reading permanent scale.

3.White back reflector for easy reading.

4.316 stainless steel rod guided floats.

5.Acceptable in direct sunlight applications.



■Technical Parameters of LZM-G Series Tube Type Flow Meter

Model

Range

Screw Thread

Accuracy

Size ( mm )

GPM(Liquid)

LPM(Liquid)

Nm3/h(Gas)

A

B

C

LZM-40G

LZM-40GF

1-10

4-36

6-60
10-100

★15-140
16-160

25-250
35-350

80-400

(M) 11/2" BSP

±4%

306

235

51

1-15

5-60

2-20

10-70

5-30

20-110

5-40

20-150

5-45

20-170

20-60

80-220

LZM-40GB

4-40

15-150



(F) 11/2" BSP

302

230

68

6-60

20-240

8-80

50-300

10-100

50-350

LZM-50G

LZM-50GF

20-80

80-300

100-500

120-600

300-850

400-1200

500-1400

(F/M) 2"BSP

380 (M)

270

75

20-100

80-360

40-120

150-450

50-150

190-560

340(F)

60-200

220-750

L2M-75GF

120-300

450-1100



(F) 3"BSP

392

298

110X110



■The material of LZM-G series Flow Meter

Fitting

Float

O-ring

   1. ABS

   2. PP

√3. PVC

   4. Brass

   5. Brass chromeplate

   6. SS

√1. SS

   2. Agata ball

   3. PTFE

√1. Silicon rubber

   2. Fluorin rubber

   3. Butyl

Note: Mark with √,the material of the Flow Meter is the General Configuration.

Note: For buyer' s convenience, we design two constructions for this series of flowmeter, one is circular, and the other one is quadrate, their measure range is same, L ZM-G Circular tube type flowmeter LZM-GF Quadrate tube type flowmeter.

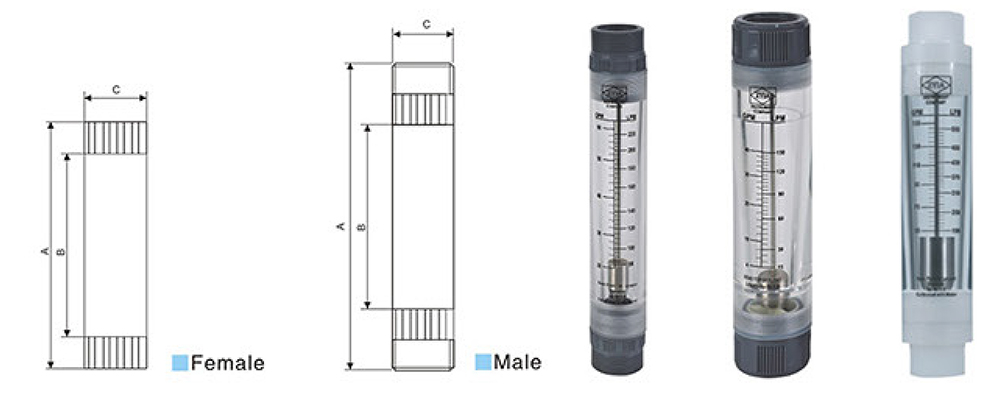

The outline size of LZM - G Series Flow Meter

Model

Size

A

B

C

LZM-40G

LZM-40GF

306

235

51

LZM-40GB

302

230

68

LZM-50G

380(M)

270

75

LZM-40GB

340(F)

LZM-75GB

392

298

110×110

Note: For buyer s convenience, we design two constructions for this series of flowmeter, one is circular, and the other one is quadrate, their measure range is same, LZM-G Circular tube type flowmeter LZM-GF Quadrate tube type flowmeter.
