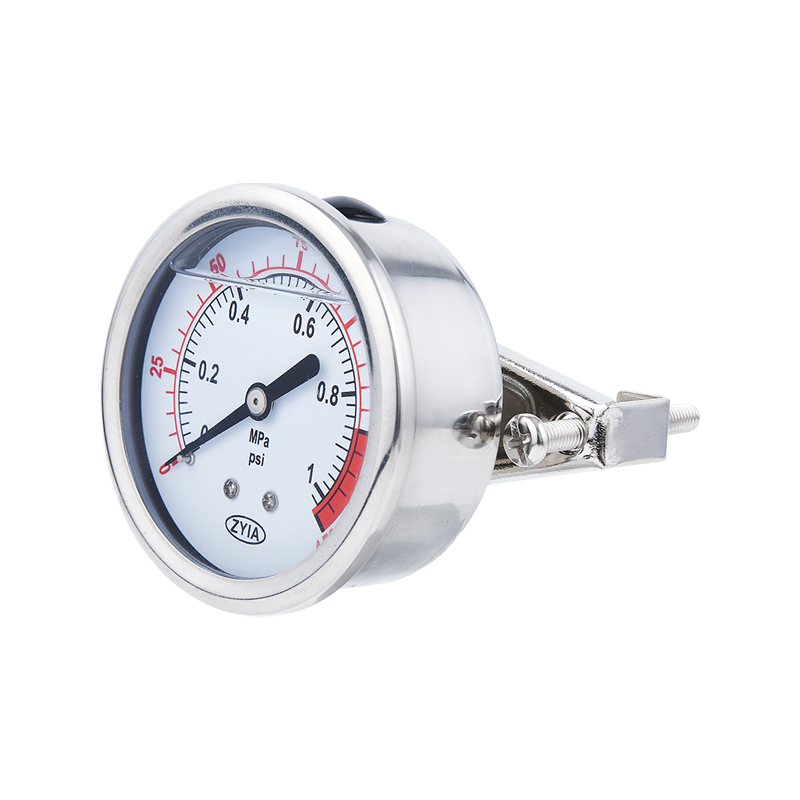

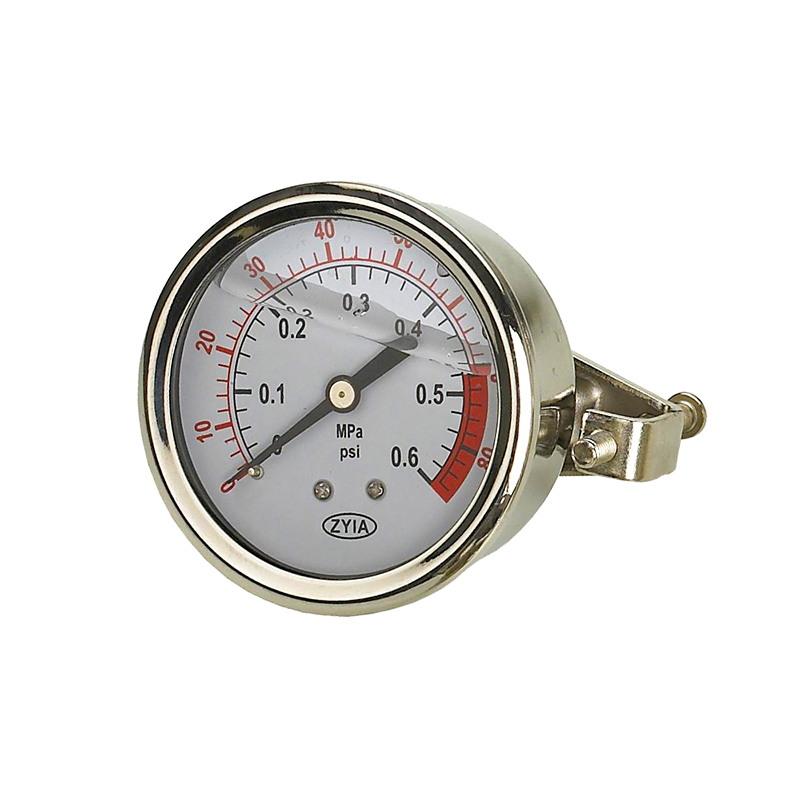

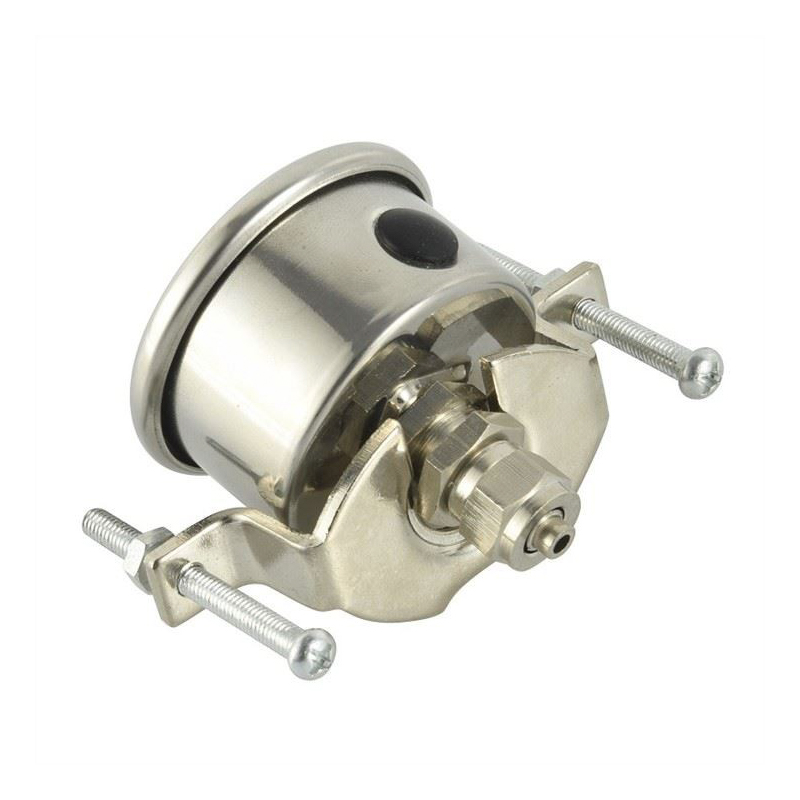

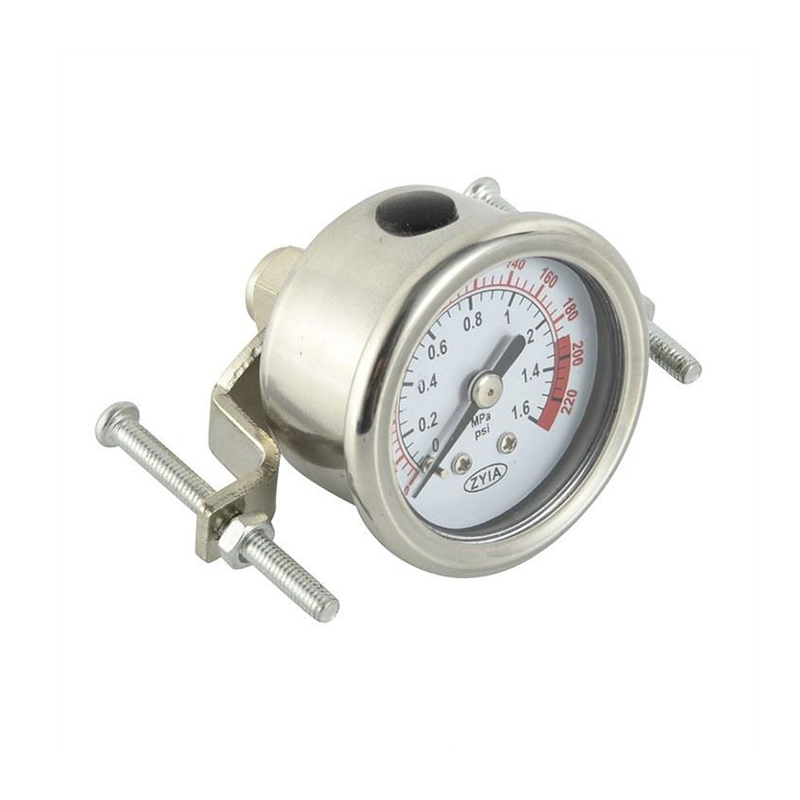

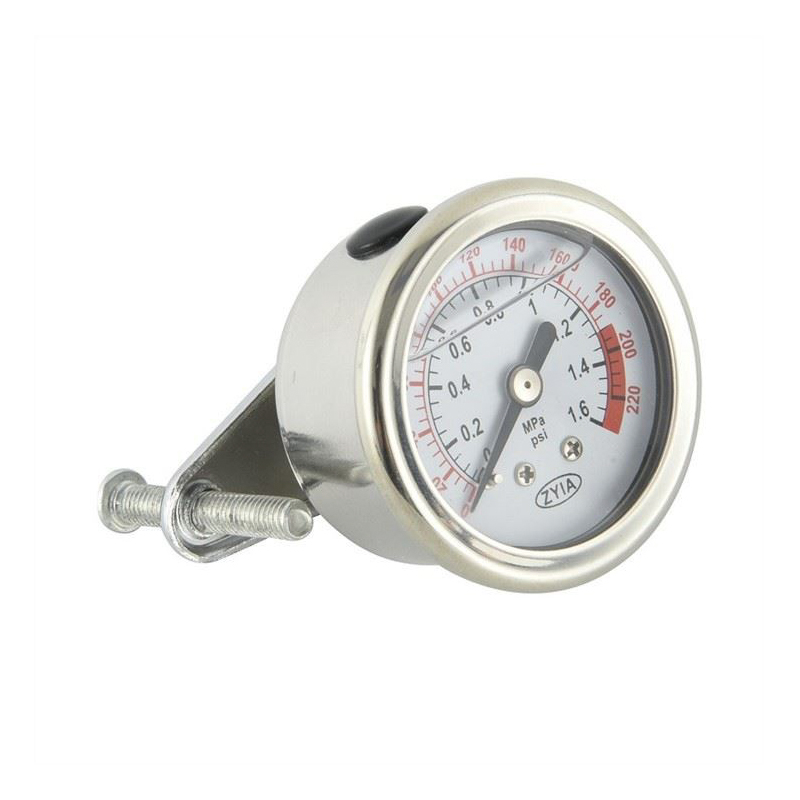

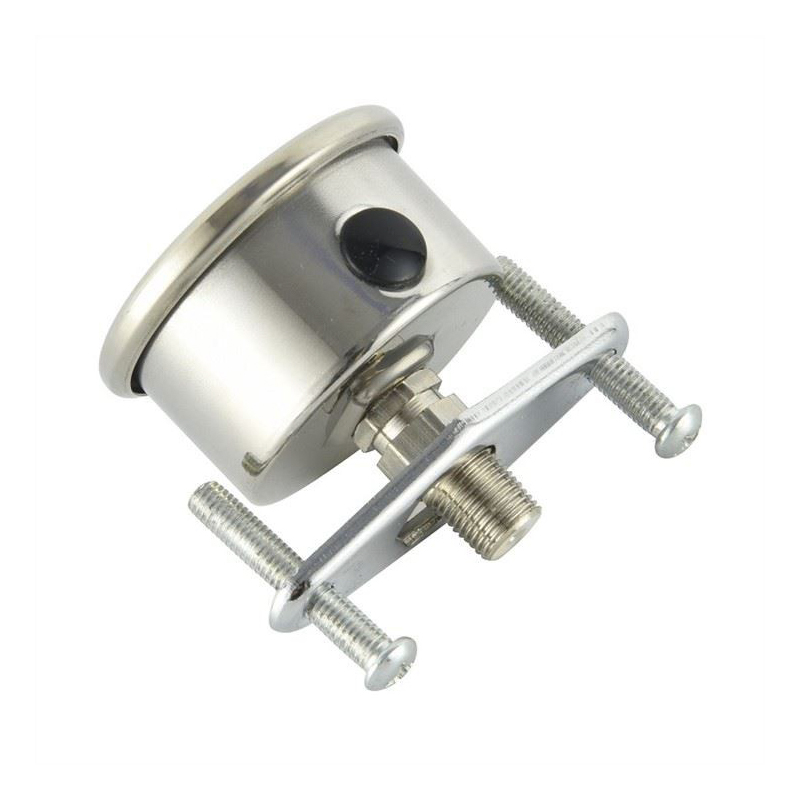

YTN-Z Series Pressure Gauge For Water

YTN-Series liquid filed pressure gauge fill damping fluid (silicone oil, glycerol) in the gauge and other measures to ensure that it has excellent function of impact resistance and aseimatic So it is safe and reliable, with stable performance and long useful-life It is apply to mechanical, Chemical, metallury, mine, Electrical, Measure the pressure of medium is non corrosive for copper and alday.

If measure the pressure of high corrosive medium, all material of pressure gauge must be stainlee stell.

Product Description

Diameter

Model

Installation

Range
(Mpa)

Thread

Casing Material

Accuracy



11/2"

YTN-40

Bottom connection

0.1
0.16
0.25
0.4、0.6
1、1.6
2.5、4、6

G 1/8"
ZG1/8"
Z1/8"
M10×1

SS304

±2.5

YTN-40Z

Back connection

YTN-40ZT

Back Connection
with border

2"

YTN-50

Bottom Connection

0.1
0.16
0.25
0.4、0.6
1、1.6
2.5、4
6、10
16、25
40

G 1/8"
G1/4"
ZG1/8"
ZG1/4"
Z1/8"
Z1/4"
M14×1.5

SS304

YTN-50Z

Back connection

YTN-50ZT

 Back Connection
with border

21/2"

YTN-60

Bottom connection

0.1
0.16
0.25
0.4、0.6
1、1.6
2.5、4
6、10
16、25
40、60

G 1/8"
G1/4"
ZG1/8"
ZG1/4"
Z1/8"
Z1/4"
M14×1.5

SS304

YTN-60Z

Back connection

YTN-60ZT

Back Connection
with border

3"

YTN-75

Bottom connection

0.1
0.16
0.25
0.4、0.6
1、1.6
2.5、4
6、10
16、25
40、60

G 1/8"
G 1/4"
ZG1/8"
ZG1/4"
Z1/8"
Z1/4"
M14*×1.5

SS304

YTN-75Z

Back connection

YTN-75ZT

Back Connection
with border

4"

YTN-100

Bottom Connection

0.1
0.16
0.25
0.4、0.6
1、1.6
2.5、4
6、10
16、25
40、60

G 1/2"
ZG1/2"
G3/8"
ZG3/8"
Z1/2"
Z3/8"
M20×1.5

SS304

±1.6

YTN-100Z

Back connection

YTN-100ZT

Back Connection
with border

Measurement Conversion:1Mpa=10bar=10.2kg/cm3=145psi

Note:G=BSP ZG=BSPT Z=NPT



For Order

Please specify the model, specification and code

Diameter

Installation

Measure range

Case material

Fitting matenal

Thread

Module

Spring pipe

1-11/2"

2-2"

3-21/2"

4-3"

5-4"



1-Bottom connection

2-Back connection

3-Back connection withe border



√1-SS304

√1-Brass

   2-SS

NPT

BSPT

BSP

√1-Brass

   2-SS

√1-phosphor copper

   2-SS

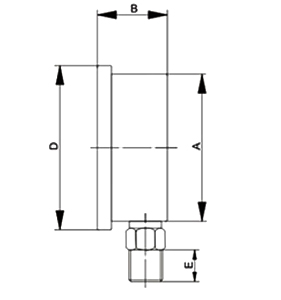

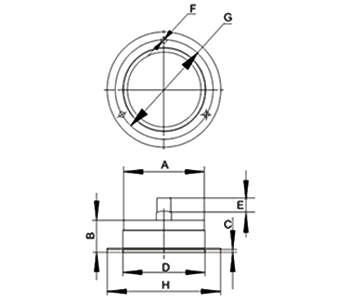

Installation Specification (mm)

Model

40

50

63

75

100

A

Φ42

Φ52

Φ61

Φ75

Φ198

B

26

29

31

31

37

C

3

3

3

3

3

D

Φ47

Φ58

Φ68

Φ82

Φ109

E

11

14

14

14

17

F

3-Φ3.5

3-Φ4

3-Φ5

3-Φ5

3-Φ4

G

Φ52

Φ64

Φ78

Φ91

Φ115

H

Φ62

Φ73

Φ88

Φ105

Φ130

Measurement Conversion : 1Mpa=10bar=10.2kg/cm3=145psi

Note: G=BSP ZG=BSPT Z=NPT

Bottom connection

Back connection

Back connection withe border
