LZB-VA/SA/FA20 Series Threaded Hose Flange Glass Tube Rotameter

This is a highly accurate glass rotameter with diversified joints and various options of scalings from to. Percentage.

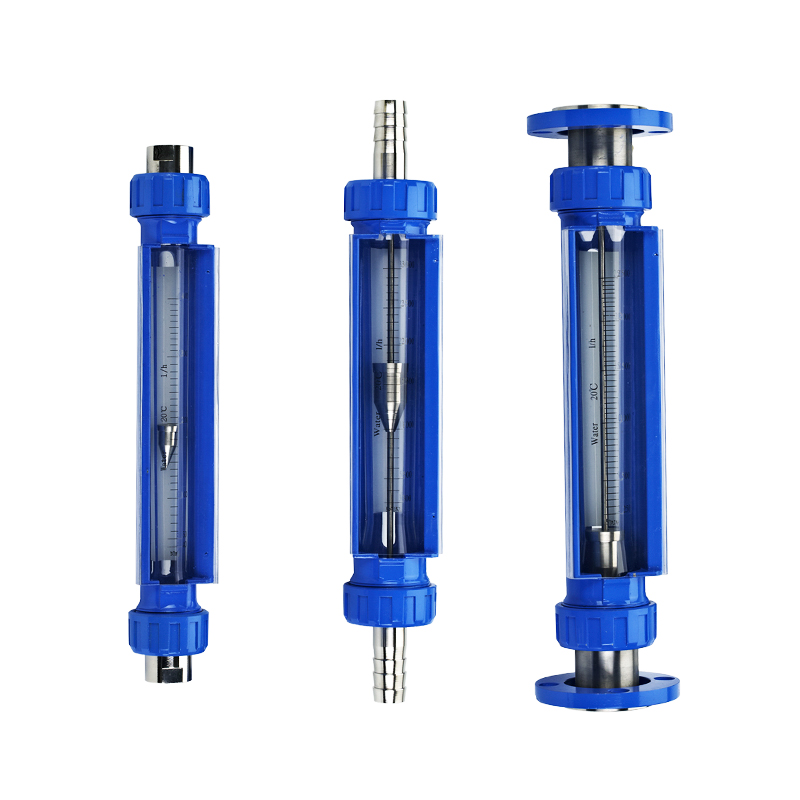

VA20 is threaded connection.SA20 is hose connection, FA20 is movable flange connection.

Product Description

■Quick Details

Place of Origin

Zhejiang China

Working Pressure

≤1.0 Mpa

Connection

Screw thread or flange or hose

Model NO.

LZB - VA/SA/FA20

Max Temp.

120℃

Application

Water treatment or air treatment

Medium

Water, Liquid, Air, Gas

Customized Support

OEM, ODM, OBM

Float

SS304

Accuracy

±1.5%

Brand Name

ZYIA

Sample

Available



Introduce

This is a highly accurate glass rotameter with diversified joints and various options of scalings from to percentage.

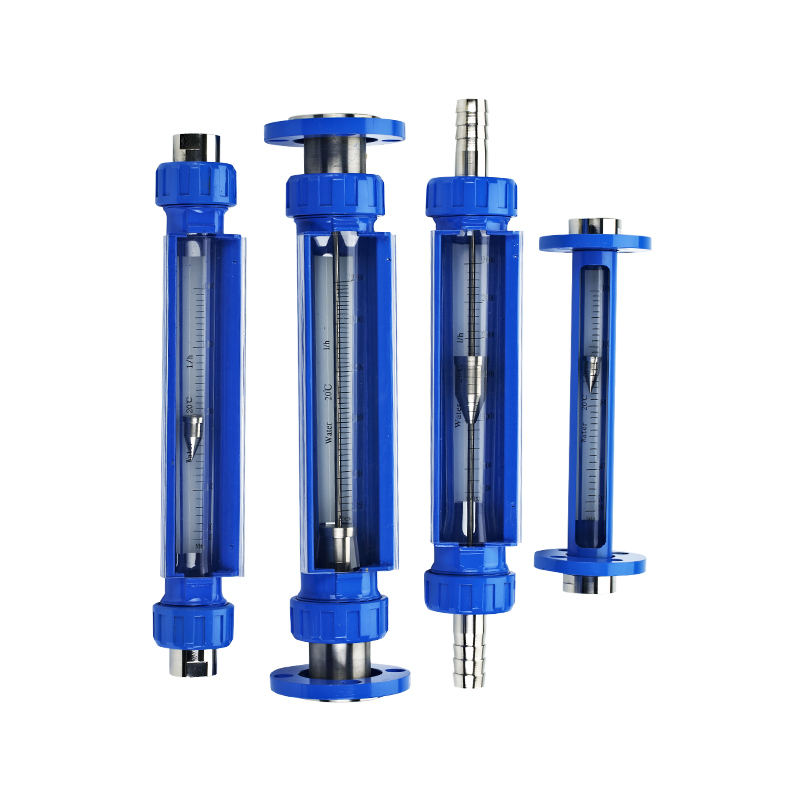

VA20 is a threaded connection, SA20 is a hose connection, and FA20 is a movable flange connection.



■Product Features

1) High quality, Hot-sell, Factory price.

2) The installation is easy and has higher measure accuracy, with diversified connections.


■Main Technical Parameters

Model

Diameter (mm)

Range

Accuracy (±%)

Working Temperature

Working Pressure

Water 20℃ (L/h)

Air101325Pa20℃(m3/h)

VA20-15

SA20-15

FA20-15

15

4-40   6.3-63

10-100   12-120

16-160   20-200

25-250   30-300

36-360   40-400

46-460   63-630

65-650   75-750

0.12-1.2   0.2-2

0.3-3   0.4-4

0.5-5   0.6-6

0.8-8   0.9-9

1.2-12   2-20

1.5

+20~+60℃

+20℃~+120℃

≤1.0MPa

VA20-25

SA20-25

FA20-25

25

40-400   50-500

63-630   80-800

100-1000   120-1200

160-1600   200-2000

250-2500   300-3000

1.6-16   2-20

2.5-25   3-30

4-40   5-50

6-60

VA20-40

SA20-40

FA20-40

40

160-1600   200-2000

250-2500   300-3000

400-4000   500-5000

5-50   6-60

8-80   9-90

12-120

≤0.9MPa

VA20-50

SA20-50

FA20-50

50

250-2500   300-3000

400-4000   500-5000

630-6300   800-8000

1000-10000   1500-15000

4000-16000

10-100   12-120

16-160   20-200

30-300

≤0.7MPa

Note: Model with“F”: corrosion-resistant model, e.g. VA20- 15F


■Material of LZB-VA/SA/FA20 series

No.

Material

No.

Material

1

SS304 SS316

4

SS304, 45#

2

AL

5

SS304, AL

3

AL

6

SS304, 45#

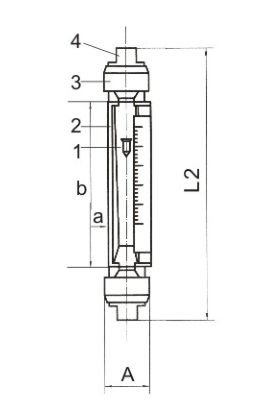

■VA 20 Outline Dimension

Diameter (mm)

VA20 Threaded Connection

Display window size a x b

L2

A

Thread

15

33x235

375

58

1/2"BSP, 1/2"NPT

25

50x240

74

1"BSP, 1"NPT

40

65x235

92

11/2"BSP, 11/2"NPT

50

85x230

112

2"BSP, 2"NPT

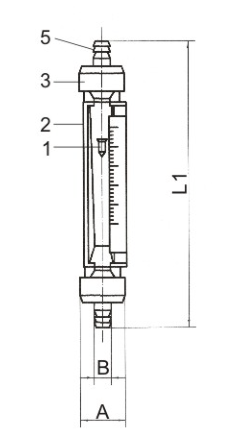

■SA 20 Outline Dimension

Diameter (mm)

SA20 Hose Connection

Display window size a x b

L1

A

B

15

33x235

400

58

17

25

50x240

450

74

30

40

65x235

92

44

50

85x230

112

54

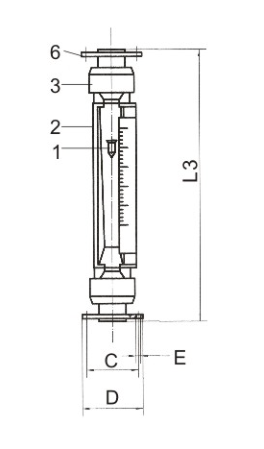

■FA 20 Outline Dimension

Diameter (mm)

FA 20 Flange Connection

Display window size a x b

L3

D

c

E

15

33x235

425

Ф95

Ф65

4-Ф14

25

50x240

Ф115

Ф85

4-Ф14

40

65x235

Ф145

Ф110

4-Ф18

50

85x230

Ф160

Ф125

4-Ф18
