DF-DB Stainless Steel High Tempture solenoid valve

Application:

It is applicable for equipment and devices with heating medias of liquefied gases or vapor e.g. heaters, radiators, driers and textile setting machines, vapor dying machines, tobacco baculum humidifiers, vegetable and fruit drying machines among other assemblies. This product can be integrated in equipment control devices for either automatic or remote control of vapor piping toggling on/off and suitable for application in various industries of petroleum, chemicals, textile, food, medical instrument, environmental protection and so on for temperature control, energy saving and automatic remote control.

Product Description



■Datasheet of DF-DB Stainless Steel Series High Temperature Solenoid Valves (DF-DB)

Diameter(mm)

DF-15DB

DF-20DB

DF-25DB

DF-32DB

DF-40DB

DF-50DB

Action Mode

Pilot - operated

Working Pressure

0.04MPa - 1.6MPa

Working Media

Liquefied Gases, Vapor, Air, Liquid, Oil

Working Temperature

≤ 200℃

Rating Voltage

AC: 380,220,110,36,24 DC:220,110,36,24,12

Insulation Grading

Grade B

L×H(mm)

70×35

74×142

92×150

110×164

122×168

160×190

Connection

G1/2"(F)

G3/4"(F)

G1"(F)

G11/4"(F)

G11/2"(F)

G2"(F)

 Note: All models number end with “F” are for flange connection e.g.DF-25DBF. Flange connection should be particular mentioned in your purchase order if these models are needed.

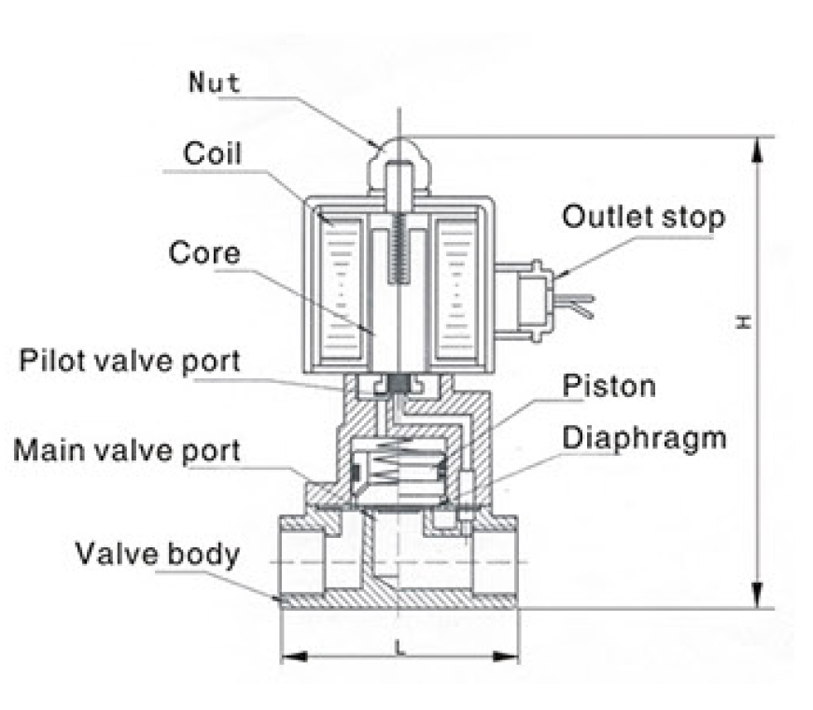

■Structure Characteristics

●Pilot- operated valves with twice operation for opening are featured in small size and low power.

●There is heat insulating and buffering components between pilot valve and main valve.

●Valves sealing of Teflon is selected heat-resistant and anti- erosive magnetic material after piston and cylinder press molding, which featured in high performance and long lite.
