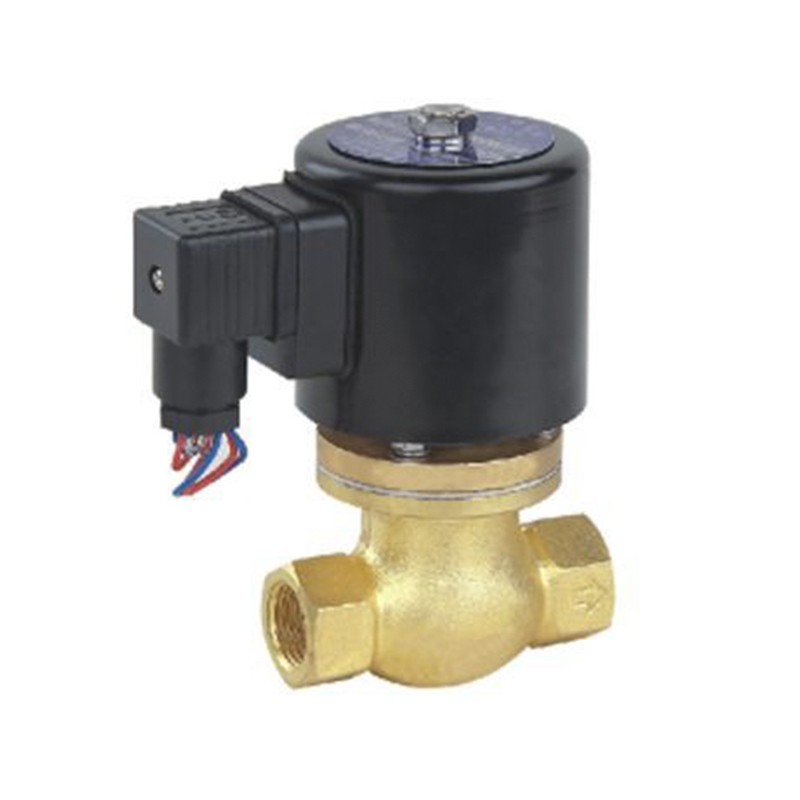

ZQDF Series Solenoid Valve for Air

Application:

Start at 0 psi, for the automatic and distance on/off control of high-temperature neutral gas and fluid.

Product Description

■Structure Characteristics

Direct acting and backup structure. PTFE as a seal material, has reliable performance and a long life span.


■Function Type

Normally Closed


■Technical Parameters

Diameter(mm)

15,20,25,32,40,50

Working Pressure

0-0.8Mpa

Medium

Steam, High temp Gas

Medium Temperature

-5℃ — -180℃

Rating Voltage

AC: 380,220,110,36 DC: 220,110,36,24

Power

≤ 50W

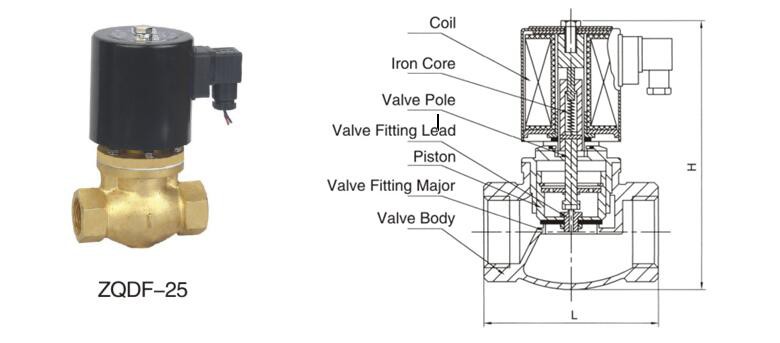

■Installation Specification

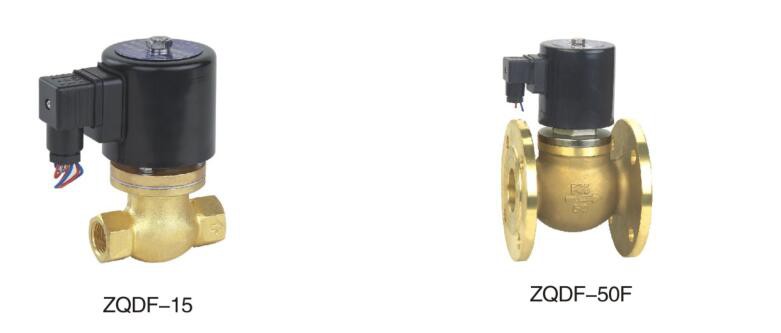

Model

Cv

L(mm)

H(mm)

Connection

Material

ZQDF-15

3.7

82

148

G1/2" Female

Body: Copper

ZQDF-20

7

100

192

G3/4" Female

ZQDF-25

11

110

195

G1" Female

ZQDF-32

14

118

206

G11/4" Female

ZQDF-40

24

125

209

G11/2" Female

ZQDF-50

35

128

225

G2" Female

ZQDF-15F

3.7

101

185

Flange 4 hole φ14 Hole Diameter φ65
Length Between Holes

ZQDF-20F

7

107

210

Flange 4 hole φ14
Hole Diameter φ75 Length Between Holes

ZQDF-25F

11

107

219

Flange 4 hole φ14
Hole Diameter φ85 Length Between Holes

ZQDF-32F

14

120

240

Flange 4 hole φ18
Hole Diameter φ100 Length Between Holes

ZQDF-40F

24

146

248

Flange 4 hole φ18
Hole Diameter φ110 Length Between Holes

ZQDF-50F

35

146

255

Flange 4 hole φ18
Hole Diameter φ125 Length Between Holes
