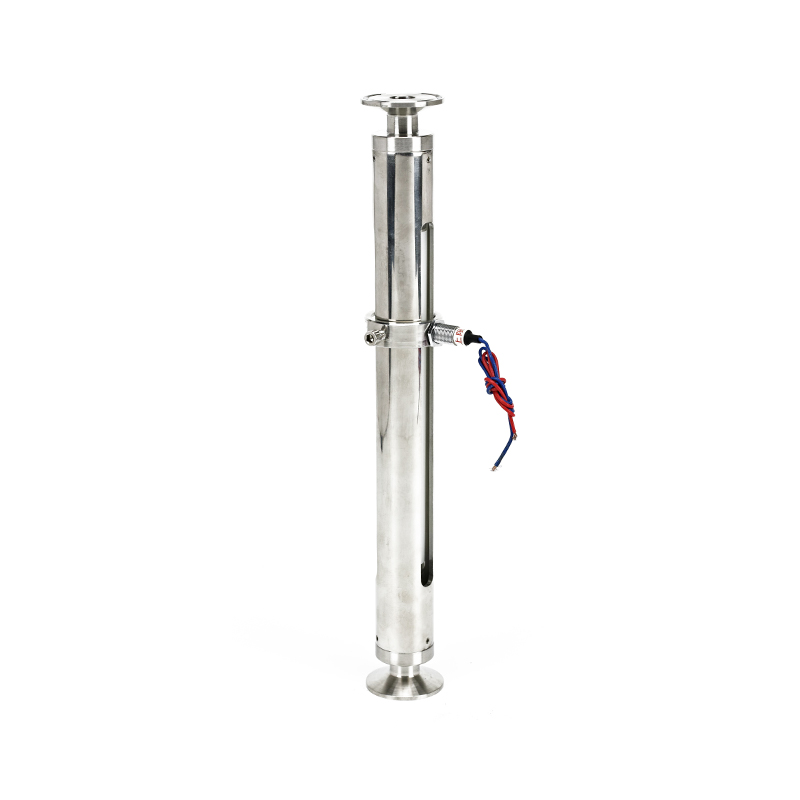

LZB Water Air Glass Flow Meter with Alarm

This Series of flowmeters is made of SS304. There are female Screw threads. Flange Connection and Tri-clamp connection for choice. It is featured in nice looking and low weight.

Switch on/ off is actually magnetic float contact open/ close after magnetron bistable exciting.Alarm sound and light are based on the switch position of on/ off linked to relays among other parts and elements.

Product Description

■Introduce

1) Philosophy
2) Switch on/ off is actually magnetic float contact open/ close after magnetron bistable exciting.Alarm sound and light are based on the switch position of on/ off linked to relays among other parts and elements.
3) Functions and Applications
4) BJ01: High Alarm Limit Switch (HA) BJ02:Low Alarm Limit Switch(LA), Both the switches of BJ02 are to send relevant signals at maximum, middle and minimum flow. The switches are mounted on certain selected position of rail and whenever magnetic float reaches or passes the switch level, signals will be sent out for internal contact actuation of either opening or closing.
5) Technical Parameter
6) Rated Voltage: max DC24/AC24 Rated Amperage: max 0.3A Steady Current at Switches Opening or Closing: max DC 0.1A Interruption Capacity: ≤10W Insulation Impedance: > 10^9 Ω Working Temperature: 0℃-+55℃ Protection Grading: IP65 Displacement(position on or off): ≤4mm
7) Precautions
8) Keep off from ambient magnetic disturbance during mounting e.g. large motors etc;
9) Flow media should be free from ferromagnetic foreign matters;
10) Ensure pipes or tubes to be mounted with the flowmeters free from any potential vibration in case switch contact actuates accidentally

■Main Technical Parameters

Model

Diameter (mm)

Range(L/h)

Accuracy (±%)

Temperature

Working Pressure

Water 20℃

Air 101325Pa20℃ (m3/h)

VA 30S-15

FA 30S-15

WA 30S-15

15

4-40    6.3-63
10-100    12-120
16-160    20-200
25-250    30-300
36-360    40-400
46-460    63-630
65-650    75-750

0.12-1.2    0.2-2
0.3-3    0.4-4
0.5-5    0.6-6
0.8-8    0.9-9
1.2-12    2-20

1.5

-20℃~+120℃

≤1.0MPa

VA 30S-25

FA 30S-25

WA 30S-25

25

40-400    50-500
63-630    80-800
100-1000    120-1200

1.6-16    2-20

2.5-25    3-30

4-40    5-50

6-60

160-1600    200-2000

250-2500    300-3000

VA 30S-40

FA 30S-40

WA 30S-40

40

160-1600    200-2000

250-2500    300-3000

400-4000    500-5000

5-50    6-60

8-80    9-90

12-120

≤0.9MPa

VA 30S-50

FA30S-50

WA 30S-50

50

250-2500    300-3000

400-4000    500-5000

630-6300    800-8000

1000-10000    1500-15000

4000-16000

10-100    12-120
16-160    20-200
30-300

≤0.7MPa

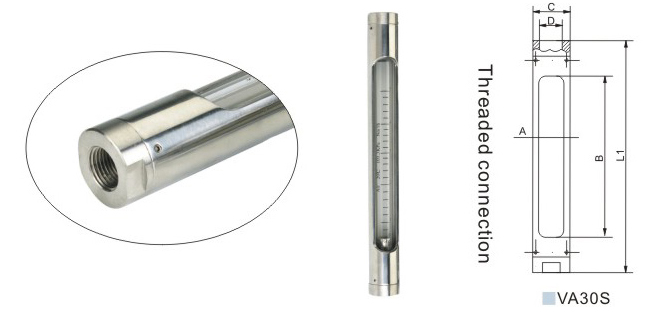

■LZB-VA 30S Glass Tube Rotameter Outline Dimensions(mm)

Diameter (mm)

Display window size a×b

VA30S Threaded Connection

L1

C

 D

15

26×236

344

φ38

1/2"BSP

25

34×226

348

φ55

1"BSP

40

44×226

370

φ70

11/2"BSF

50

60×216

380

φ90

2"BSP

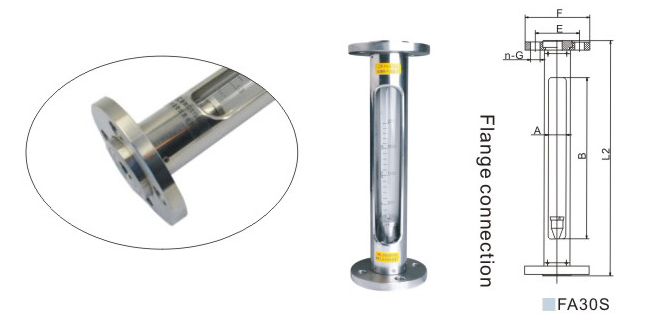

■LZB-FA 30S Glass Tube Rotameter Outline Dimensions(mm)

Diameter(mm)

Display window size a×b

FA30S Flange Connection

L2

E

F

n-G

15

26×236

348

φ65

φ95

4-φ14

25

34×226

348

φ85

φ115

4-φ14

40

44×226

370

φ110

φ145

4-φ18

50

60×216

370

φ125

φ160

4-φ18

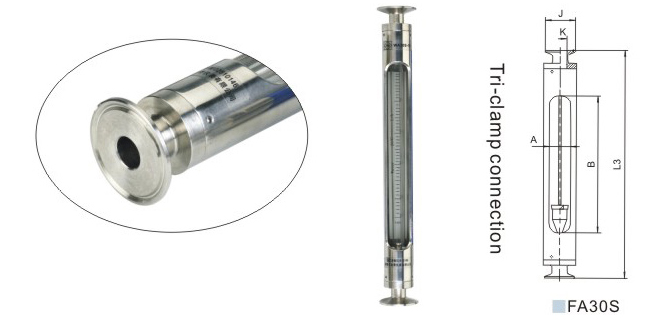

■LZB-WA30S Glass Tube Rotameter Outline Dimensions(mm)

Diameter(mm)

Display window size a×b

WA30S Tri-clamp Connection

L3

J

K

15

26×236

376

50.5

3/4"

25

34×226

376

50.5

1"

40

44×226

376

50.5

11/2"

50

60×216

376

64

2"

About
