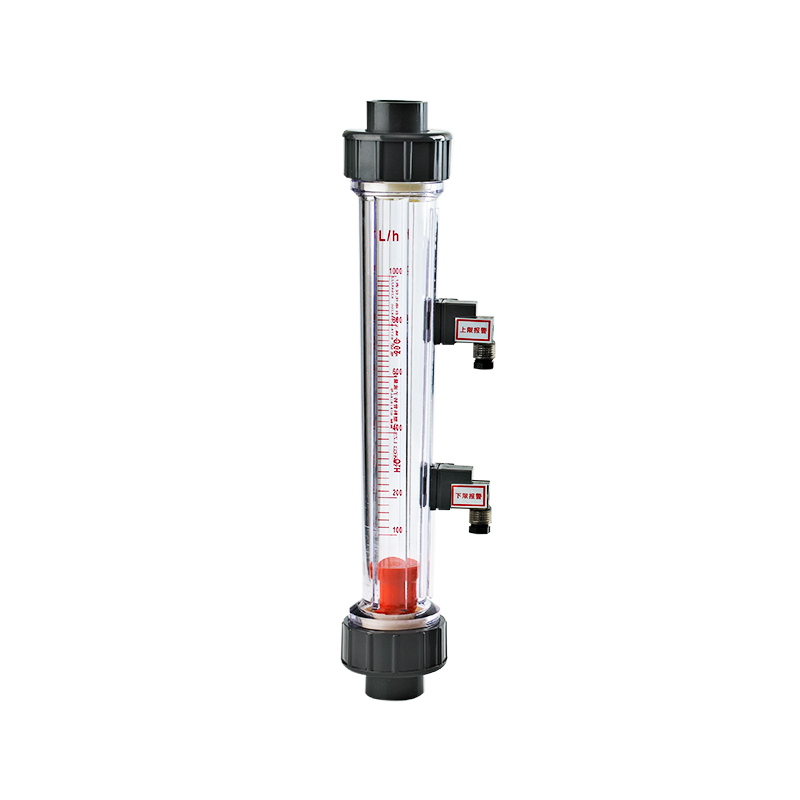

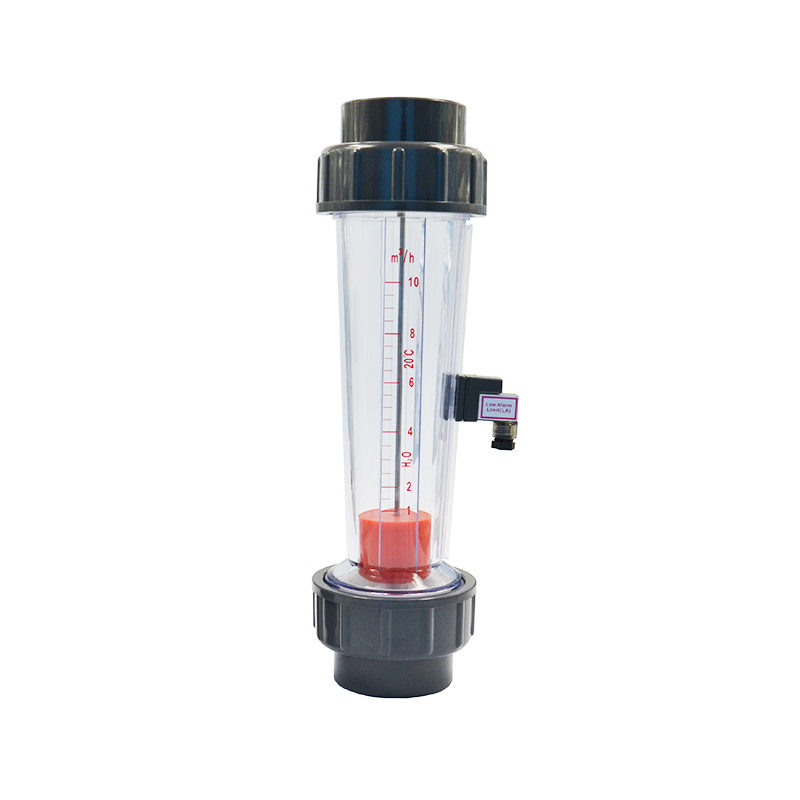

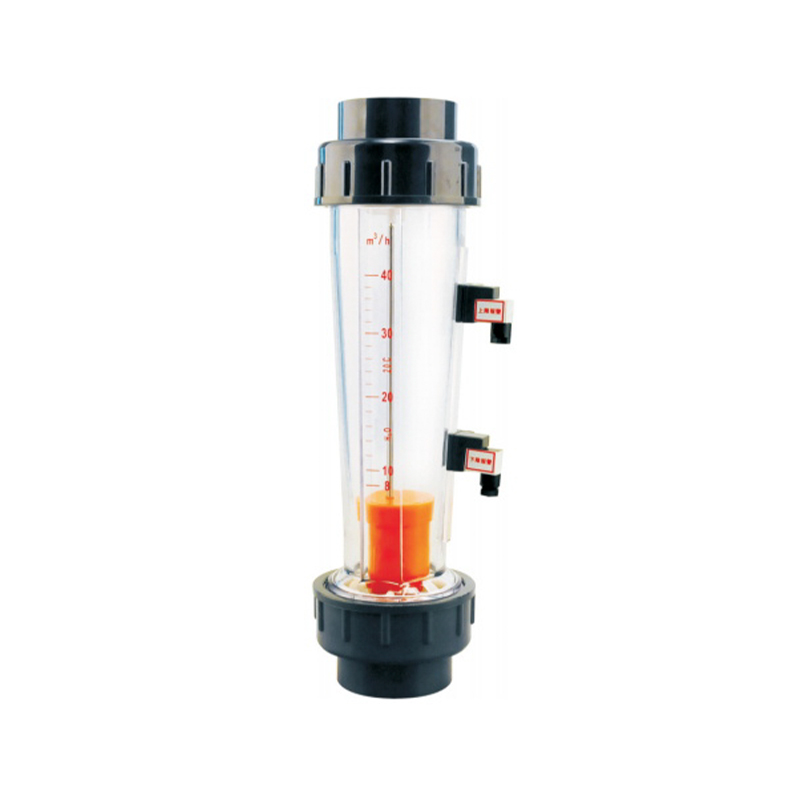

LZS Plastic Tube Flow Meter with Alarm

Philosophy:

Switch on/off is actually magnetic float contact open/close after magnetron bistable exciting. Alarm sound and light are based on the switch position of on/off linked to relays among other parts and elements.

Product Description

Functions and Applications

BJ01: High Alarm Limit Switch (HA) BJ02: Low Alarm Limit Switch (LA), Both the switches of BJ01 and BJ02 are able to send relevant signals at maximum, middle and minimum flow. The switches are mounted on certain selected position of rail and whenever magnetic float reaches or passes the switch level, signals will be sent out for internal contact actuation of either opening or closing.

Technical Parameter

Rated Voltage

Max DC24/AC24

Rated Amperage

Max 0.3A

Steady Current at Switches Opening or Closing

Max DC0.1A

Interruption Capacity

≤10W

Insulation Impedance

 >10”Ω

Working Temperature

 0℃~+55℃

Protection Grading

 IP65

Displacement (position on or off)

≤4mm

Precautions

1) Keep off from ambient magnetic disturbance during mounting e.g. Large motors etc;

2)Flow media should be free from ferromagnetic foreign matters;

3) Ensure pipes or tubes to be mounted with the flowmeters free from any potential vibration in case switch contact actuates accidentally.



■Datasheet of LZS Series Flowmeter with Alarm Limit Switches

Model

Diameter

(mm)

Range

Accuracy

Media conditions

Long Tube Style

Short Tube Style

Tempt℃

Pressure(MPa)

LZS-15

15

10-100l/h

16-160l/h

25-250l/h

40-400l/h

60-600l/h

5-50l/h

10-100l/h

16-160l/h

25-250l/h

40-400l/h

50-500l/h

60-600l/h

100-1000l/h

±4%

0-60

≤0.6

LZS-25

25

100-100l/h

160-1600l/h

250-2500l/h

100-1000l/h

160-1600l/h

4-401/min

250-25001/h

LZS-32

32



0.4.4m3/h

0.6-6m3/h

LZS-50

50

0.4-4m3/h

0.6-6m3/h

1-10m3/h

1.6-16m3/h

1-10m3/h
1.6-16m3/h

LZS-60

65



2.5-16m3/h

5-25m3/h

8-40m3/h

12-60m3/h

LZS-100

100

14-90m3/h

18-120m3/h

20-150m3/h

25-180m3/h

25-200m3/h

14-90m3/h

18-120m3/h

2S-180m3/h

25-200m3/h

LZS-125

125

LZS-150

150

Note: If the flowmeters of LZS-100. 125. 150 requires with alarm switch can be customized.
