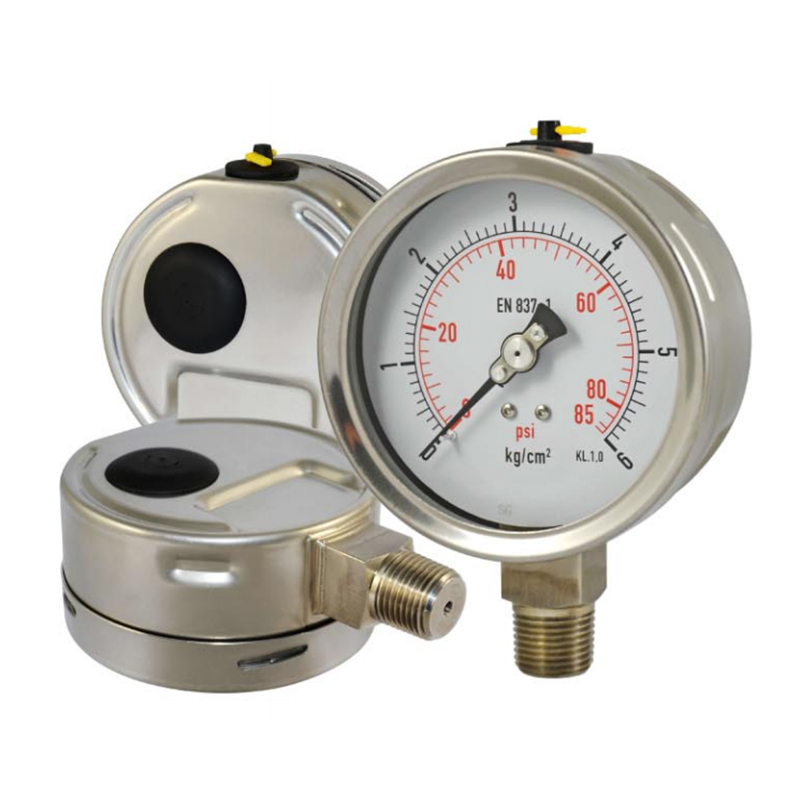

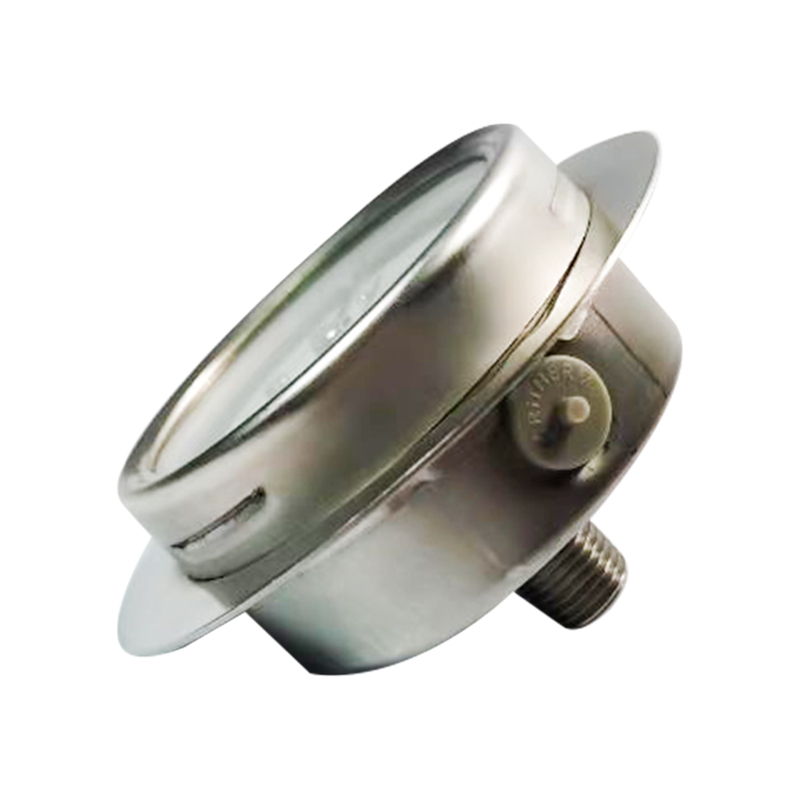

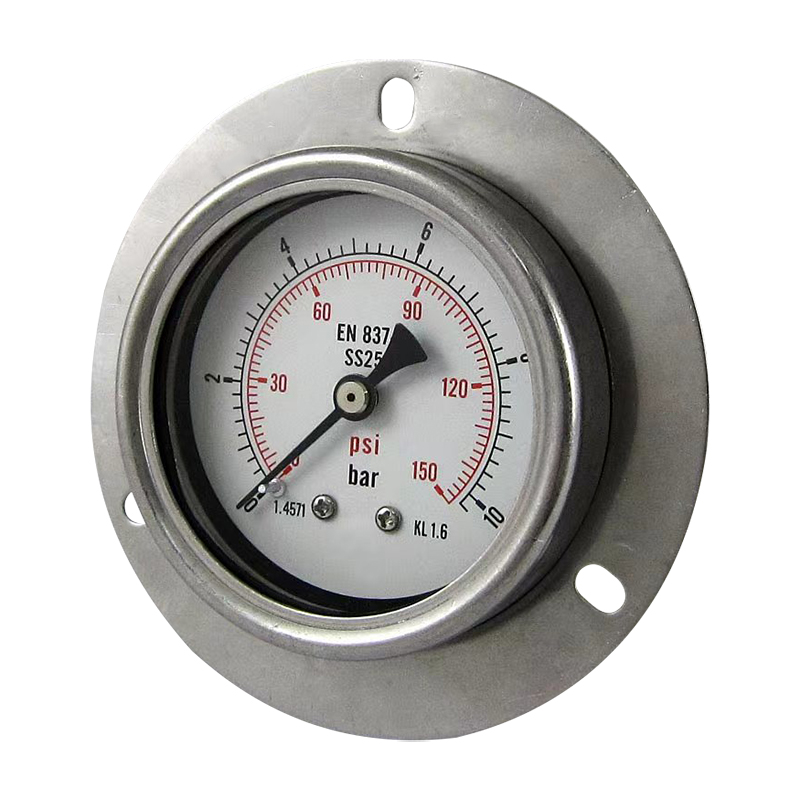

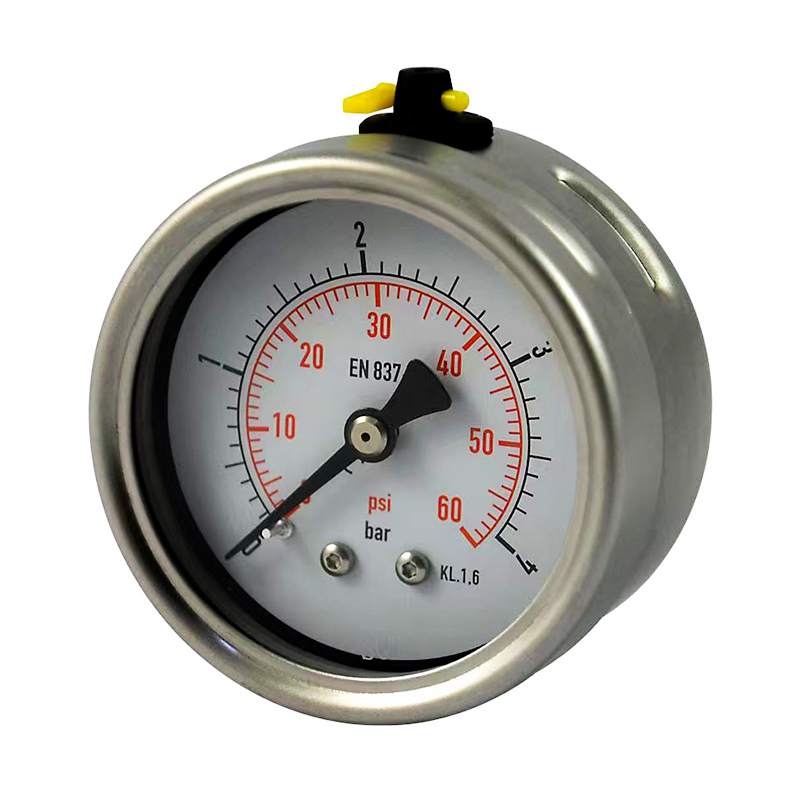

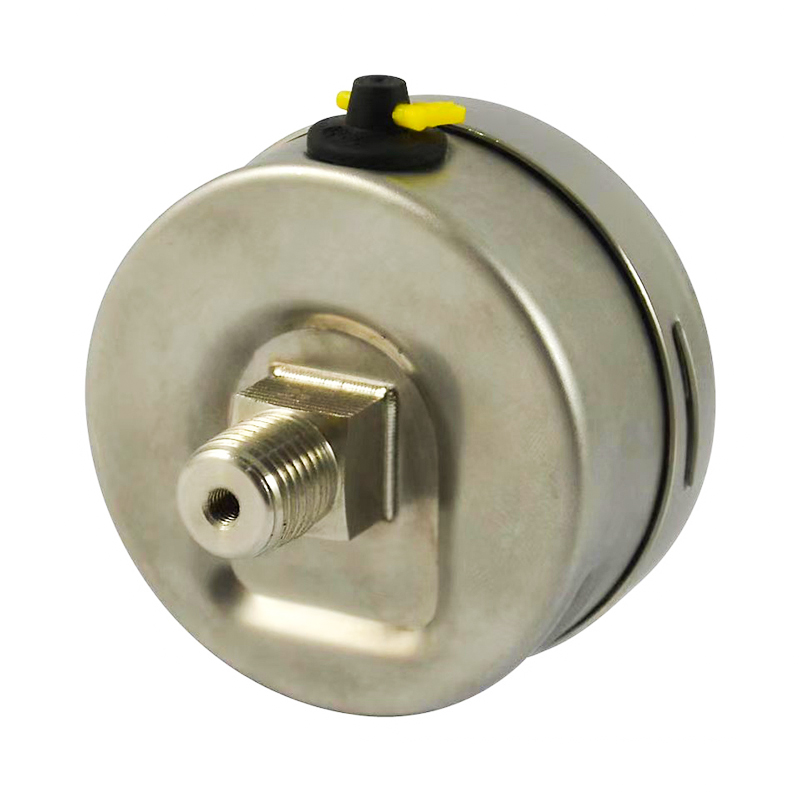

1323 Stainless Steel Series, Din Bayonet Ring, Liquid Fillable
Product Description
■Specifications
|
Nominal size |
63mm,100mm,150mm and 160mm |
|
Design |
EN 837-1 |
|
Accuracy class |
63mm:1.6 100mm,150mm and 160mm:1.0 |
|
Scale range |
|
|
Pressure |
0-0.6 to 1000bar |
|
Vacuum |
-1bar to 0 |
|
Compound |
-1 to 24bar or other equivalent units of pressure or vacuum |
|
Operating temperature |
|
|
Ambient |
-40+60 deg C without liquid filled -20+60 deg C with glycerin filled |
|
Medium |
+200 deg C maximum without liquid filled +100 deg C maximum with liquid filled |
|
Protection class |
IP 66 |
|
Material |
|
|
Case |
AISI 304 stainless steel |
|
Bezel ring |
AISI 304 DIN bayonet ring |
|
Window |
Toughened glass |
■Applications
● For gaseous and liquid aggressive media that are not highly viscous or crystallizable, also in aggressive ambiance.
● With liquid filled version for high dynamic pressure vibration.
● Process industries including chemical plants, petrochemical refineries, pharmaceuticals, food and beverage processing, offshore oil platforms, papermills, salt mines, fertilizer plants and on shipboard.
■Features
● Laser welding between case and connection
● Over range protection 1.3 times max
● Liquid filled or dry
● All stainless steel
● 0-1000ban
|
Liquid filling |
Dry but fillable as standard, glycerine or silicone oil fillable |
|
Dial plate |
Aluminum, with pointer stop, white background, black marking for single scale, black and red marking for dual scale |
|
Pointer |
Black aluminum,micro-adjustable for 4” and 6” |
|
Bourdon tube |
AISI 316L stainless steel |
|
<100bar |
C-type |
|
≥100bar |
Helical type |
|
Movement |
AISI 304 stainless steel |
|
Process connection |
AISI 316 stainless steel, laser welding with gauge case |
|
63mm with G1/4"B male |
|
|
100mm,150mm, and 60mm with G1/2"B male |
■Options
● NPT, BSPT or other process connection thread
● Restrictor (RS)
● Special face design
● Glycerin 99.5% filled (GF)
● Silicone oil filling(SF)
● Refrigeration Scale (RF)
● Ammonia NH3 scale (AM)
● Blow-out rubber at back of 100mm and 150mm case (BO)
● Compensation oil cap for Range up to 16bar(CO)
● 160mm dial size(160)
● Laminated safety glass window (SF)

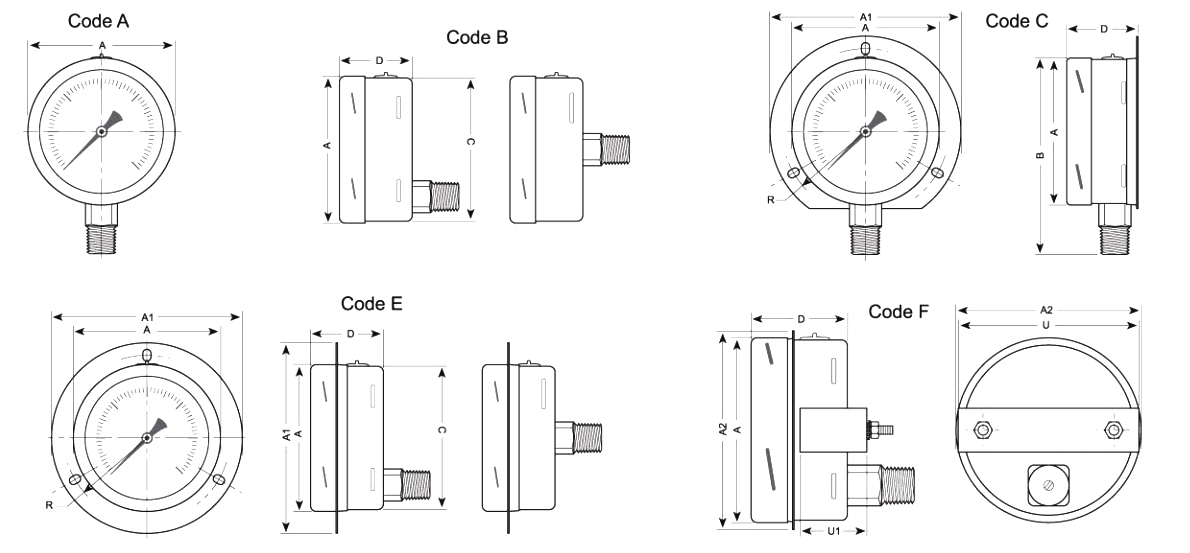

■Dimension drawing
| DIAL SIZE | A | A1 | A2 | B | C | D | R | U | U1 |
| 2.5" | ∅63.5 | ∅88 | ∅70 | 85 | ∅62 | 32 | 36.92 | 91.5 | 18 |
| 4" | ∅101 | ∅131 | ∅108 | 134 | ∅99 | 49 | 58.75 | 105 | 32 |
| 6" | ∅149 | ∅193 | ∅157 | 186 | ∅147 | 49.5 | 88.13 | 154 | 32 |
| 6" | ∅161 | / | / | 199 | ∅158 | 51 | / | / | / |
Specifications and dimensions in this catalog show the state of engineering standards during the printing period can be changed without prior notice.

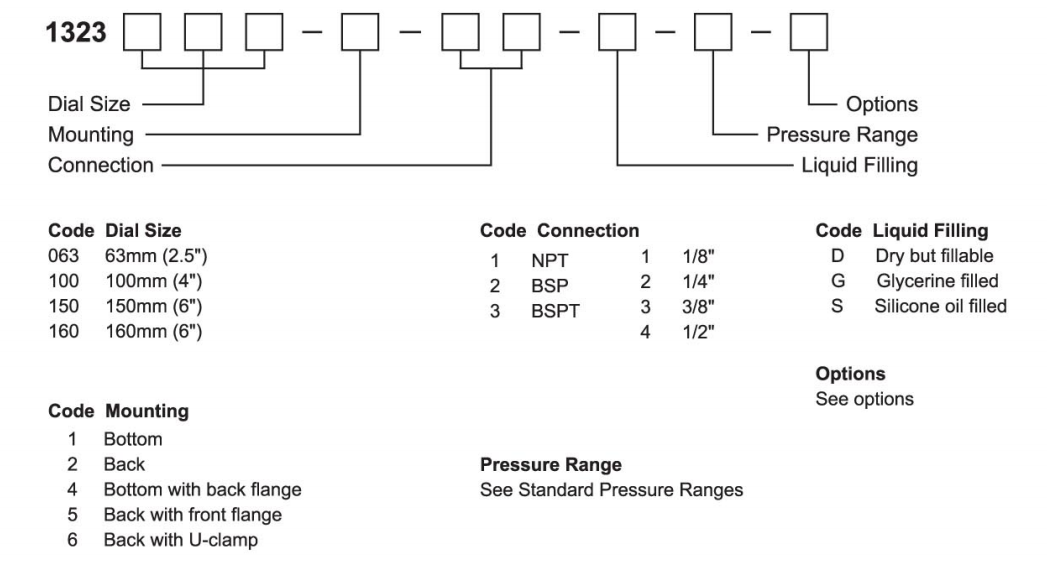

■How to Order
