Iron Steel Case Prseeure Gauge

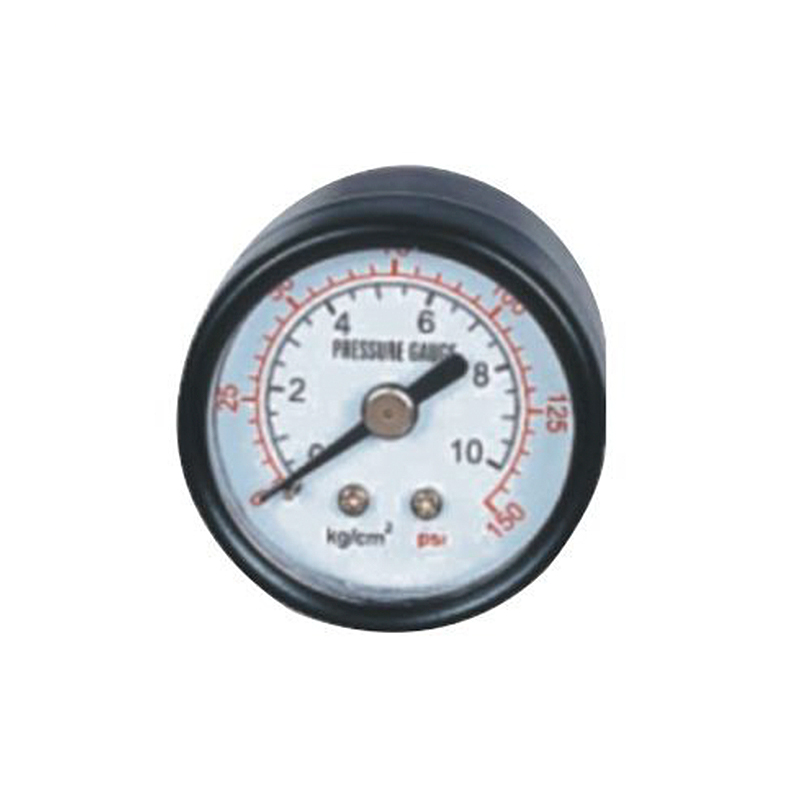

Y-General pressure gauge is well applicable for measuring the negative or positive pressure of the non-crystal or non solid gases and liquids which don' t corrode or explode the copper alloyor lead and tin solder.

Product Description

Diameter

Model

Installation

Range(Mpa)

Thread

Casing

Material

Accuracy

11/2"

Y-40

Bottom connection

0.1、

0.16、

0.25、

4、

0.6、

1、

1.6、

2.5、

4、6

G1/8"

ZG1/8"

Z1/8"

M10X1

Steel

SS304

Plastic

±2. 5

Y-40Z

Back connection

Y-402T

Back connection with border

Steel

SS304



Diameter

Model

Installation

Range (Mpa)

Thread

Casing

Material

Accuracy

2"

Y-50

Bottom connection

0.1、

0.16、

0.25、

0.4、

0.6、 1、

1.6、

2.5、4、

6、10、

16、25、

40

G1/8"

G1/4"

ZG1/8"

ZG1/4"

Z1/8"

Z1/4"

M14X1.5

Steel

SS304

Plastic

±2. 5

Y-50Z

Back connection

Y-50ZT

Back connection with border

Steel

SS304



Diameter

Model

Installation

Range (Mpa)

Thread

Casing

Material

Accuracy

21/2"

Y-60

Bottom connection

0.1、

0.16、

0.25、

0.4、

0.6、 1、

1.6、

2.5、4、

6、10、

16、25、

40、60

G1/8"

G1/4"

ZG1/8"

ZG1/4"

Z1/8"

Z1/4"

M14X1.5

Steel

SS304

Plastic

±2. 5

Y-60Z

Back connection

Y-60ZT

Back connection with border

Steel

SS304



Diameter

Model

Installation

Range (Mpa)

Thread

Casing

Material

Accuracy

3"

Y-75

Bottom connection

0.1、

0.16、

0.25、

0.4、 0.6、

1、 1.6、

2.5、4、

6、10、

16、25、

40、60

G1/4"

ZG1/4"

Z1/4"

G3/8"

ZG3/8"

Z3/8"

M14X1.5

Steel

SS304

Plastic

±2. 5

Y-75Z

Back connection

Y-75ZT

Back connection with border

Steel

SS304



■For Order

Please specify the model, specification and code

Diameter

Installation

Measure range

Case material

Fitting matenal

Thread

Module

Spring pipe

Transparent surface

1-11/2"

2-2"

3-21/2"

4-3"

5-4"

6-6"

1-Bottom connection

2-Back connection

3-Back connection withe border



√1-Steel

   2-Plastic

   3-SS304

√1-Brass

   2-SS

NPT

BSPT

BSP

√1-Brass

   2-SS

√1-phosphor copper

   2-SS

√1-Glass

   2-Plastic



Diameter

Model

Installation

Range (Mpa)

Thread

Casing Material

Accuracy

4"

6"

Y-100
Y-150

Bottom connection

0.1、
0.16、
0.25、
0.4、0.6、
1、1.6、
2.5、4、
6、10、
16、25、
40、60

G1/2"
ZG1/2"
Z1/2"
G3/8"
ZG3/8"
Z3/8"
M20-1.5
Z1/4"

Steel
SS304
Plastic

±1.6

Y-100Z
Y-150Z

Back connection

Y-100ZT
Y-150ZT

Back Connection
with border

Steel

SS304

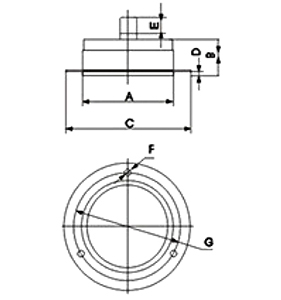

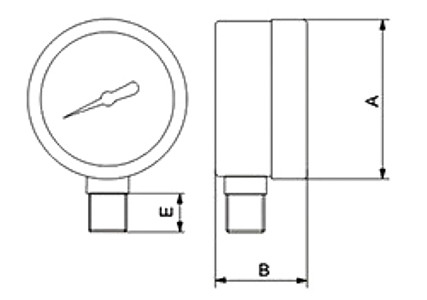

■Installation Specification(mm)

Model

40

50

63

75

100

150

A

Φ42

Φ52

Φ63

Φ77

Φ100

Φ150

B

23

29

30

32

43

42

C



Φ74

Φ88

Φ105

Φ132



D

3

3

3

3

3



E

10

14

14

14

17



F



3-Φ4

3-Φ5

3-Φ5

3-Φ6

3

G



Φ64

Φ72

Φ90

Φ118

20

For Order: Please specify the model NO. And specifications.

Measurement Conversion: 1Mpa=10bar=10.2kg/cm3=145psi Note: G=BSP ZG=BSPT Z=NPT

Bottom connection

Back connection

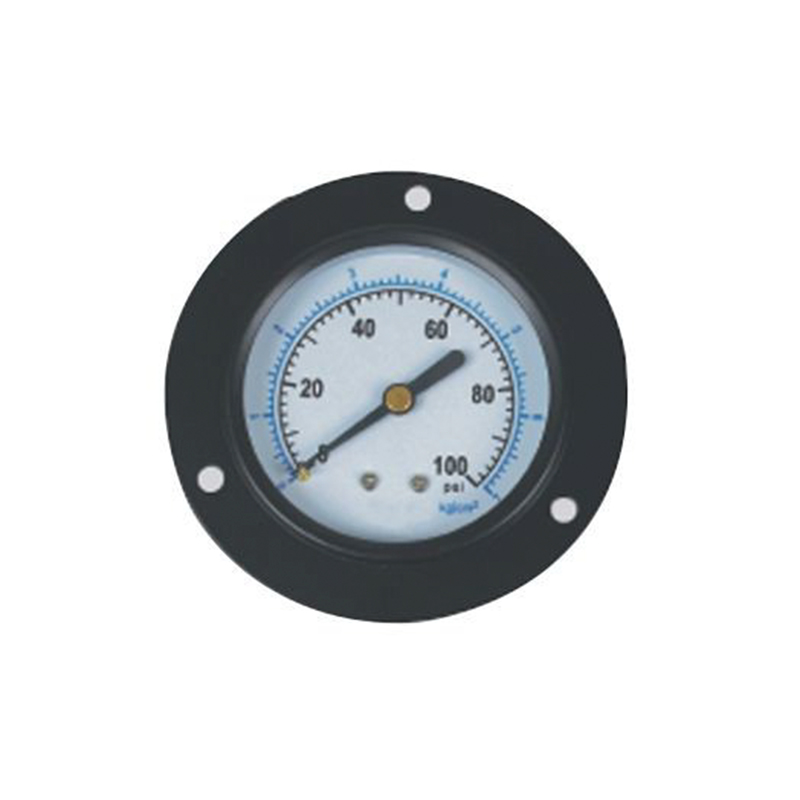

Back connection withe border

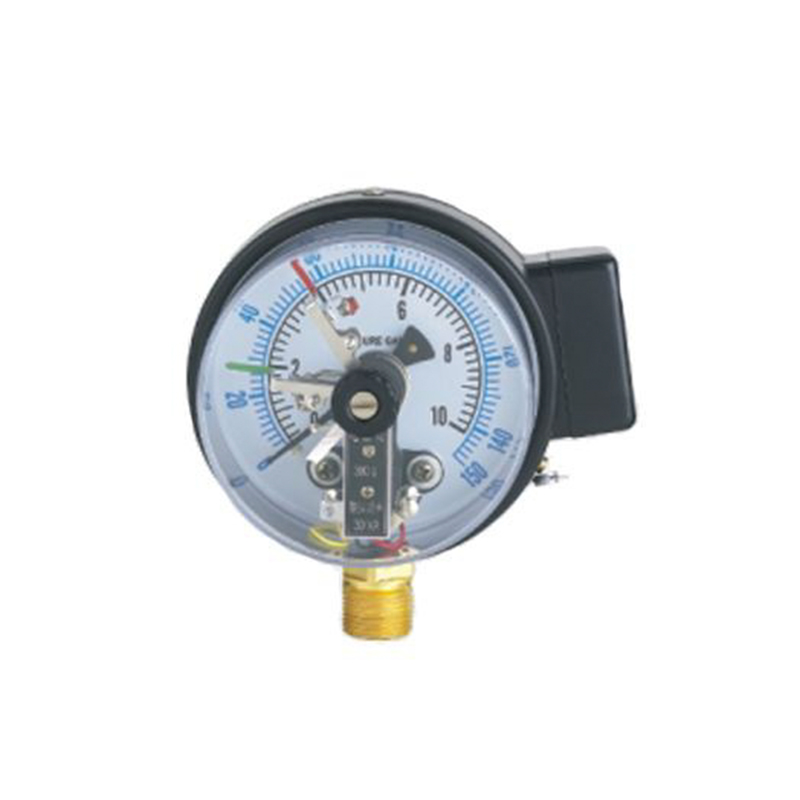

■Electric-Contact Pressure Gauge

Diameter

Model

Installation

Range(Mpa)

Thread

Casing Material

Accuracy

21/2"

YXC-60
YX-60

Bottom connection

0.1
0.16
0.25
0.4
0.6
1
1.6
2.5
4、6
10
16
25
40、60

G1/4"
Z1/4"
ZG1/4"
M14-1.5

Steel

±2.5

4"

YXC-100
YX-100

Back connection

M20-1.5

Steel

±1.6

6"

YXC-150
YX-150

Back Connection
with border

Steel
