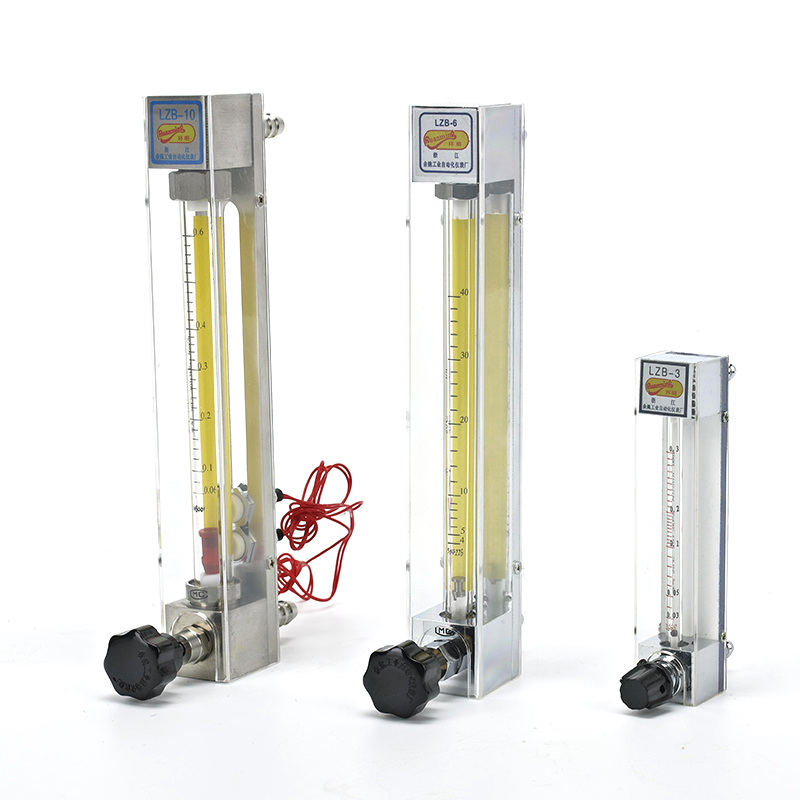

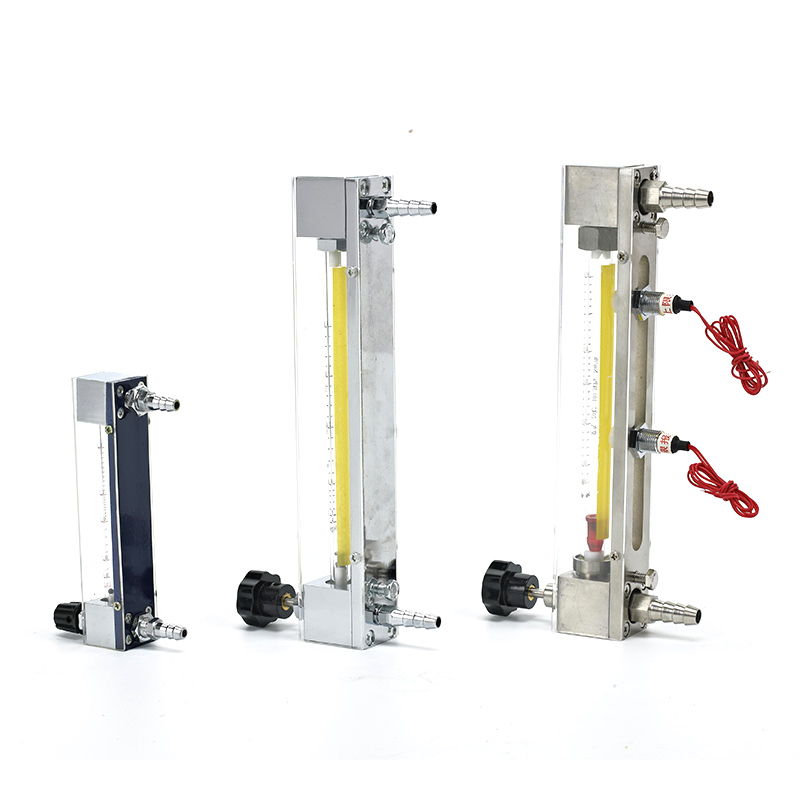

LZB-3/4/6/10 Series Small Flow Flow Meter

Glass rotameter is used to measure the instantaneous one-way nonpulsating Fluxof liquid or gases in plpes Fields such as chemical, petroleum, medicine, fertilizer, food, sugar refinery, paper marking, light industry, textile, printing and dyeing, environmental pretection etc. PTFE, the high quality corrosion resistant material isused at the main contact parts of the corrosion resistant glass rotameter to contactthe medium. lt has a very good performance of corrosion resistance in measuring various kinds of acis flow (except for hydrofluoric acid), alkali, oxidant, strong oxidation acid, organic solvent and other erosive gases and liquids.

Product Description

■Quick Details

Place of Origin

Zhejiang China

Working Pressure

≤1 Mpa

Connection

Threaded

Hose

Model NO.

LZB - Series

Max Temp.

60℃

Tube material

Glass

Medium

Water, Liquid, Air, Gas

Customized Support

OEM, ODM, OBM

Size

3mm to 10mm

Accuracy

±4%

Brand Name

ZYIA

Sample

Available



Introduce

LZB - 3/4/6/10 Series Glass rotameter is used to measure the instantaneous one-way non-pulsating Fluxof liquid or gases in pipes Fields such as chemical, petroleum, medicine, fertilizer, food, sugar refinery, paper marking, light industry, textile, printing and dyeing, environmental protection, etc.PTFE, a high-quality corrosion resistant material is used at the main contact parts of the corrosion-resistant glass rotameter to contact the medium.

It has a very good performance of corrosion resistance in measuring various kinds of acid flow (except for hydrofluoric acid), alkali, oxidant, strong oxidation acid, organic solvents and other erosive gases and liquids.


■Technical Parameters of LZB-Series Glass Rotameter

Model

LZB-3

LZB-4

LZB-6

LZB-10

Diameter(mm)

Ф3

Ф4

Ф6

Ф10

Range

Liquid

l/h

2.5-25ml/min

1-10

★ 1-10

6-60

4-40ml/min

1.6-16

★ 100-800ml/min

10-100

6-60ml/min

2.5-25

★ 10-80ml/min

2.5-25

4-40

16-160

10-100ml/min

★ 3.6-36

6-60

★ 25-250

★ 0.3-3l/h







Gas

Nm3/h

0.03-0.3l/min

★ 0.2-2.5l/min

0.04-0.4

0.1-1

0.06-0.6l/min

0.16-1.6

0.1-1l/min

0.016-0.16

0.06-0.6

0.25-2.5

0.15-1.5l/min

0.025-0.25

★ 1-10l/min

★ 5-50l/min

★ 0-100l/h

0.04-0.4

0.1-1

★ 0.5-5







★ 0.6-6







★ 0.6-7

Accuracy (±%)

4、6

2.5、4

2.5

2.5

Pressure (MPa)

≤0.6

≤1

≤1

≤1

Range with ★ represents customer tailored special range.

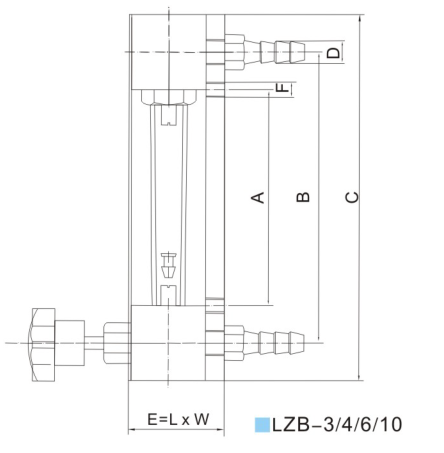

■Dimensions of LZB-3/4/6/10(include Model F, S, B) Flow Meter

Model

Dimensions ( mm )

A

B

C

D

E

F

LZB-3



116

136

Ф8

26X25



LZB-4

178

204

234

Ф9

39.5X34

2-M6

LZB-6

178

204

234

Ф9

39.5X34

2-M6

LZB-10

178

208

238

Ф12

39.5X34

2-M6
