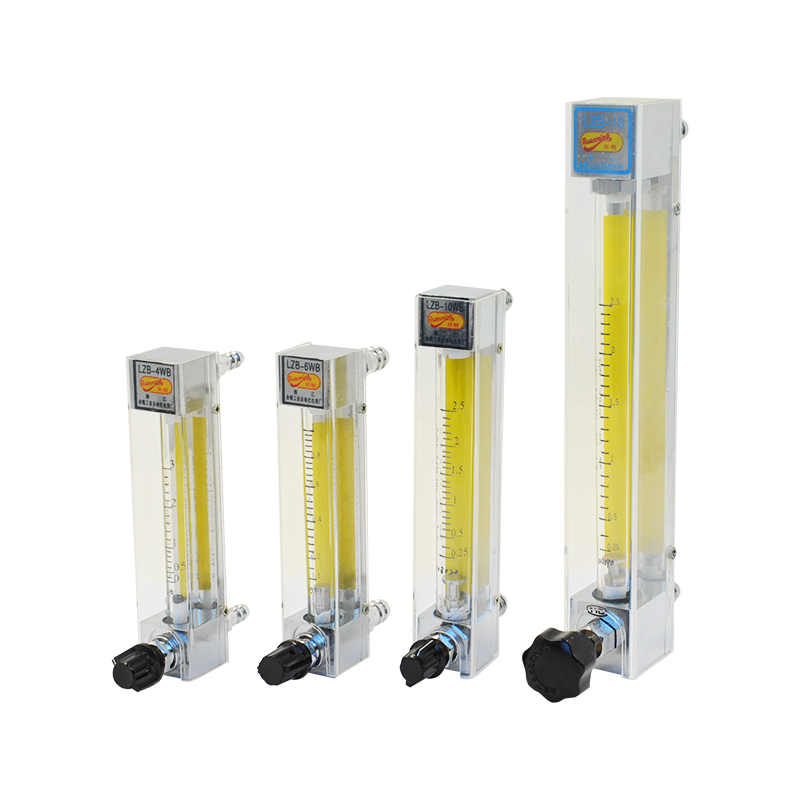

LZB-4WB/6WB/10WB Seriers Small Flow Micro Panel Type Flow Meter

LZB-WB consists of three(3) specifications including Ф6 and Ф10.Being small and cute, this flowmeter is suitable for application in limited space e.g. analysis instruments, environmental protection equipment, medical apparatuses among other testing devices.

Product Description

Quick Details

Place of Origin

ZhejiangChina

Working Pressure

≤1 Mpa

Connection

Threaded Hose

Model NO.

LZB - Series

Max Temp.

60℃

Tube material

Glass

Medium

Water, LiquidAir, Gas

Customized Support

OEM, ODM, OBM

Size

3mm to 10mm

Accuracy

±4%

Brand Name

ZYIA

Sample

Available



Introduce

LZB - WB consists of three (3) specifications including φ6 and φ41. Being small and cute, this flowmeter is suitable for application in limited space e.g. analysis instruments, environmental protection equipment, medical apparauses among other testing devices.



■ Product Features

1) Simple structure in inline type, easy in installation and maintain.

2) Chemically resistant molded polycarbonate.

3) Capable of withstanding weak chemicals.

4) Inline type, bottom in, top out, direct reading scale.


■ Technical Parameters of LZB-4WB/6WB/10WB

Model

Range

Accuracy

Working

Pressure

Working

Temperature

Water l/min

Air l/min

LZB-4WB

16-160ml/min

0.3-3

±4%

≤1MPa

0-60℃

25-250ml/min

0.6-6

LZB-6WB

0.04-0.4

0.7-7

± 2.5%

0.06-0.6

1-10

0.1-1

1.5-15

LZB-10WB

0.1-1

3-30

0.16-1.6

5.45

WB: With regulator W: Without regulator

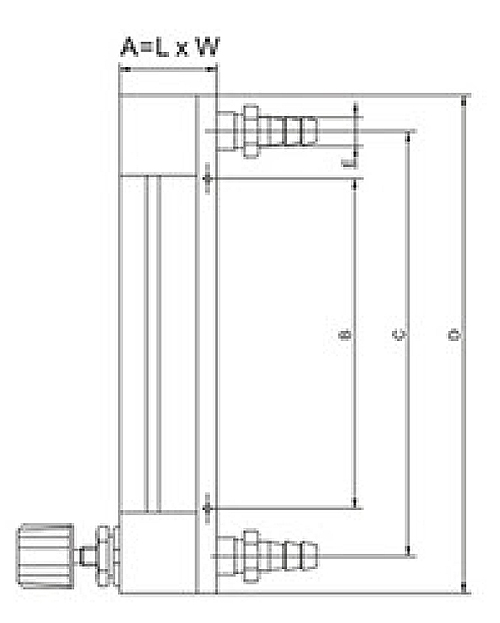

■ Dimension of LZB -4WB /6WB/10WB

Model

Dimensions (mm)

A

B

C

D

E

LZB-4WB

26X25

90

116

136

Ф8

LZB-6WB

28X25

90

116

136

Ф11

LZB-10WB

28X25

90

140

160

Ф11
