Home / Product / Flow Meter / LZB Glass Tube Rotameter / LZB-4/6/10 F4 Series PTFE Anti-Corrosion Flowmeter

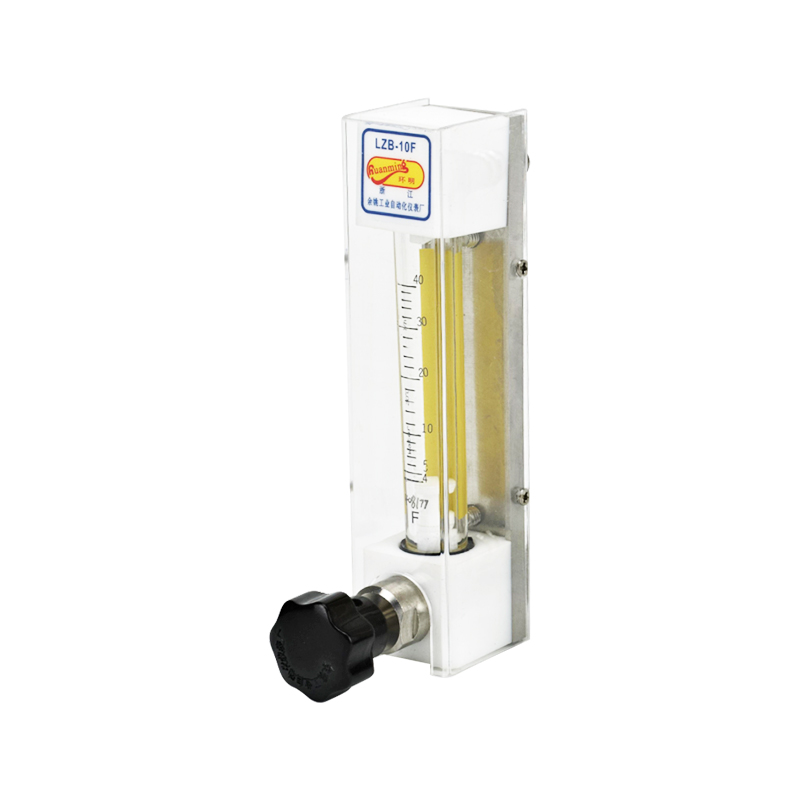

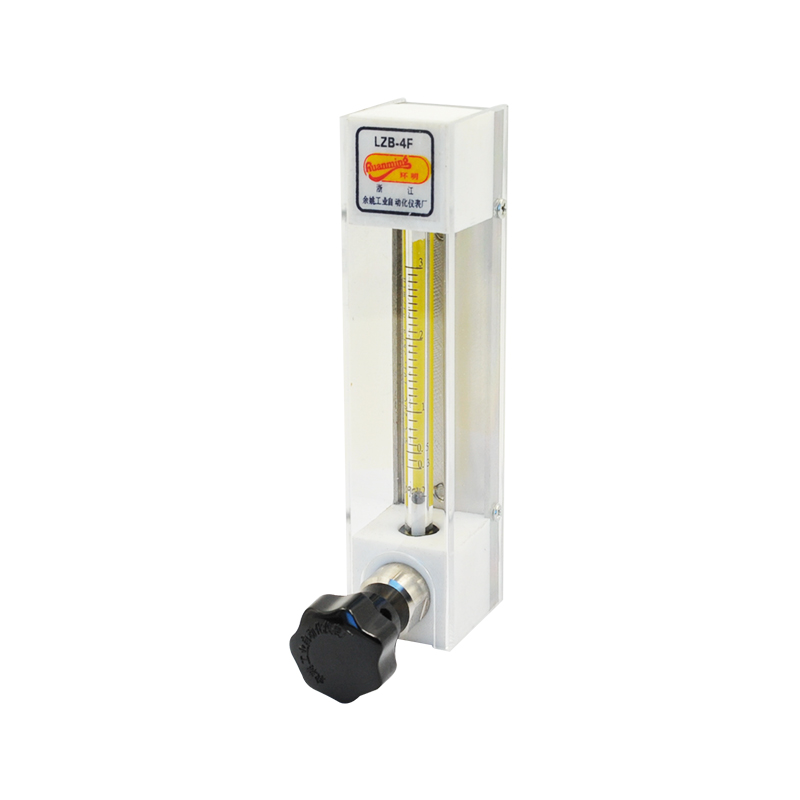

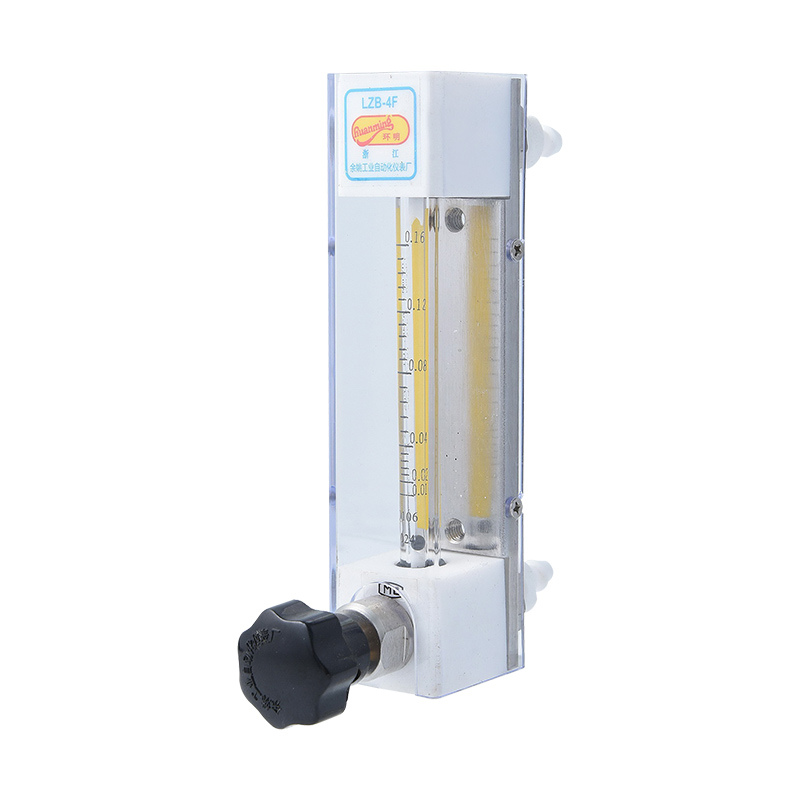

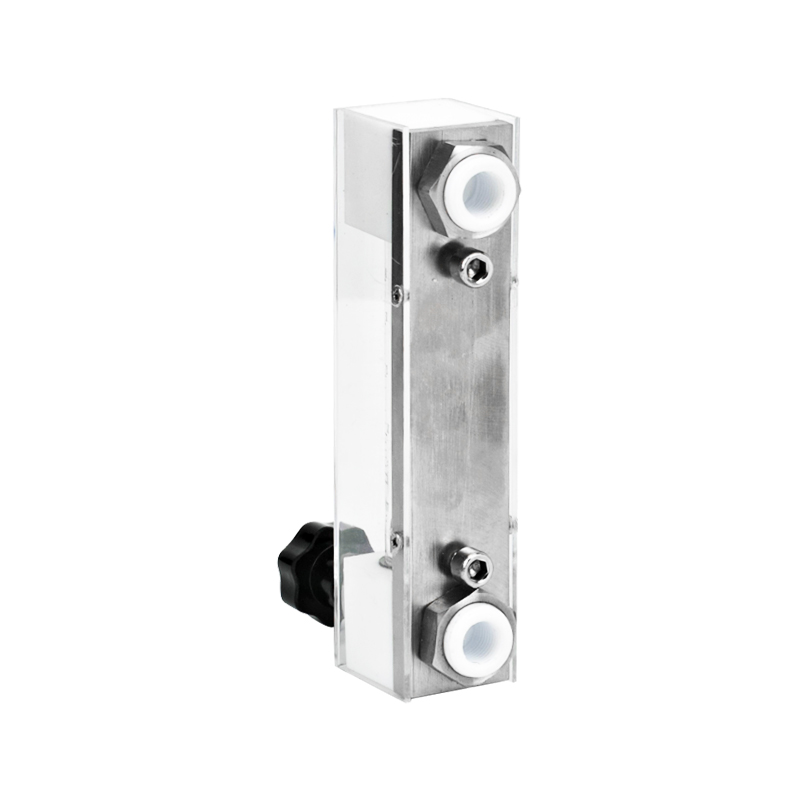

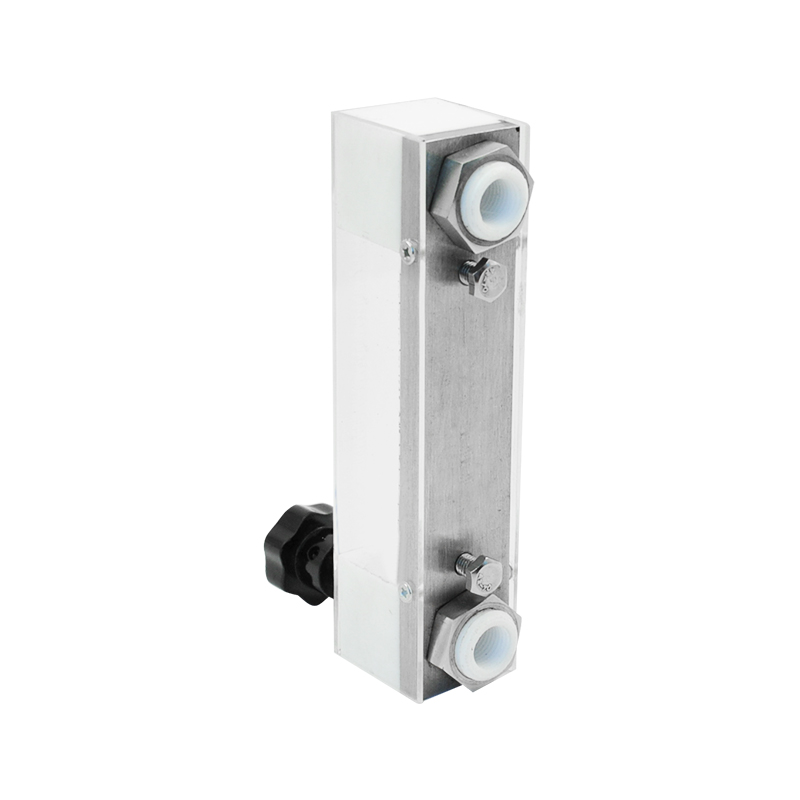

LZB-4/6/10 F4 Series PTFE Anti-Corrosion Flowmeter

LZB- 4/6/10F4 ALL the anticorrosive glass rotameter flowmeters existed in the former market were some kinds of replacer, which were made of stainless steel, and these flowmeters couldn't perform the function of anticorrosive indead. In order to flowmeter recently, whose main material is PTFE. At the same time, we succeeded in making the flow regulating valbe by PTFE, which makesthe glass rotameter with small diamerter and also has the function of antisepsis. Regarding this product' s design and manuf-acture, we have obtained The patant from issued by the State Intellectual Property Property Office of P.R.China, and the patent. NO: 200620122839.3

Product Description

Quick Details

Place of Origin

Zhejiang China

Working Pressure

≤ 0.6 Mpa

Connection

Threaded Hose

Model NO.

LZB - Series

Max Temp.

60℃

Tube Material

Glass

Medium

Water, Liquid, Air, Gas

Customized Support

OEM, ODM, OBM

Size

3mm to 10mm

Accuracy

±4%

Brand Name

ZYIA

Sample

Available



Introduce

LZB-4*6/10F4 ALL the anti-corrosive glass rotameter flowmeters that existed in the former market were some kinds of replacer, which were made of stainless steel, and these flowmeters couldn’t perform the function of anti-corrosive indeed. In order to flowmeter recently, whose main material is PTFE. At the same time, we succeeded in making the flow regulating valve by PTFE, which makes the glass rotameter with a small diameter and also has the function of antisepsis. Regarding the product’s design and manufacture, we have obtained The patent issued by the State Intellectual Property Office of China, and the patent.NO:200620122839.3.



■Product Features

1) Simple structure in inline type, easy to installation and maintain.

2) Chemically resistant molded polycarbonate.

3) Capable of withstanding weak chemicals.

4) Inline type, bottom in, top out, direct reading scale.


■Technical Parameters of LZB-4/6/10F4 Series Flow Meter

Model

LZB-4 F4

LZB-6 F4

LZB-10 F4

Diameter(mm)

Ф4

Ф6

Ф10

Range

Liquid

l/h

1-10

1.6-16

2.5-25

2.5-25

4-40

6*60

6-60

10-100

16-160

Gas

M3/h

0.016-0.16

0.025-0.25

0.04-0.4

0.04-0.4

0.06-0.6

0.1-1

0.1-1

0.16-1.6

0.25-2.5

Accuracy (± %)

4

4

4

Pressure (MPa)

≤0.6

≤0.6

≤0.6

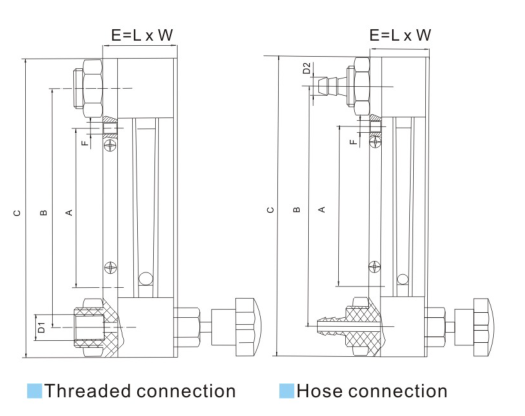

■Dimensions of LZB-4F4/6F4/10F4

Model

Dimensions (mm)

A

B

C

D1

D2

E

F

L2B-4F4

80

120

150

(F)1/4"BSP

Ф9

37.5X34

2-M6

LZB-6F4

80

120

150

(F)1/4"BSP

Ф9

37.5X34

2-M6

LZB-10F4

80

120

150

(F)1/4"BSP

Ф9

37.5X34

2-M6
