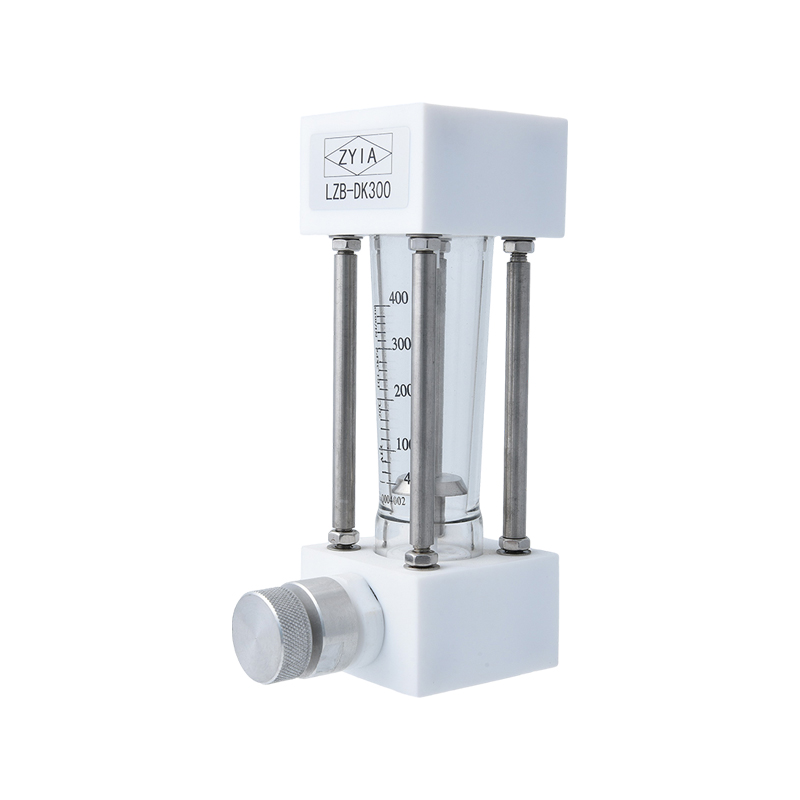

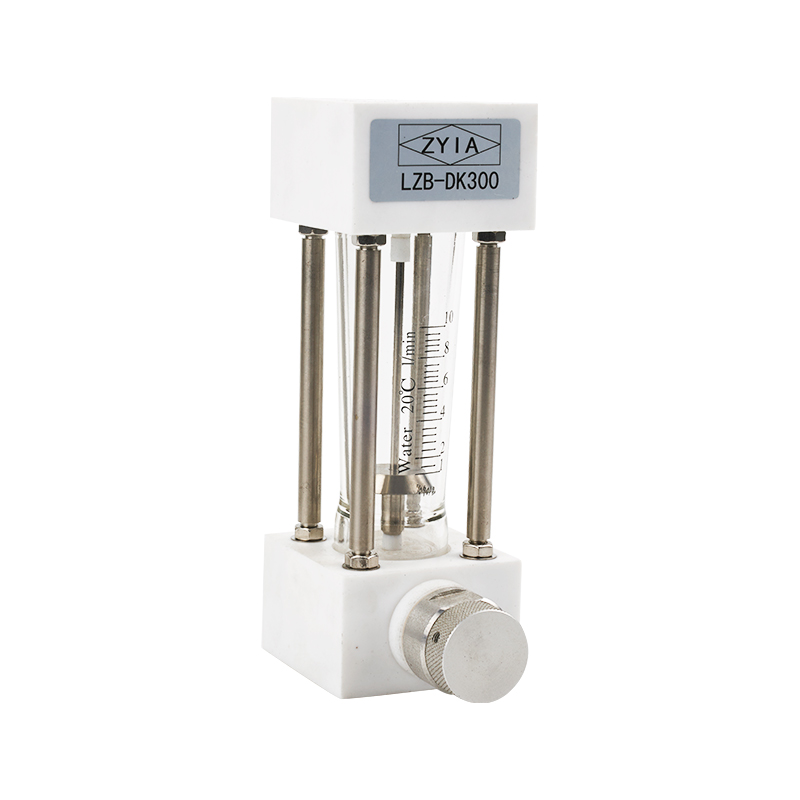

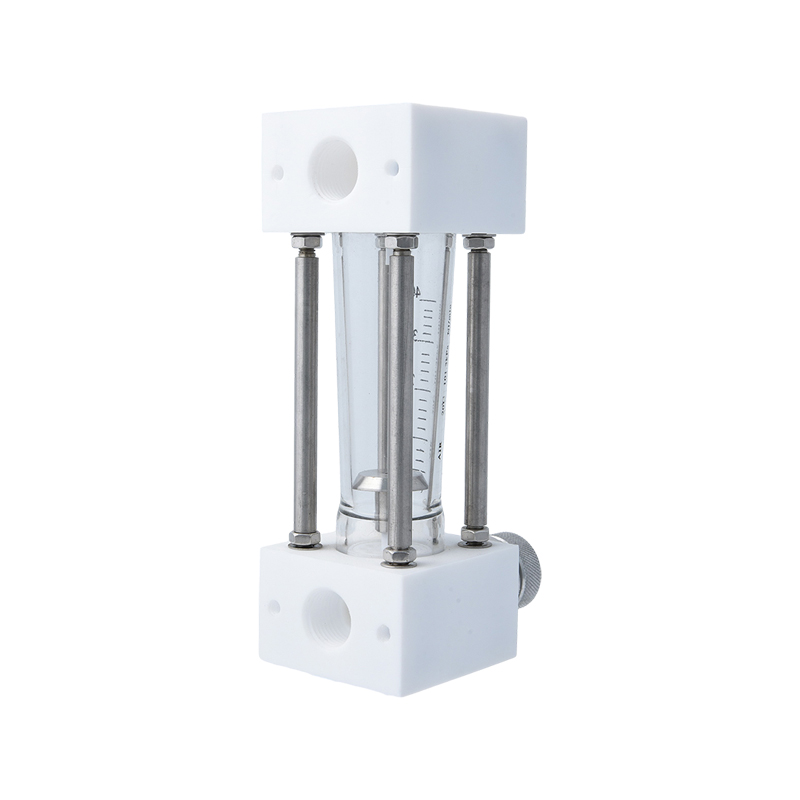

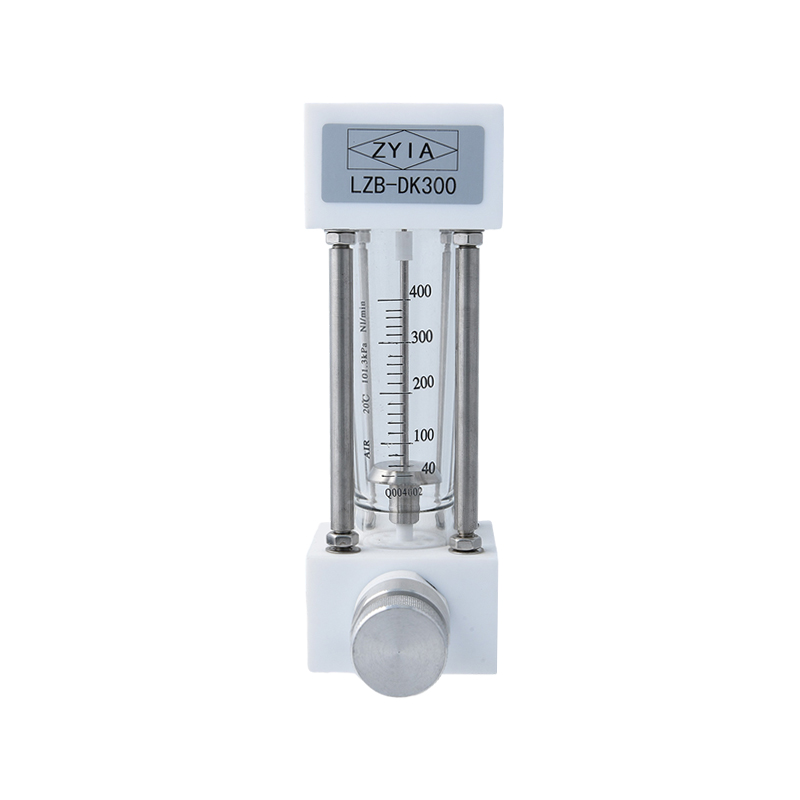

LZB-DK 300 Series Panel Glass Rotameter

DK- 300 Series glass rotameter consists of a tapered glass tube, base plates on both ends and four holding studs. Easy installation, thread assembled, and equipped with flow control valves.

It is suitable for small or large capacity flow measuring. Especially in semi-conductor chemical fluid etc.

Working Pressure: ≤0.6Mpa

Working Temperature: PVC (max60℃) PTFE (max80℃) SS304 (MAX120℃)

Product Description

■Quick Details

Place of Origin

Zhejiang China

Working Pressure

≤0.6 Mpa

Connection

NPT or BSP

Model NO.

LZB - DK300

Max Temp.

80℃

Base

PTFE

Medium

Water, Liquid, Air, Gas

Customized Support

OEM, ODM, OBM

Installation

Panel mounted

Accuracy

±5%

Brand Name

ZYIA

Sample

Available



■Introduce

DK - 300 Series glass rotameter consists of a tapered glass tube, base plates on both ends, and four holding studs. Easy installation, thread assembled, and equipped with flow control valves.

It is suitable for small or large capacity flow measuring. Especially in semi-conductor chemical fluid etc.

Working Pressure: 0.6Mpa

Working Temperature:PVC(max 60℃) PTFE(max 80℃) SS304(max 120℃)



■Product Features

1) Used for industrial furnaces and heat treatment.

2) Light and handy structure, good looks, easy installation and maintenance.

3) All flow meters can be equipped with limit switches.


■Technical Parameters of LZB-DK300 Series

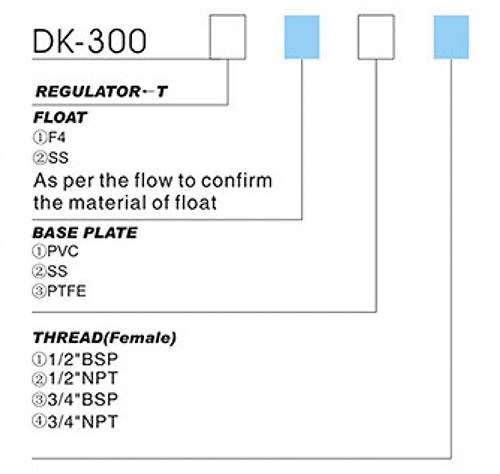

Model

Range (L/min)

Thread

Accuracy

Water 20℃

Air101KPa 20℃

DK-300 Or DK-300T

1-10

40-400

1/2"BSP

1/2"NPT

3/4"BSP

3/4"NPT

±5%

2-20

60-600

3-30

90-900

4-40

120-1200

5-50

150-1500

3/4"BSP

3/4"NPT

12-60

400-1800
