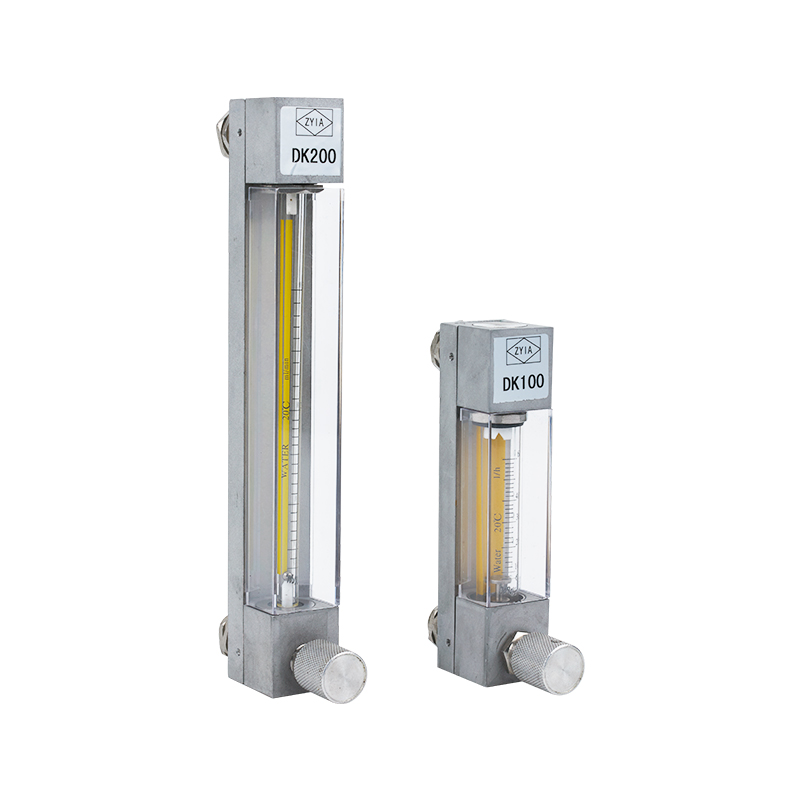

LZB-DK100/DK 200 Series Flow Meter with Panel Permits Easy Installatcion

Fitting of this series is high precision flowmeteris made of SS304 or aluminium, It is applicable to integration o measuring equipment, and service of research department

etc. The design with panel permits easy installatcion.

Working Pressure: ≤0.8Map

Working Temperature: ≤120℃

Product Description

■Quick Details

Place of Origin

Zhejiang China

Working Pressure

≤0.8 Mpa

Connection

NPT or BSP

Model NO.

LZB-DK100/DK200

Max Temp.

120℃

Fitting

SS

Medium

Water, Liquid, Air, Gas

Customized Support

OEM, ODM, OBM

Float

Agate ball

Accuracy

±2.5%

Brand Name

ZYIA

Sample

Available



■Introduce

The fitting of the series is a high-precision flow meter is made of SS304 or AL, it is applicable to the integration of measuring equipment, and service of the research department etc. The design with the panel permits easy installation.  working pressure≤0.8Mpa ,working temp.≤120ºC



■Product Features

1) Used for industrial furnaces and heat treatment.

2) Light and handy structure, good looks, easy installation and maintenance.

3) All flow meters can be equipped with limit switches.


■Technical Parameters of LZB-DK100/DK200 Series

Water(L/min)

Air(NL/min)

Thread

Accuracy

20-200ml/min

0.3-3

(F) 1/8"NPT

±2.5%

30-300ml/min

0.5-5

50-500ml/min

1-10

(F) 1/4"NPT
(F) 1/4"BSP

0.1-1

2-20

0.15-1.5

3-30

0.2-2

5-50

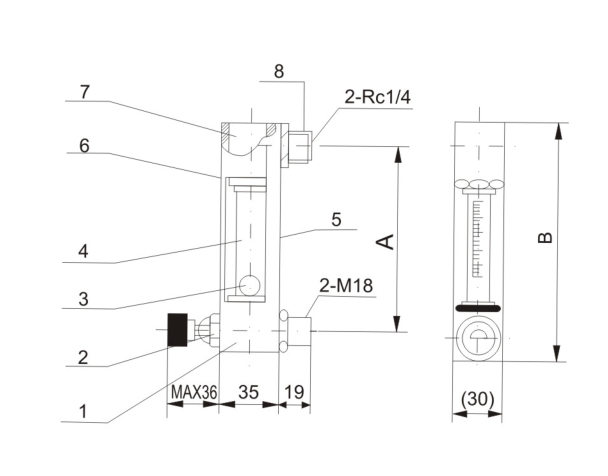

■The material and code of the parts

No

Part Name

Material

Quantity

1

Needle Valve

LY11

2

2

Base

SS304

1

3

Float

SS304 or Agate

1

4

Measure Tube

Borosilicate glass

1

5

Backboard

LY11

1

6

Outer Housing

Acrylic

1

7

Inserts

SS304

1

8

Fittings

SS304

2

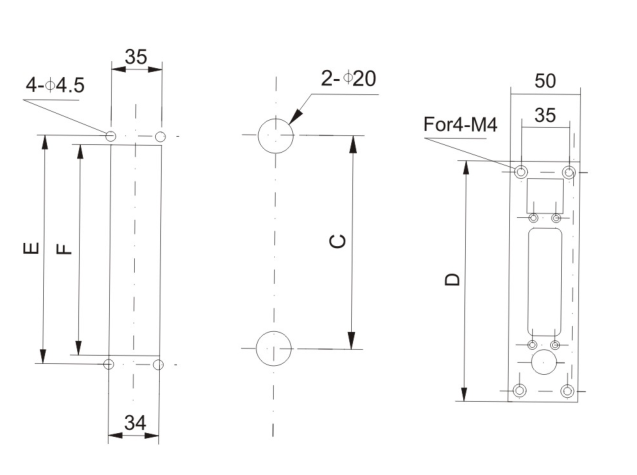

■LZB-DK100/DK200 Dimensions for Installation

Size (mm)

DK100

DK200

A

115

200

B

140

225

C

115

200

D

175

255

E

160

283

F

145

227
