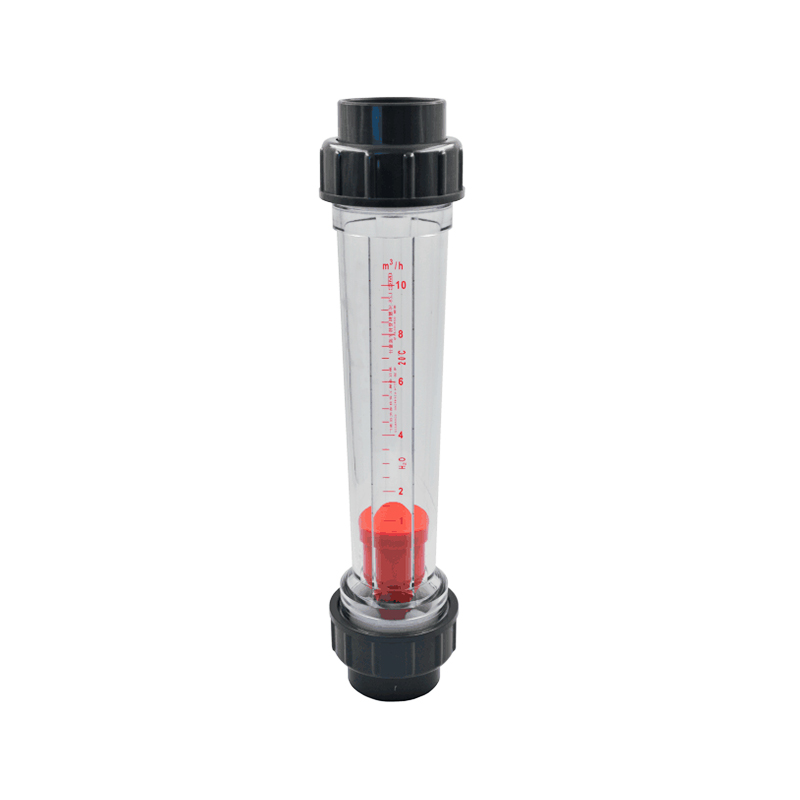

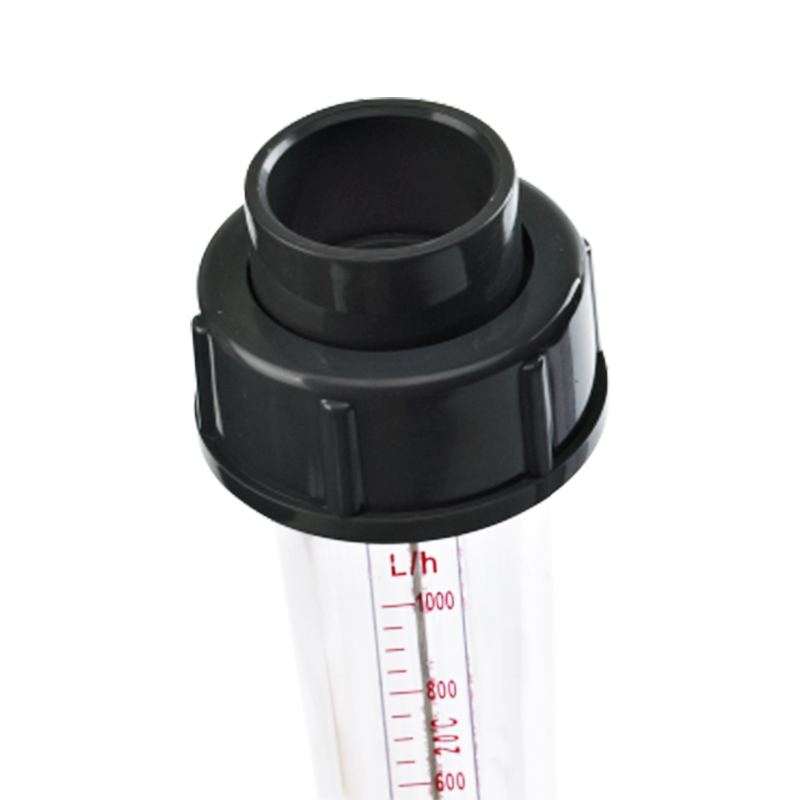

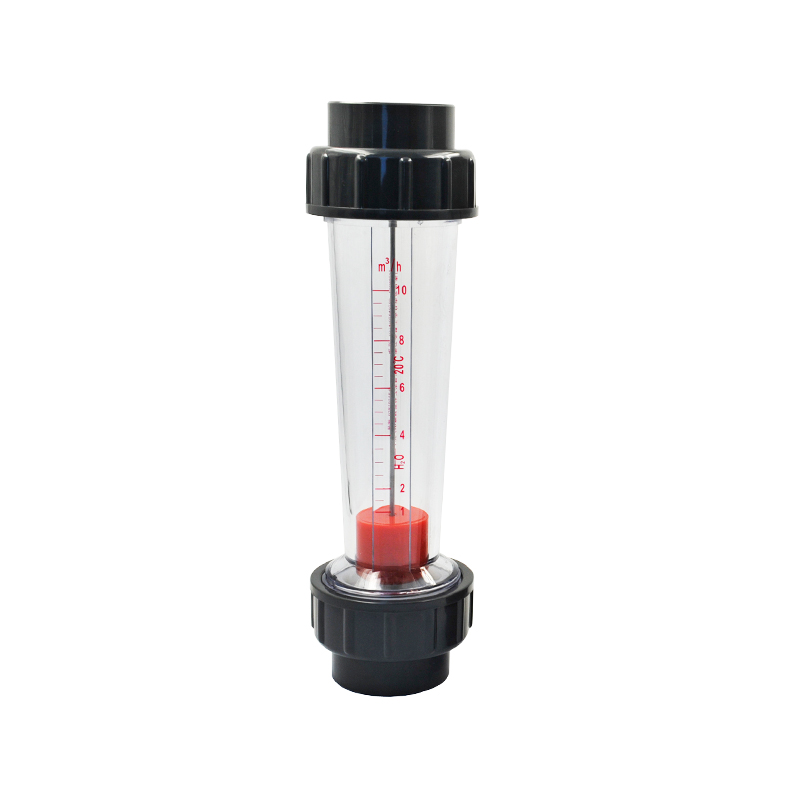

LZS Plastic Tube Type PVC Liquid Flow Meter

The LZS-Durable Plastic Tube Type Rotameter is newly developed according to market need and gained the patent.
Patent No.ZL94208420.9

Product Description

Quick Details

Place of Origin

Zhejiang China

Float material

SS, ABS

Connection

Glue, Thread

Model NO.

LZS -Series

Connection Material

PVC, ABS

Tube material

AS

Medium

Water, Liquid

Customized Support

OEM, ODM, OBM

Diameter

DN15mm-65mm

Accuracy

±4%

Brand Name

ZYIA

Install

Inline

Working Pressure

≤ 0.6 Mpa

Max Temp.

60℃

O-ring

EPDM



Introduce

LZS -Series is a new reformation refer to plastic flow meter. It is characterized by unbreakable. Connection can be thread, glue, we provide variable options to make you easy to install and view.

The LZS-Durable Plastic Tube Type Rotameter is newly developed according to market need and gained the patent, Patent NO.ZL94208420.9



Product Features

1) Simple structure in inline type ,easy in installation and maintation.
2) Chemically resistant molded polycarbonate
3) Capable of withstanding weak chemicals

Construction of LZS-15~LZS-65

1.Joint pipe

2.Screw cap

3.O-ring

4.Upper Stop Plate

5.Scale

6.Taper Tube

7. Float

8.Lower Stop Plate

■Technical Parameters of LZS Series Flow Meter(Glue)

Model

Diameter
(DN)mm

Range

Accuracy

Conditions

Size ( mm )

Suit pipe
DN(mm)

Long Tube Type

Short Tube Type

Tempenture

Mpa

Pressure

Long Tube Type

Short Tube Type

LZS-15

15

10-100l/h

16-160l/h

25-250l/h

40-400l/h

60-600l/h

5-50l/h

10-100l/h

16-160l/h

25-250l/h

40-400l/h

50-500l/h

60-600l/h

100-1000l/h

±4%

0-60

≤0.6

L

D1

D2

D3

L

D1

D2

D3

15/20

200

20

26

45

202

20

26

45

LZS-20

20



60-600l/h

100-1000l/h









231

25

35

45

20/25

LZS-25

25

100-1000l/h

160-1600l/h

250-2500l/h

300-3000l/h

4-40l/min

100-1000l/h

160-1600l/h

250-2500l/h

300-3000l/h

380

32

39

68

226

32

39

60

25/32

LZS-32

32



0.4-4m3/h

0.6-6m3/h

1-10m3/h









288

40

49.5

74

32/40

LZS--40

40

0.4-4m3/h(with leader)

0.6-6m3/h(with leader)

1-10m3/h(with leader)



430

50

63

88









40/50

LZS-50

50

0.4-4m3/h
0.6-6mm3/h
1-10m3/h
1.6-16m3/h(with leader)

1-10m3/h

1.6-16m3/h

430

63

73

98

341

63

73

98

50/65

LZS-65

65



2.5-16m3/h

5-25m3/h

8-40m3/h

12-60m3/h









430

75

88

122

65/75

The material of LZS-part

Taper tube is AS. Pipe, Screw Cap, Setting, Float is of ABS. LZS-C: Long Tube Type; LZS-D: Short Tube Type

Note: Long Tube Type Without Leader, Short Tube Type With Leader


Construction of LZS-15~LZS-65

1.Joint pipe

2.Screw cap

3.O-ring

4.Upper Stop Plate

5.Scale

6.Taper Tube

7.Float

8.Lower Stop Plate

■Technical Parameters of LZS Series Flow Meter(Threaded connection)

Model

Diameter
(DN)mm

Range

Accuracy

Conditions

Size ( mm )

Suit pipe
DN(mm)

Long Tube Type

Short Tube Type


Temperature

Mpa
Pressure

Long Tube Type

Short Tube Type

LZS-15

15

10-100l/h

16-160l/h

25-250l/h

40-400l/h

60-600l/h

5-50l/h

10-100l/h

16-160l/h

25-250l/h

40-400l/h

50-500l/h

60-600l/h

100-1000l/h

±4%

0-60

≤0.6

L

D1

D2

D3

L

D1

02

D3

15

280

1/2"BSP

26

45

202

1/2"BSP

26

45

LZS-25

25

100-1000l/h

160-1600l/h

250-2500l/h

300-3000l/h

100-1000l/h

160-1600l/h

250-2500l/h

300-3000l/h

380

3/4"BSP

39

68

226

3/4"BSP

39

60

25

LZS-32

32



0.4-4m3/h

0.6-6m3/h

1-10m3/h









288

1"BSP

49.5

74

32

LZS-50

50

0.4-4m3/h

0.6-6m3/h

1-10m3/h
1.6-16m3/h (with leader)

1-10m3/h

1.6-16m3/h

430

11/2"BSP

73

98

341

11/2"BSP

73

98

50

LZS-65

65



2.5-16m3/h

5-25m3/h

8-40m3/h

12-60m3/h









430

2"BSP

88

122

65

Note: Long Tube Type Without Leader, Short Tube Type With Leader.
