LZS Series Water Plastic Rotameter Industry Flange Flowmeter

The LZS-Durable Plastic Tube Type Rotameter is newly developed according to market need and gained the patent.

Patent No: ZL94208420.9

Product Description

Quick Details

Place of Origin

Zhejiang China

Float material

SS, ABS

Connection

 Flange

Model NO.

LZS - Flange Series

Connection Material

ABS

Tube Material

AS

Medium

Water, Liquid

Customized Support

OEM, ODM, OBM

Diameter

DN15mm-DN300mm

Accuracy

±4%

Brand Name

ZYIA

Install

Inline

Working Pressure

≤ 0.6 Mpa

Max Temp.

60℃

O-ring

EPDM



Introduce

LZS -Series is a new reformation refer to plastic flow meter. It is characterized by unbreakable. Connection can be thread, glue, flange, we provide variable options to make you easy to install and view.

The LZS-Durable Plastic Tube Type Rotameter is newly developed according to market need and  gained the patent, Patent NO.ZL94208420.9



Product Features

1) Simple structure in inline type ,easy in installation and maintation.

2) Chemically resistant molded polycarbonate

3) Capable of withstanding weak chemicals

4) Easy to read,good high quality.

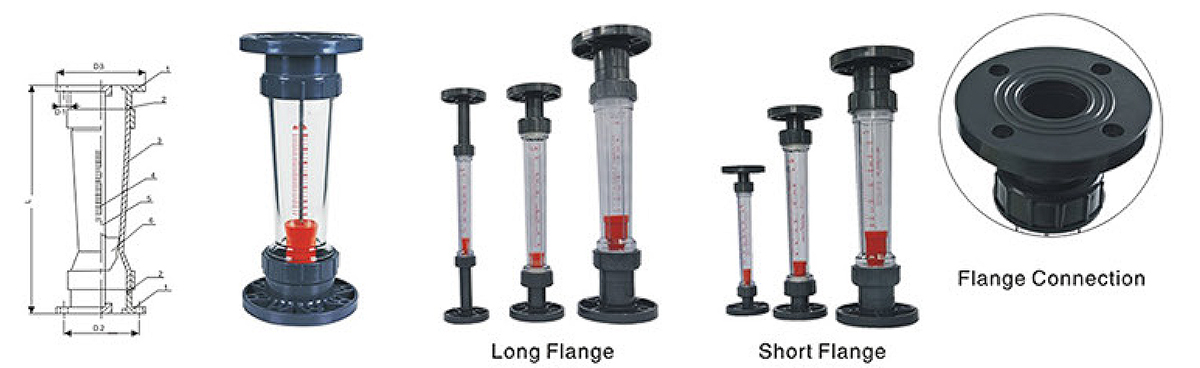

1.Flange

2.O-ring

3.Taper Tube

4.Scale

5.Leader

6.Float

■Technical Parameters of LZS Series Flow Meter (Flange Connection)

Model

Diameter

(DN)mm

Range

Accuracy

Conditions

Size ( mm )

Suit pipe DN(mm)

Long Tube Type

Short Tube Type

Temperature

Mpa

Pressure

Long Tube Type

Short Tube Type

LZS-15

15

10-100l/h

16-160l/h

25-25l/h

40-400l/h

60-600l/h

5-50l/h

10-100l/h

16-160l/h

25-250l/h

40-400l/h

60-600l/h

100-1000l/h

±4%

0-60

≤0.6

L

D1

D2

D3

L

D1

D2

D3

15

320

14

65

95

241

14

65

95

470

LZS-20

15

320

14

75

105

241

14

75

105

20

470

LZS-25

25

100-1000l/h

160-1600l/h

250-2500l/h

100-1000l/h

160-1600l/h

250-2500l/h

432

16

85

115

281

16

85

115

25

470

LZS-32

32



0.4-4m3/h

0.6-6m3/h









355

17

100

140



LZS-40

40

0.4-4m3/h(with leader)

0.6-6m3/h(with leader)

1-10m3/h(with leader)

570

18

110

150

500

18

110

150

40

LZS-50

50

0.4-4m3/h

0.6-6m3/h

1-10m3/h

1.6-16m3/h(with leader)

0.6-6m3/h

1-10m3/h

1.6-16m3/h

520

18

125

165

430

18

125

165

50

570

LZS-65

65



2.5-16m3/h

5-25m3/h

8-40m3/h

12-60m3/h









530

18

145

185

65

LZS-80

65



2.5-16m3/h

5-25m3/h

8-40m3/h

12-60m3/h









540

18

160

200

80

L2S-100

100

14-90m3/h

18-120m3/h

20-150m3/h

25-180m3/h

25-200m3/h

14-90m3/h

18-120m3/h

20-150m3/h

25-180m3/h

25-200m3/h

550

18

180

215

510

18

180

215

100

540

18

180

LZS-125

125

550

18

210

250

510

18

210

250

125

LZS-150

150

560

22

240

280

510

22

240

280

150

The material of LZS-part

Taper tube is AS, Pipe, Screw Cap, Setting, Float is ABS

LZS-C: Long Tube Type, LZS -D: Short Tube Type

Note: Long Tube Type Without Leader, Short Tube Type With Leader
